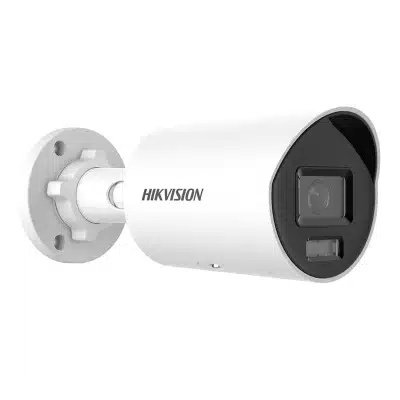

Hikvision 4MP 2.8MM Smart Hybrid Light with Colorvu Fixed Mini Bullet Network Camera

Technical Specifications

Camera

• Image Sensor : 1/1.8" Progressive Scan CMOS
• Max. Resolution : 2688 × 1520
• Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens, 2.8
• Focal Length & FOV : 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
• Lens Mount : M16
• Iris Type : Fixed
• Aperture : F1.0
• Depth of Field : 2.8 mm: 2.5 m to

DORI

• DORI : 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

Illuminator

• Supplement Light Type : IR, White Light
• Supplement Light Range : Up to 40 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
• • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • *The third stream is supported under certain settings.
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
  • *Third stream is supported under certain settings.
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile, Main Profile, High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR, VBR
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
