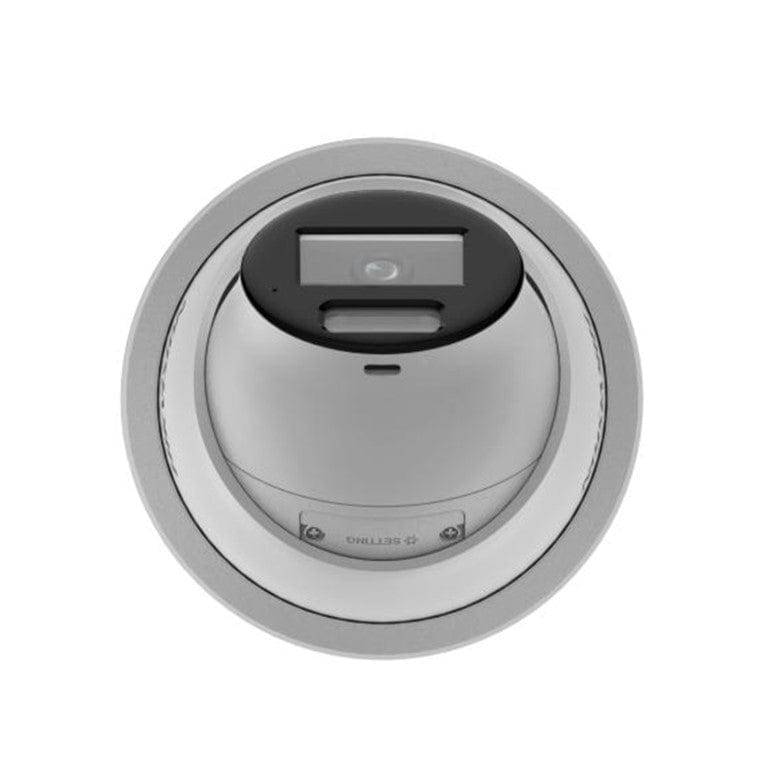

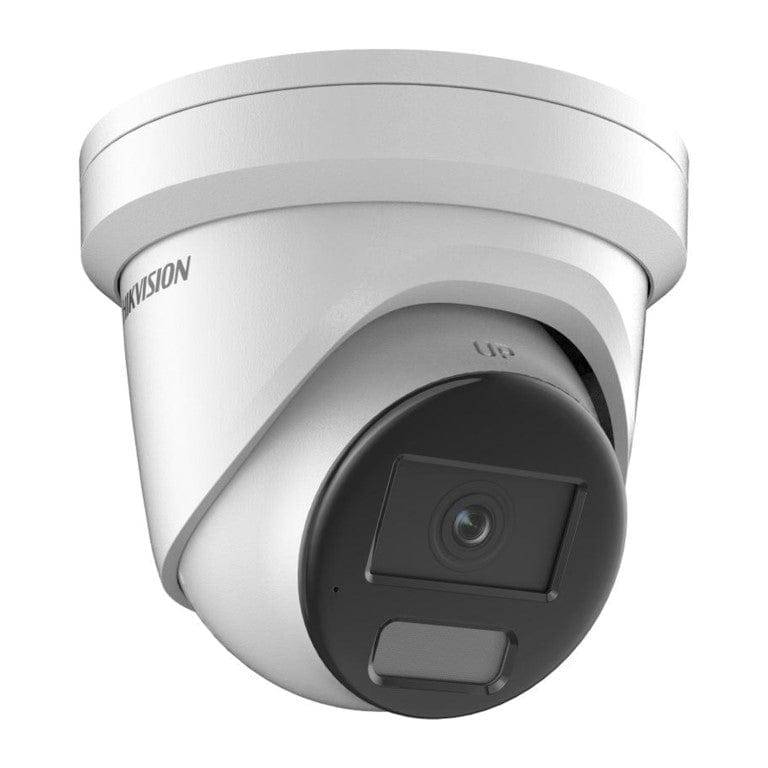

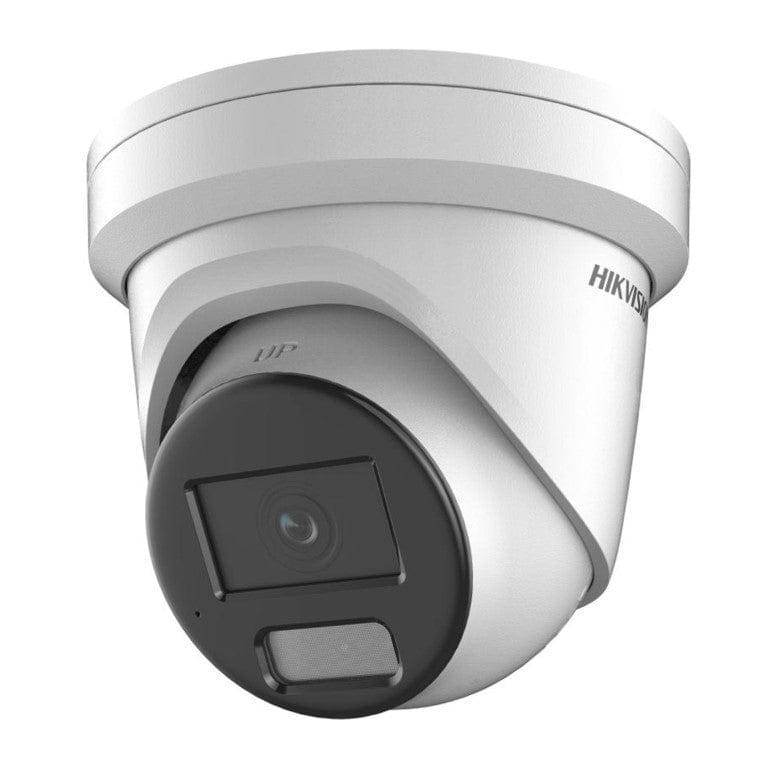

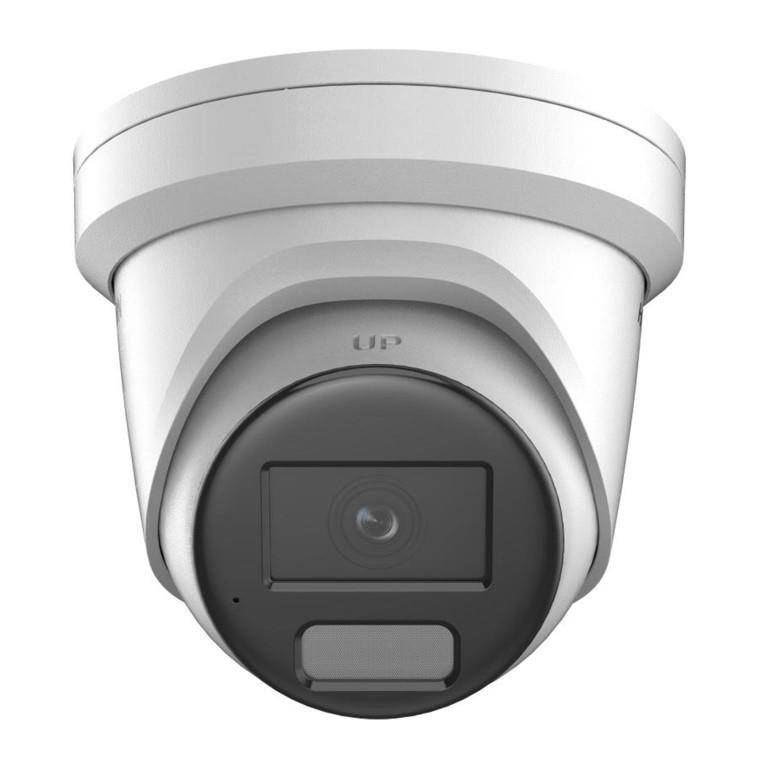

Hikvision 4MP 2.8mm Smart Hybrid Light with ColorVu Fixed Turret Network Camera DS-2CD2347G2H-LIU(2.8mm)
Features
Technical Specifications:
Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux - (F1.0, AGC ON), 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°. 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 2.5 m to , 4 mm: 3.1 m to
DORI
2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360), 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (*supported under certain settings)
Video Compression: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 16—64 Kbps (AAC-LC), 32—192 Kbps (MP2L2), 8—320 Kbps (MP3)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
SNR: 52 dB
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon privacy masks
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: Yes
Reset Key: Yes
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture: Yes
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (Support alarm triggering by specified target types: human and vehicle)
General
Power: 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 6 W
Material: Cover: Metal, main body: Metal
Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight: Approx. 770 g (1.7 lb.)
With Package Weight: Approx. 1040 g (2.3 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019...
