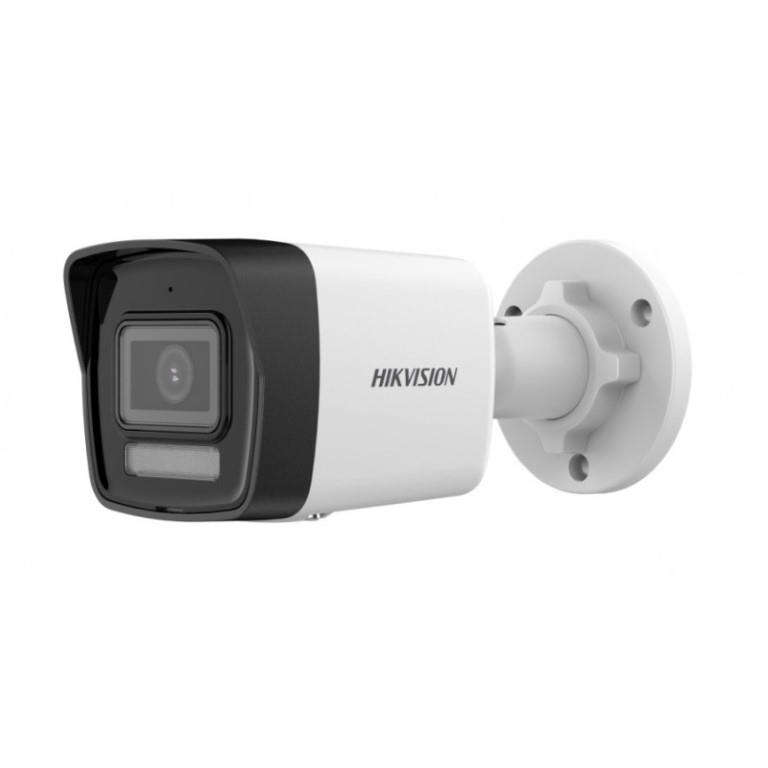

Hikvision 4MP 4mm Hybrid Light Fixed Mini Bullet Network Camera DS-2CD2041G0-LIU(4mm)

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Hikvision 4MP 4mm Hybrid Light Fixed Mini Bullet Network Camera DS-2CD2041G0-LIU(4mm)

Features:

• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology
• 30m IR Illumination
• 850 nm IR Wavelength
• 4mm Fixed Lens
• Horizontal FOV: 78°, Vertical FOV: 42°, Diagonal FOV: 93°
• D: 78 m, O: 31 m, R: 15 m, I: 7 m
• IP67
• 1x RJ45 10/100MB self-adaptive Ethernet port
• 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 6.5 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux - (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:

• 2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
• 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI

• 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
• 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:

• 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Region of Interest (ROI): 1 fixed region for main stream

Audio
Audio Type: Mono sound
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate: 64 Kbps (G.711 ulaw), 64 Kbps (G.711 alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 160 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC)

Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: ISAPI, SDK, Open Network Video Interface (Profile S, Profile T)
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
Client: iVMS-4200, Hik-Connect
Web Browser:

• Plug-in required live view: IE 10, IE 11
• Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR): 120 dB
SNR: 52 dB
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone: Yes

Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage: Send email, notify surveillance center, trigger capture

General
Power:

• 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material: Metal & Plastic
Dimension: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Approx. 270 g (0.6 lb.)
With Package Weight: Approx. 481 g (1.1 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1
Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
