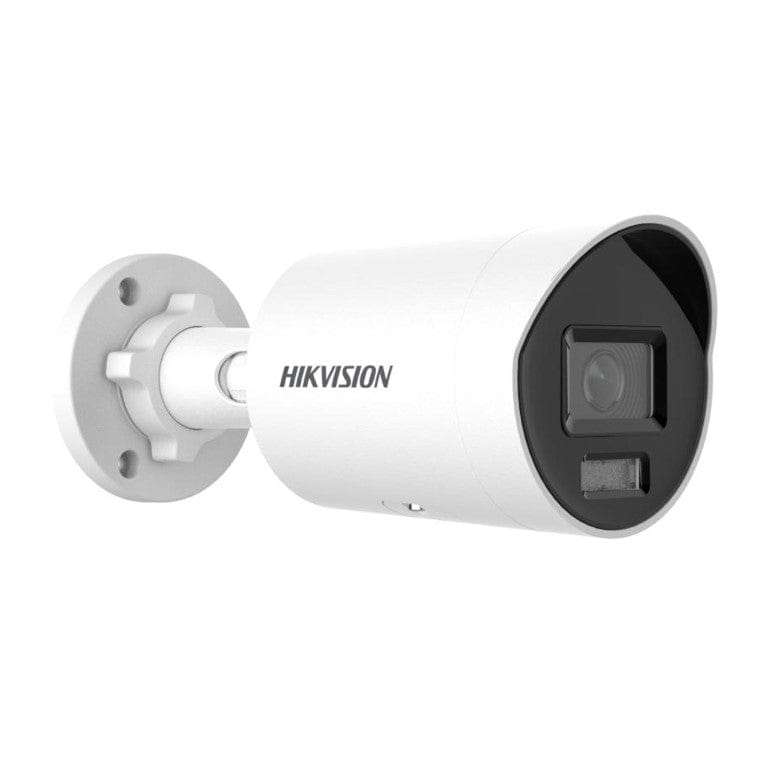

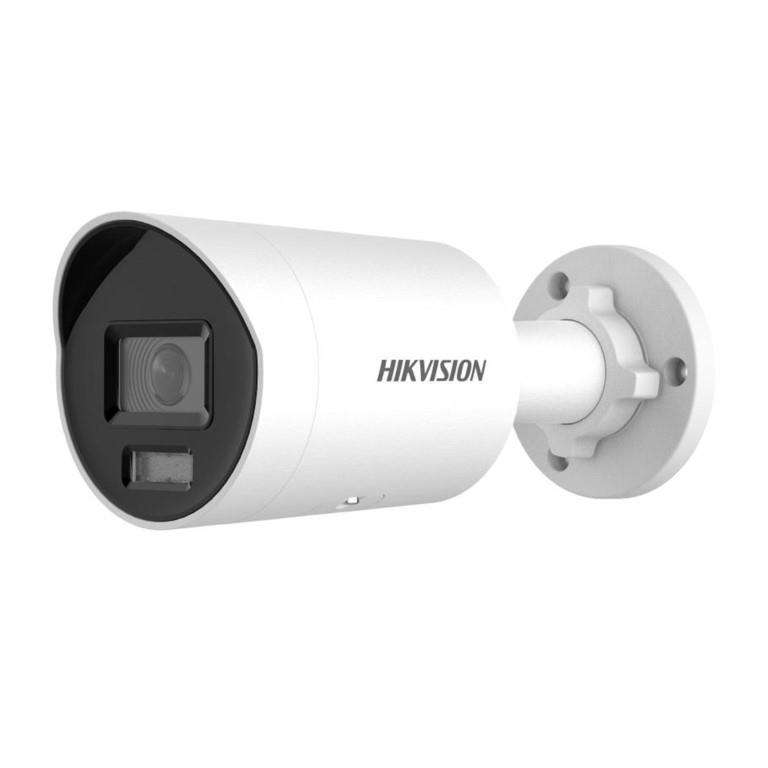

Hikvision 4MP 4mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera DS-2CD2047G2H-LI(4mm)

Features

• High quality imaging with 4 MP resolution
• 1/1.8" Progressive Scan CMOS Image Sensor
• 2688 x 1520 Max. Resolution
• 4 mm Fixed Lens
• Horizontal FOV 89.2°, Vertical FOV 45.5°, Diagonal FOV 108.2°
• D: 75 m, O: 30 m, R: 15 m, I: 7 m
• IR, White Light Supplement Light Type
• Smart Hybrid Light: advanced technology with long range
• Up to 40 m
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67)
• 1x RJ45 10 M/100 M self-adaptive Ethernet port
• 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection or PoE: IEEE 802.3af, Class 3, max. 7 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.001 Lux - (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0°—360°, Tilt: 0°—90°, Rotate: 0°—360°

Lens
Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV:

• 2.8 mm: H 100.2°, V 54.7°, D 119.7°
• 4 mm: H 81.1°, V 44.7°, D 94.6°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth of Field:

• 2.8 mm: 1.9 m to
• 4 mm: 2.5 m to

DORI:

• 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m
• 4 mm: D 78 m, O 31 m, R 15 m, I 7 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: 2I: up to 60 m; 4I: up to 80 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Third stream supported under certain settings.

Video Compression:

• Main stream: H.265 / H.264 / H.265+ / H.264+
• Sub-stream: H.265 / H.264 / MJPEG
• Third stream: H.265 / H.264

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline / Main / High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR / VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main and sub-stream

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: ONVIF (PROFILE S, G, T), ISAPI, SDK
User/Host: Up to 32 users; 3 levels: administrator, operator, user
Security: Password protection, HTTPS encryption, IP filter, Security Audit Log, basic/digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication

Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Hikvision memory card support, encryption and health detection supported

Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE 10/11 (plug-in required), Chrome 57+, Firefox 52+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable via client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 4 programmable polygon masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive
On-Board Storage: MicroSD / microSDHC / microSDXC up to 512 GB
Reset Key: Yes

Event
Basic Event: Motion detection (human/vehicle), video tampering alarm, exception
Smart Event: Scene change detection
Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording/capture, send email
Deep Learning Function: Face Capture: Yes
Perimeter Protection: Line crossing, intrusion, region entrance/exit; supports alarm by human/vehicle

General
Power:

• 2I: 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
• 4I: 12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12 W

Material: Front cover, body, bracket: Metal
Dimension: 286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight: Approx. 1085 g (2.4 lb.)
With Package Weight: Approx. 1639 g (3.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% non-condensing
Startup/Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% non-condensing
Language: 33 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Trad...
