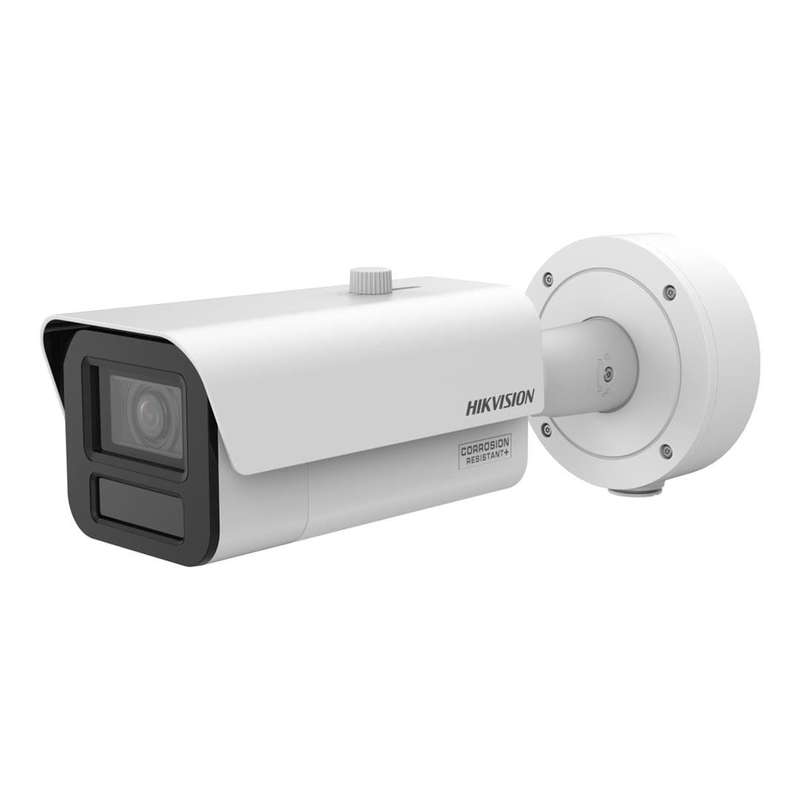

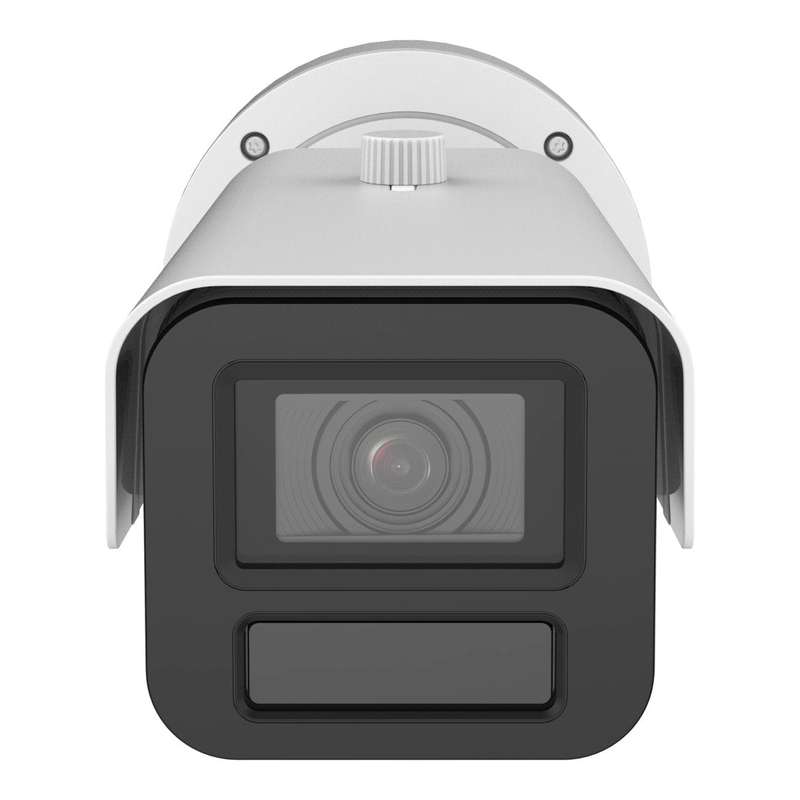

Hikvision 4MP 6-132mm DeepinView Motorized Varifocal Bullet Camera iDS-2CD7A46G2-IZHSY(6-132mm)
Features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X)
- Capture vehicles and humans of different speed clearly via ShotN technology
- High frame rate, up to 2MP-120fps and 4MP-60fps
- Built-in heater to ensure clear image under rainy or snowy weather
- Built-in Gyro sensor for GIS and vibration detection
- Built-in power meter for historical power statistics
Technical Specification
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Focal Length: 6 to 132 mm
FOV: Horizontal FOV 59.5° to 3.7°, Vertical FOV 35.9° to 2.1°, Diagonal FOV 66.5° to 4.3°
Focus: Auto,Semi-auto,Manual
Supplement Light Type: IR
Supplement Light Range: Monitoring: 200 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Mobile Communication: Not supported
Integrated Connector Panel (-Y model): No
Alarm: 2x inputs, 2x outputs (max. 24 VDC/24 VAC, 1 A)
Audio
- 1x input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium,
- 1x output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 , interface type: non-equilibrium, mono sound
RS-485: 1x RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Video Output: 1x Vp-p Composite Output (75 /CVBS) (Only for debugging)
Ethernet Interface: 1x RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Power
- Two-core terminal block
- 12 VDC ± 20%, 1.88 A, max. 22.56 W
- PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
- Please note: Power supply is not included
