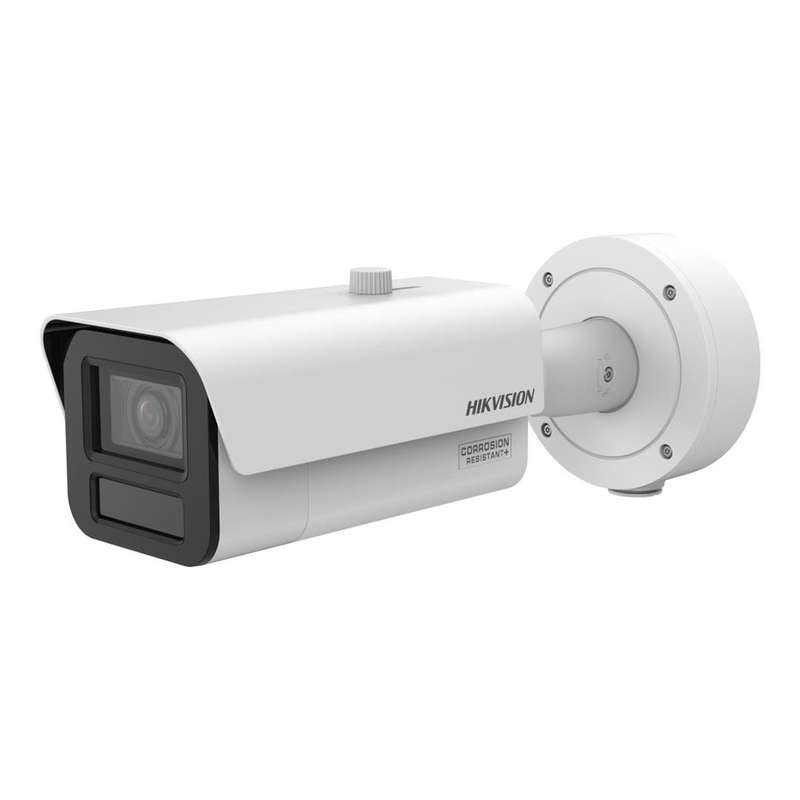

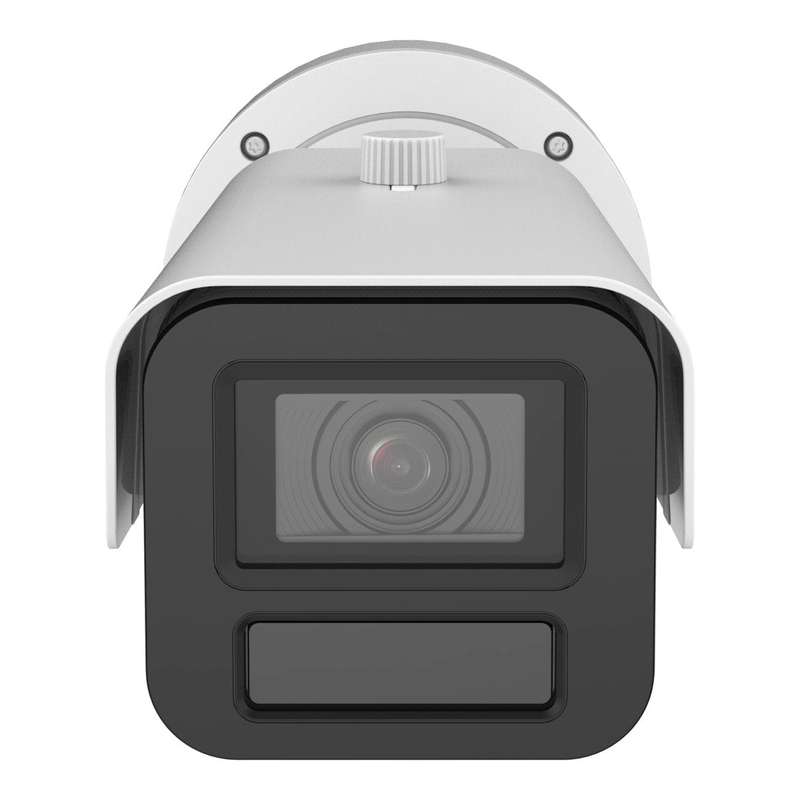

Hikvision 4MP 8-32mm DeepinView Motorized Vari-focal Bullet Network Camera iDS-2CD7A46G2-IZHSY(8-32mm)
Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.
Face Capture
With embedded deep learning based algorithms, the camera is able to give the best shot of a target face through detecting, capturing, grading and selecting. The camera uses face exposure function to dynamically adjust face area exposure of captures and ensures high face picture quality.
Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera carries out the duty of perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out the mistaken alarm caused by the interference of leafs, lights, animal, flag, etc.
Multi-Target-Type Detection
With the embedded deep learning algorithms, the camera detects and captures the face, human body, vehicle in the specified region.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. It can generate reports to compare the efficiency of different queuing-ups and display the changing status of one queue, and supports raw data export for further analysis.
Regional People Counting
With the embedded deep learning algorithms, the camera supports people density detection and will upload detection data through scheduled uploading, number of people change uploading and congestion level uploading. It also supports number of people exception detection and waiting time exception detection.
On/Off Duty Detection
With the embedded deep learning algorithms, the camera supports absence detection and on/off duty detection. It can detect the on/off duty status and people number changes in a predefined area.
Heat Map
The camera can generate a graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.
Multi-Dimension People Counting
With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and compares them with the built-in face picture library to remove duplicates. It counts persons and reports an alarm simultaneously to achieve both the entrance control and people counting.
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and reports an alarm if not.
Features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Capture vehicles and humans of different speed clearly via ShotN technology
- High frame rate, up to 2MP-120fps and 4MP-60fps
- Built-in heater to ensure clear image under rainy or snowy weather
Technical Specification
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 x 1520
Focal Length: 8 to 32 mm
FOV: Horizontal FOV 42.5° to 15.2°, Vertical FOV 23.4° to 8.7°, Diagonal FOV 49.7° to 17.3°
Focus: Auto, Semi-auto, Manual
Iris Type: P-iris
DORI
- Wide: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m
- Tele: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m
Supplement Light Type: IR
Supplement Light Range: 100 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video Output: 1x Vp-p Composite Output (75 /CVBS) (Only for debugging)
Ethernet Interface: 1x RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Alarm: 2x inputs, 2x outputs (max. 24 VDC/24 VAC, 1 A)
Audio
- 1x input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium
- 1x output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 , interface type: non-equilibrium, mono sound
RS-485: 1x (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
Power Output: Three-core terminal block, 12 VDC ± 20%, 1.88 A, max. 22.56 W, 24 VAC ± 20%, 1.57 A, max. 21.5 W or PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
- Please note: Power supply is not included
