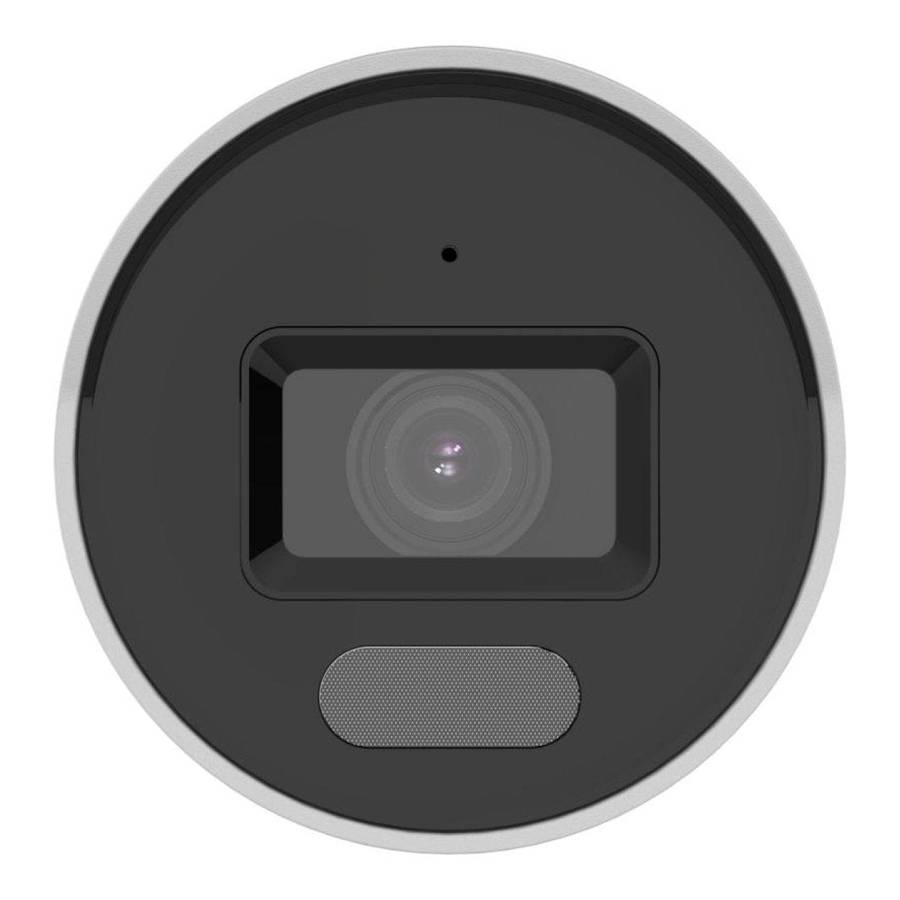

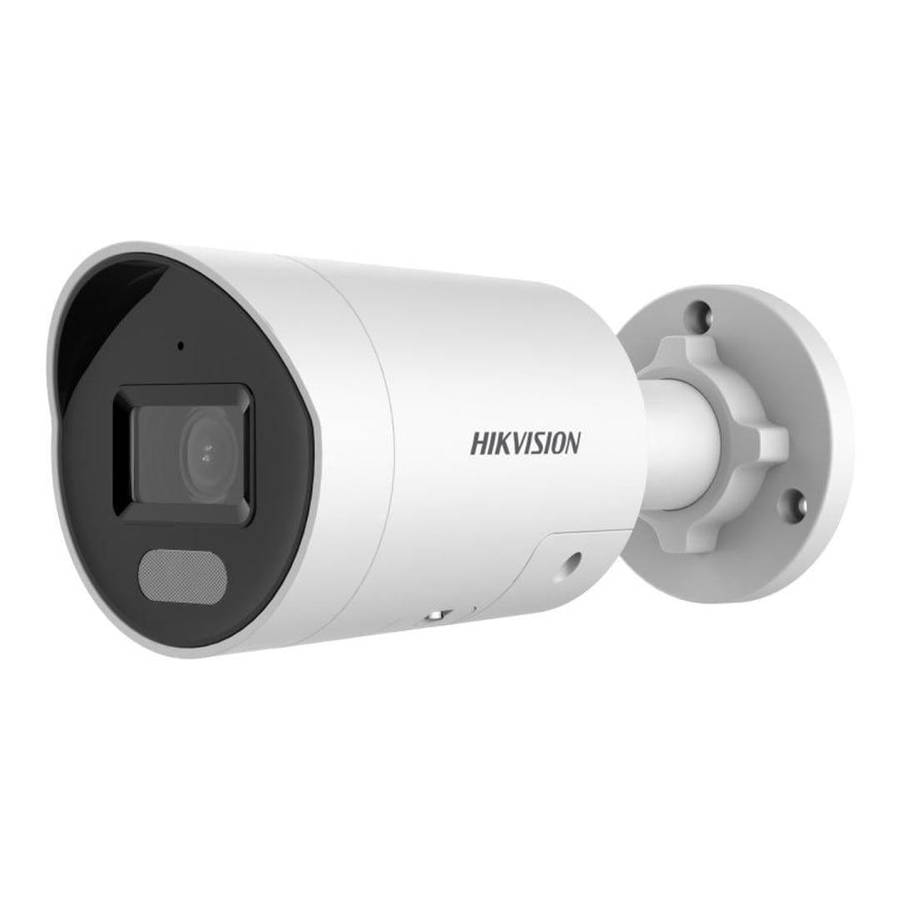

Hikvision 4MP AcuSense Strobe Light and Audible Warning Fixed Mini Bullet Network Camera
Feature:
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 4 MP resolution
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Smart Hybrid Light: advanced technology with long range
- Focus on human and vehicle classification based on deep learning
- Provide real-time security via built-in two-way audio
- Support on-board storage up to 512 GB (SD card slot)
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
Technical Specifications:
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.001 Lux - (F1.0, AGC ON), 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV: 2.8 mm (Horizontal 100.2°, Vertical 54.7°, Diagonal 119.7°); 4 mm (Horizontal 81.1°, Vertical 44.7°, Diagonal 94.6°)
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 1.9 m to ; 4 mm: 2.5 m to
DORI
2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
HEOP
Memory: 60 MB; Smart RAM: 400 MB; eMMC: 2 GB
Computing Power: 1.5 TOPS
Open Capability: HEOP 2.0 OpendevSDK
Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming Language: C, C++
Video
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps; 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream: 50 Hz: 10 fps; 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264; Fourth: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding: H.264 and H.265 encoding
Region of Interest (ROI): 5 fixed regions for main and sub-streams
Target Cropping: Yes
Audio
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Type: Mono
Audio Bit Rate: 64 Kbps (G.711u/a), 16 Kbps (G.722.1), 16 Kbps (G.726), 32—192 Kbps (MP2L2), 8—320 Kbps (MP3), 16—64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, SRTP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
User/Host: Up to 32 users (3 levels: administrator, operator, user)
Security: Password protection, HTTPS encryption, 802.1X, watermark, IP filter, TLS 1.1/1.2/1.3, MAC authentication, security audit log
Network Storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card support with encryption and health check
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ (plug-in free)
Image Parameters Switch: Yes
Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client or browser)
Day/Night Switch: Day, Night, Auto, Schedule
Enhancements: BLC, HLC, 3D DNR, Defog
SNR: 52 dB
Wide Dynamic Range: 130 dB
Privacy Mask: 4 programmable polygon masks
Interface
Ethernet: 1 × RJ45 10/100 Mbps self-adaptive port
On-Board Storage: MicroSD/SDHC/SDXC card up to 512 GB
Built-in Microphone: Yes (1 microphone)
Built-in Speaker: Max. 1.2 W, SPL 95 dB - 10 cm
Reset Key: Yes
Events
Basic: Motion detection (human/vehicle), tampering, exception
Linkage: Upload to FTP/NAS/memory, notify center, email, alarm output, recording, capture, audible warning, strobe light
Smart: Scene change, audio exception, defocus, unattended baggage, object removal
Deep Learning Functions
Face Capture: Yes
People Counting: Yes
Perimeter Protection: Line crossing, intrusion, region entrance/exit (with human/vehicle detection)
General
Power: 12 VDC ± 25%, 0.7 A (max. 8.5 W), PoE IEEE 802.3af Class 3 (max. 10 W)
Material: Metal (front cover, body, bracket)
Dimension: Ø74.4 × 179.2 mm (Ø2.9 × 7.1 in)
Package Dimension: 234 × 120 × 117 mm (9.2 × 4.7 × 4.6 in)
Weight: 525 g (1.2 lb), with package 750 g (1.7 lb)
Storage Conditions: -30 °C to 60 °C, 95% RH (non-condensing)
Operating Conditions: -30 °C to 60 °C, 95% RH (non-condensing)
Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language: 33 supported (English, Russian, German, Chinese, Japanese, etc.)
Approval
EMC: CE-EMC EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM AS/NZS CISPR 32:2015; IC: ICES-003 Issue 7
Safety: UL 62368-1, IEC/EN 62368-1:2014+A11, EN 62368-1:2014/A11:2017, BIS IS 13252 (Part 1), IEC/EN 60950-1
Environment: CE-RoHS 2011/65/EU
Protection: IP67 (IEC 60529-2013)
