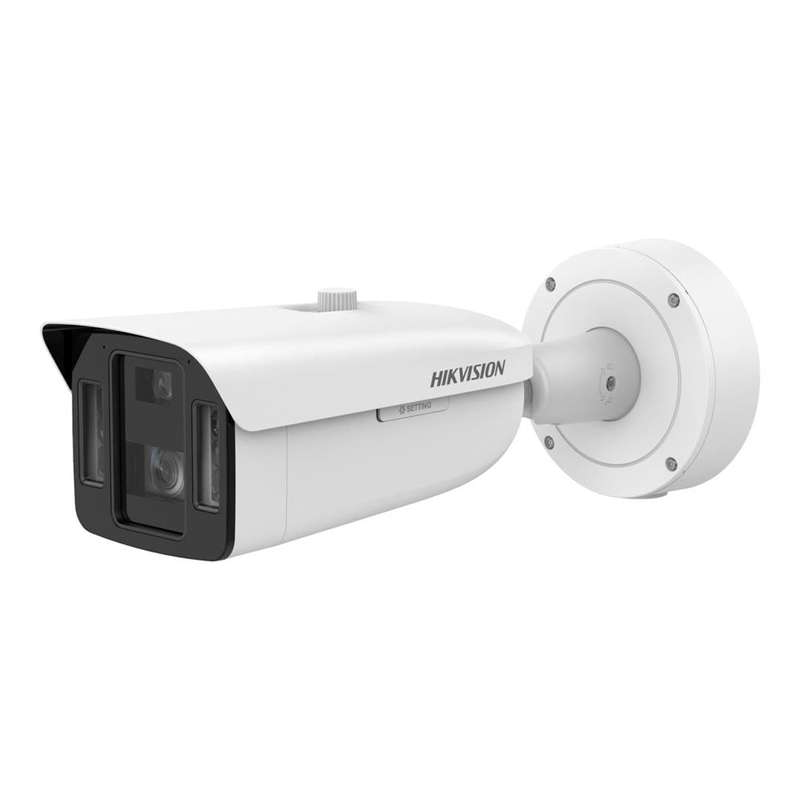

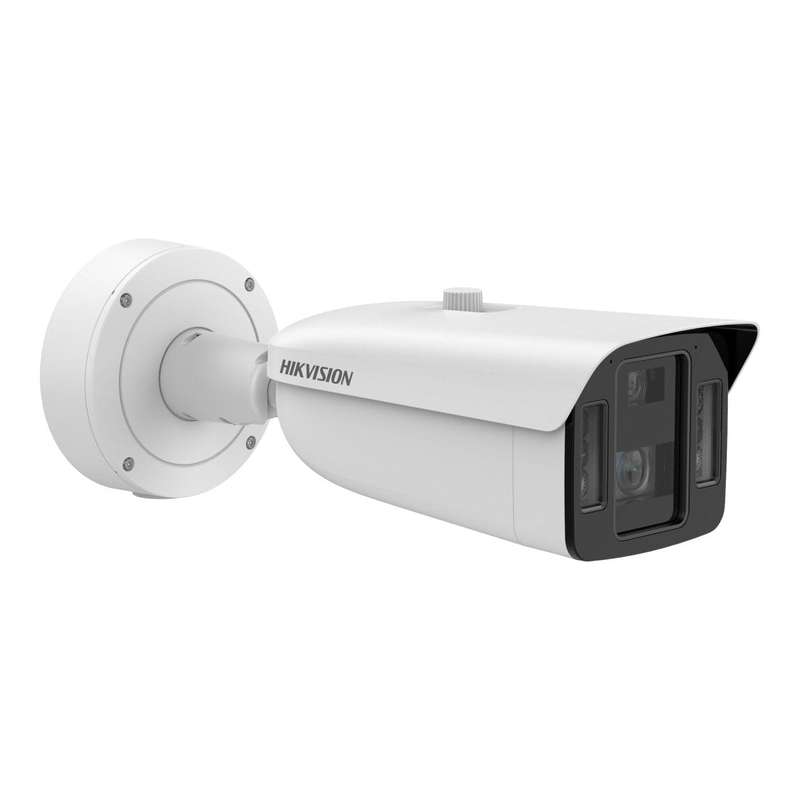

Hikvision 4MP DeepinView Multi-Sensor Bullet Camera iDS-2CD8A46G2-XZHSY(0832/4)
Features
- High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2
- Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Capture vehicles and humans of different speed clearly via ShotN technology
- License plate recognition and vehicle attribution recognition
- Water and dust resistant (IP67) and vandal proof (IK10)
- Anti-Corrosion Protection -Y model: NEMA 4X (NEMA 250-2018)
Technical Specification
Image Sensor
- Channel 1: 1/1.8" Progressive Scan CMOS
- Channel 2: 1/1.8 Progressive Scan CMOS
Max. Resolution
- Channel 1: 2688 × 1520
- Channel 2: 2688 × 1520
Focal Length & FOV
- Channel 1: 8 to 32 mm: Horizontal FOV 42.5° to 15.2°, Vertical FOV: 23.4° to 8.7°, Diagonal FOV 49.7° to 17.3°
- Channel 2: 4 mm: Horizontal FOV: 89°, Vertical FOV: 45°, Diagonal FOV: 107°
Iris Type
- Channel 1: P-iris
- Channel 2: Fixed
DORI
Channel 1
- Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
- Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Channel 2
- D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
Supplement Light Type: Hybrid (IR and White Light)
Supplement Light Range
- Channel 1: up to 100 m
- Channel 2: up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Alarm: 2x inputs, 2x outputs (max. 24 VDC, 1 A)
Built-in Microphone: 2x built-in microphones
Audio
- 1x input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium,
- 1x output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 , interface type: non-equilibrium, mono sound
Built-in Speaker: 1x built-in speaker
RS-485: 1x RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Wiegand: 1x Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
Video Output: 1X Vp-p Composite Output (75 /CVBS) (Only for debugging)
Ethernet Interface: 1X RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Power
- Three-core terminal block
- 12 VDC ± 20%, 1.89A, max. 22.6 W
- 24 VAC ± 20%, 1.48 A, max. 22.2 W
- PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W
- Please note: Power supply is not included
