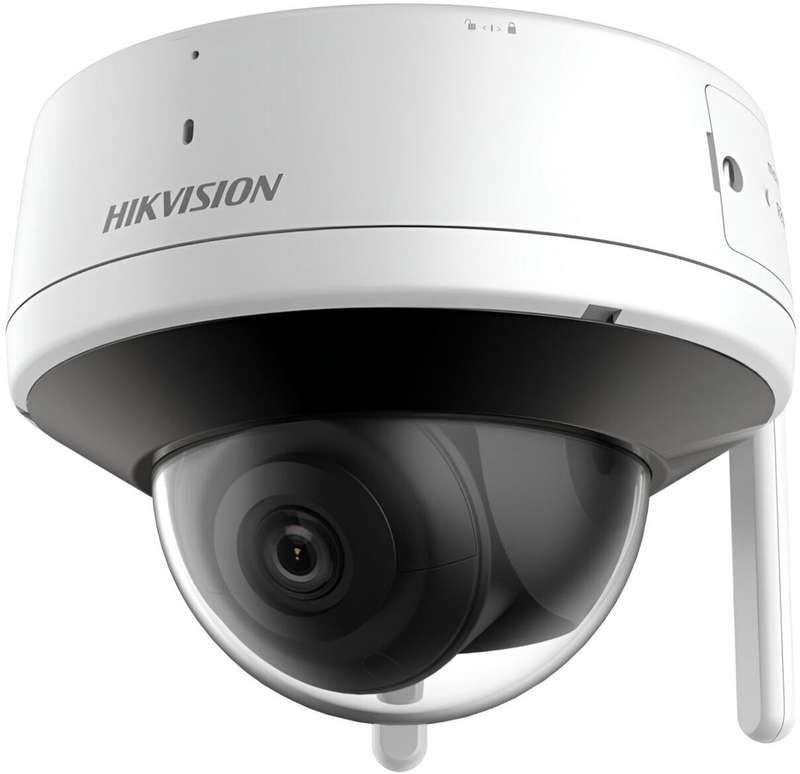

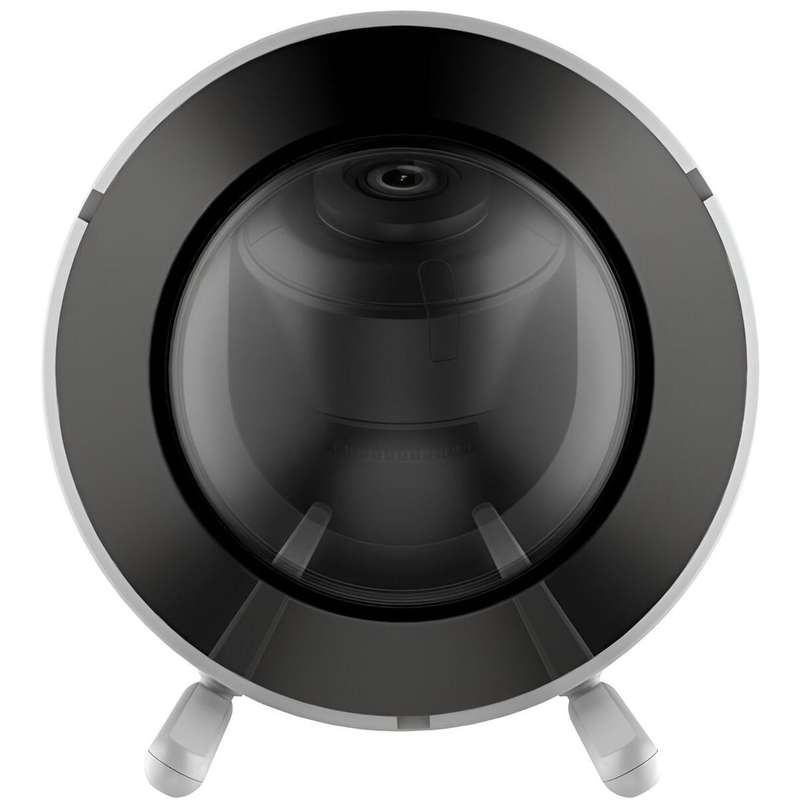

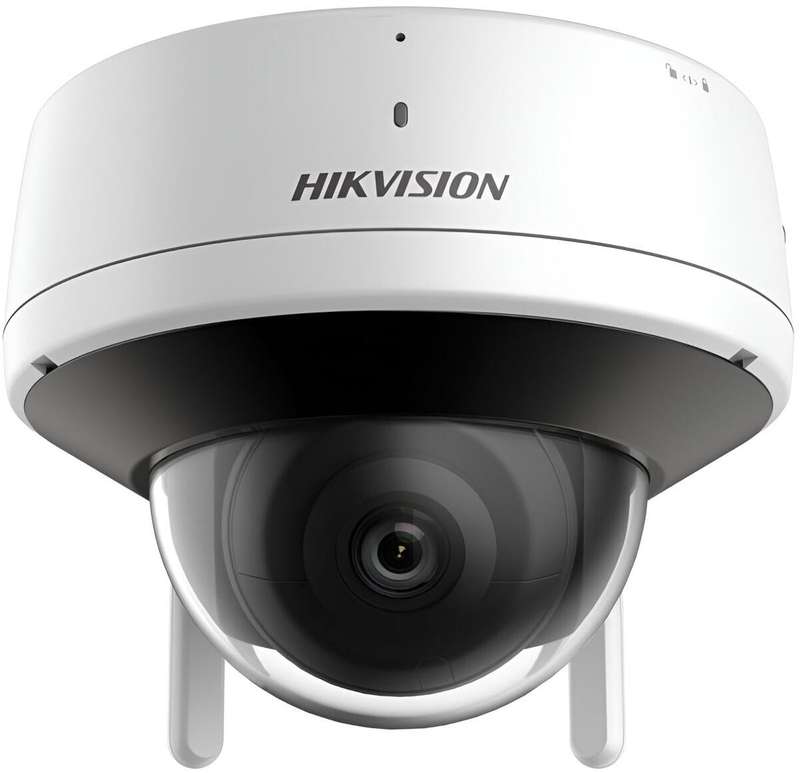

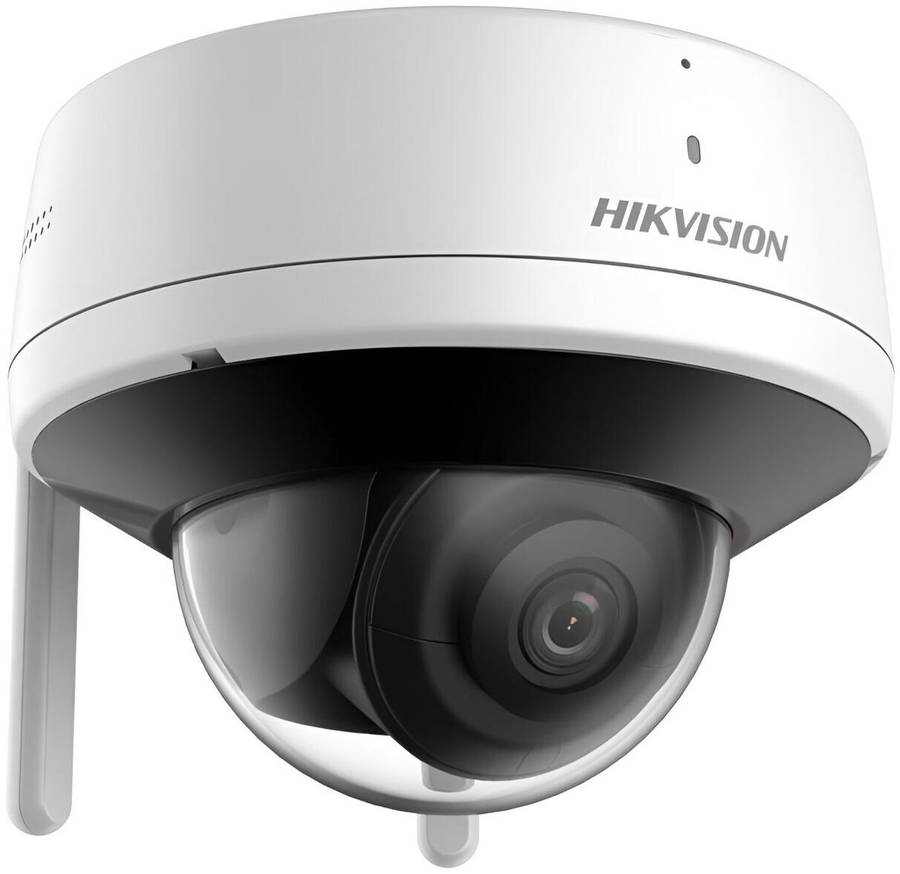

Hikvision 4MP Fixed Dome Outdoor Security IP Camera with 2.8mm Lens, 2560x1440 (4MP) maximum Resolution, IR up to 30m, Up to 6 channels simultaneous live View, H.264 Video Compression, Wi-Fi 2.4GHz, 2 antennas, 120 dB wide Dynamic range (WDR), BLC, 3D DNR, Built-In Microphone, Built-In Speaker, Supports MicroSD cards up to 512GB, 1 x RJ45 10M/100M Self-Adaptive Ethernet Port, Motion Detection
Overview:
Enhance your security with the Hikvision Fixed Dome Outdoor Security Camera, designed for homes, businesses, and surveillance professionals seeking a reliable, high-definition security solution. With its 4MP resolution and advanced EXIR 2.0 infrared technology, this camera delivers clear, detailed images even in low-light conditions, ensuring round-the-clock monitoring.
Seamlessly connect via Wi-Fi for a hassle-free installation, eliminating the need for complex wiring. The built-in two-way audio allows real-time communication, making it ideal for remote monitoring of homes, offices, retail stores, or warehouses. With H.265 video compression, the camera reduces bandwidth usage and storage requirements without compromising image quality.
Designed to withstand harsh environments, this dome camera is IP66-rated, providing resistance against water and dust. The adjustable viewing angles ensure flexible coverage for different monitoring needs. For added security, the built-in microSD card slot supports up to 512GB of local storage, ensuring your footage is always accessible.
Compatible with Hik-Connect, iVMS-4200, and major security platforms, this camera offers remote access from anywhere, allowing users to monitor live feeds and receive alerts in real-time. Whether you're safeguarding your home or managing a security network for a business, the Hikvision Fixed Dome Outdoor Security Camera is a powerful, feature-packed surveillance solution.
Features:
High-quality imaging with 4 MP resolution
Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
Efficient H.265 compression technology
EXIR 2.0, advanced infrared technology with long IR distance
Water and dust resistant (IP66)
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
WHAT'S IN THE BOX:
Hikvision Fixed Dome Outdoor Security Camera, 2.8mm Lens, 4MP x1
User Manual x1
Specifications:
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 x 1440 (4MP)
Min. Illumination Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
Shutter Time 1/3 s to 1 / 10,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Lens
Lens Type Fixed focal lens (2.8mm)
Focal Length & Field of View (FOV) Horizontal FOV 95°, Vertical FOV 53°, Diagonal FOV 111°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 2.8mm: 1.4m to
DORI
2.8mm Detection (D): 63m, Observation (O): 25m, Recognition: 12m, Identification: 6m
Illuminator
Supplement Light Type IR
IR Wavelength 850nm
Supplement Light Range Up to 30m
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 20 fps (2560 x 1440), 25 fps (1920 x 1080, 1280 x 720), 60 Hz: 20 fps (2560 x 1440), 30 fps (1920 x 1080, 1280 x 720
Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360), 60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Video Compression Main Stream: H.264 Sub-Stream: H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
Audio
Audio Compression G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8kHz / 16kHz
Environment Noise Filtering Yes
Network
Protocols Supported TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Client Hik-Connect (Wired), iVMS-4200 (Wireless)
Security Features Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
Wi-Fi
Transfer Rate 11n: up to 300 Mbps
Wi-Fi Protocols IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.472 GHz
Channel Bandwidth 20 MHz
Modulation 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
Wireless Range Up to 120m (varies based on environment)
Antenna 2 antennas
Image Settings Rotate mode, saturation, brightness, contrast, sharpness
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
SNR 52 dB
Image Enhancement BLC, 3D DNR
Interface
Built-in Microphone Yes
Built-in Speaker Yes
On-Board Storage Supports microSD/microSDHC/microSDXC cards (up to 512GB)
Reset Key Yes
Ethernet Interface 1 x RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Events Motion detection (human and vehicle classification), exception alerts
Linkage Methods Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
General
Power Supply 12V DC ±10%, 0.5A, max. 6W, ?5.5mm coaxial power plug, reverse polarity protection
Operating Temperature -30°C to 60°C (-22°F to 140°F), Humidity 95% (non-condensing)
Storage Temperature -30°C to 60°C (-22°F to 140°F), Humidity 95% (non-condensing)
Material Base: Metal, Front Cover: Polycarbonate, Back Cover: Polycarbonate
Dimensions ?12.6 x 9.61 cm
Weight Approx. 590g
Certifications & Compliance
EMC Compliance FCC SDoC (47 CFR Part 15, Subpart B) , CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014)
IC VoC (ICES-003 Issue 6, 2016) , KC (KN 32: 2015, KN 35: 2015)
RF Compliance FCC ID (FCC Part 15.247(BT or 2.4G)) , IC ID (RSS-247(BT or 2.4G)) , CE-RED (EN 301489-1 V2.1.1(BT or 2.4G) , EN 301489-17 V3.1.1(BT or 2.4G) , EN 300328
V2.1.1(BT or 2.4G) , EN 62311 2008(BT or 2.4G)) , MIC (JPN)
Safety Compliance UL (UL 60950-1)
CB (IEC 60950-1 2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
CE-LVD (EN 60950-1 2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
CE-LVD (EN 62368-1 2014/A11:2017)
Environmental Compliance CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 WEEE (2012/19/EU)
Protection Rating IP66 (IEC 60529-2013)
