Kits Incudes
1 x Hikvision DS-7732NI-I4/16PEmbedded Plug & Play 4K NVR

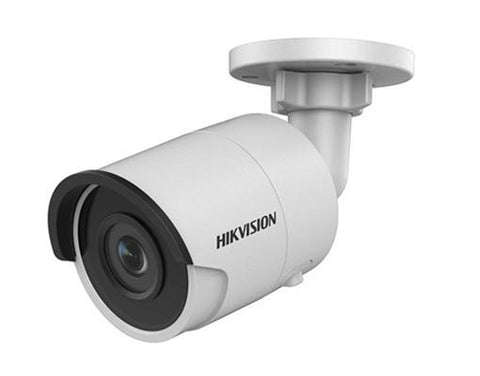

16 x Hikvision 4MP IP Bullet camera, 30m IR
1 x 6TB Hard drive
1 x 300m Cat5E cable
Hikvision 2 line, 4mm lens, H.265+/H.265/H.264+/H.264/MJPEG; Powered by
Darkfighter technology,with IR,); VCA functions; 3 streams; 3D DNR; BLC; ICR; EXIR
2.0, up to 30m; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot; HIK-Connect cloud
service
- 1/2.5" Progressive Scan CMOS
- 2688 1520 @30fps
- 4 mm fixed lens
- H.265, H.265+, H.264+, H.264
- 4 Behavior analyses
- 120dB WDR
- Powered by Darkfighter
- BLC/3D DNR/ROI/HLC
- IR range: up to 30 m
- Bulit-in microSD/SDHC/SDXC card slot, up to 128 GB
- IP67

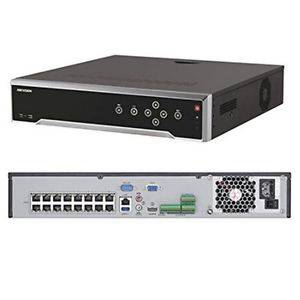

Hikvision 32ch Embedded Plug & Play 4K NVR up to 12MP, 16 POE
DS-7732NI-I4/16PEmbedded Plug & Play 4K NVR
Third-party network cameras supported
Up to 12 Megapixels resolution recording
Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)
resolution
32-ch network cameras can be connected with
160M/256M incoming bandwidth
Up to 4 SATA interfaces
Plug & Play with up to 16 independent PoE network
interfaces
Support dual-os to ensure high reliablility of system
running
Support various VCA detection alarm and VCA search
Support H.265/H.264/MPEG4 video formats
| Video/Audio Input |
|---|
| Two-way audio input: | | 1-ch, RCA (2.0 Vp-p, 1k) |
| IP video input: | | 32-ch |
| Network |
|---|
| Remote connection: | | 128 |
| Incoming bandwidth: | | 256Mbps |
| Outgoing bandwidth: | | 256Mbps |
| Video/Audio Output |
|---|
| HDMI Output: | | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | | 1-ch, RCA (2.0Vp-p, 1K) |
| Synchronous Playback: | | 16-ch |
| VGA Output: | | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding |
|---|
| Capability: | | 4-ch@8MP,16-ch@1080P |
| Live view / Playback: | | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Hard Disk |
|---|
| SATA: | | 4 SATA interfaces for 4HDDs |
| Capacity: | | Up to 6TB capacity for each HDD |
| External Interface |
|---|
| Network Interface: | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Serial Interface: | | RS-232; RS-485; |
| USB Interface: | | Front panel: 2 USB 2.0
Rear panel: 1 USB 3.0 |
| Alarm In: | | 16-ch |
| Alarm Out: | | 4-ch |
| POE |
|---|
| Supported Standard: | | AF and AT |
| Interface: | | 24 independent 10/100 Mbps PoE Ethernet interfaces |
| Max. Power: | | 200W |
| General |
|---|
| Power Supply: | | 100 to 240 VAC |
| Consumption(without hard disk and POE): | | 20 W |
| Working Temperature: | | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity: | | 10 % ~ 90 % |
| Chassis: | | 19-inch rack-mounted 1.5U chassis |
| Dimensions: | | 445 390 70 mm (17.5" 15.3" 2.8") |
| Weight(without HDD): | | 5 Kg (11 lb) |
