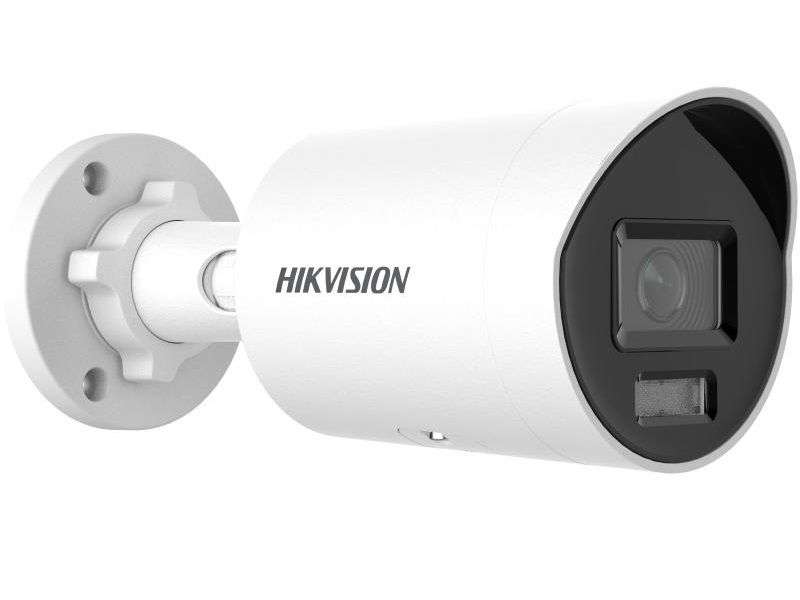

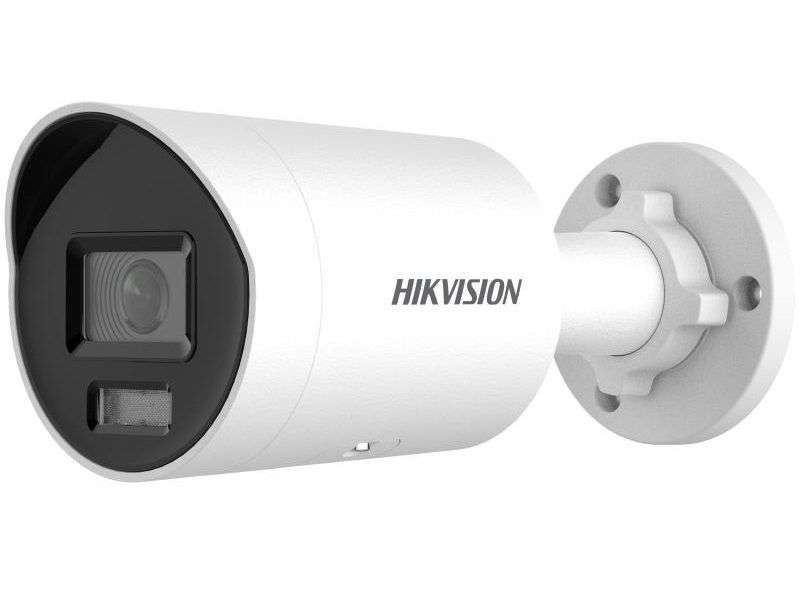

4 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera
High quality imaging with 4 MP resolution
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 d7 1520 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0 b0 to 360 b0,tilt: 0 b0 to 90 b0,rotate: 0 b0 to 360 b0 Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 104.0b0, vertical FOV 54.4 b0, diagonal FOV 126.7b0
4 mm, horizontal FOV 89.2 b0, vertical FOV 45.5b0, diagonal FOV 108.2`b0
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth Of Field
2.8 mm: 2.5 m to
4 mm: 3.1 m to
DORI
DORI
2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2688 d7 1520, 1920d7 1080, 1280 `d7 720)
60 Hz: 30 fps (2688 d7 1520, 1920d7 1080, 1280 `d7 720)
Sub-Stream
50 Hz: 25 fps (1280 d7 720, 640d7 480, 640 `d7 360)
60 Hz: 30 fps (1280 d7 720, 640 d7 480, 640 `d7 360)
Third Stream
50 Hz: 10 fps (1920 d7 1080, 1280d7 720, 640 d7 480, 640 d7 360)
60 Hz: 10 fps (1920 d7 1080, 1280d7 720, 640 d7 480, 640 d7 360)
xThe third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
xThird stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
SNR
52 dB
Wide Dynamic Range (WDR)
130 dB
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Smart Event
Scene change detection
Deep Learning Function
Face Capture
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC b1 25%, 0.45 A, max. 5.5 W,d85.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7 W
Material
Front cover: Metal, body: Metal, bracket: Metal
Dimension
d874.4 mmd7 179.2 mm (d82.9"d7 7.1")
Package Dimension
234 mm d7 120 mmd7 117 mm (9.2" d7 4.7"d7 4.6")
Weight
Approx. 525 g (1.2 lb.)
With Package Weight
Approx. 750 g (1.7 lb.)
Storage Conditions
-30 b0C to 60b0C (-22 b0F to 140b0F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 b0C to 60b0C (-22 b0F to 140b0F). Humidity 95% or less (non-condensing)
What's in the box
1 x Camera
1 x Pack of Screws
1 x Manual
