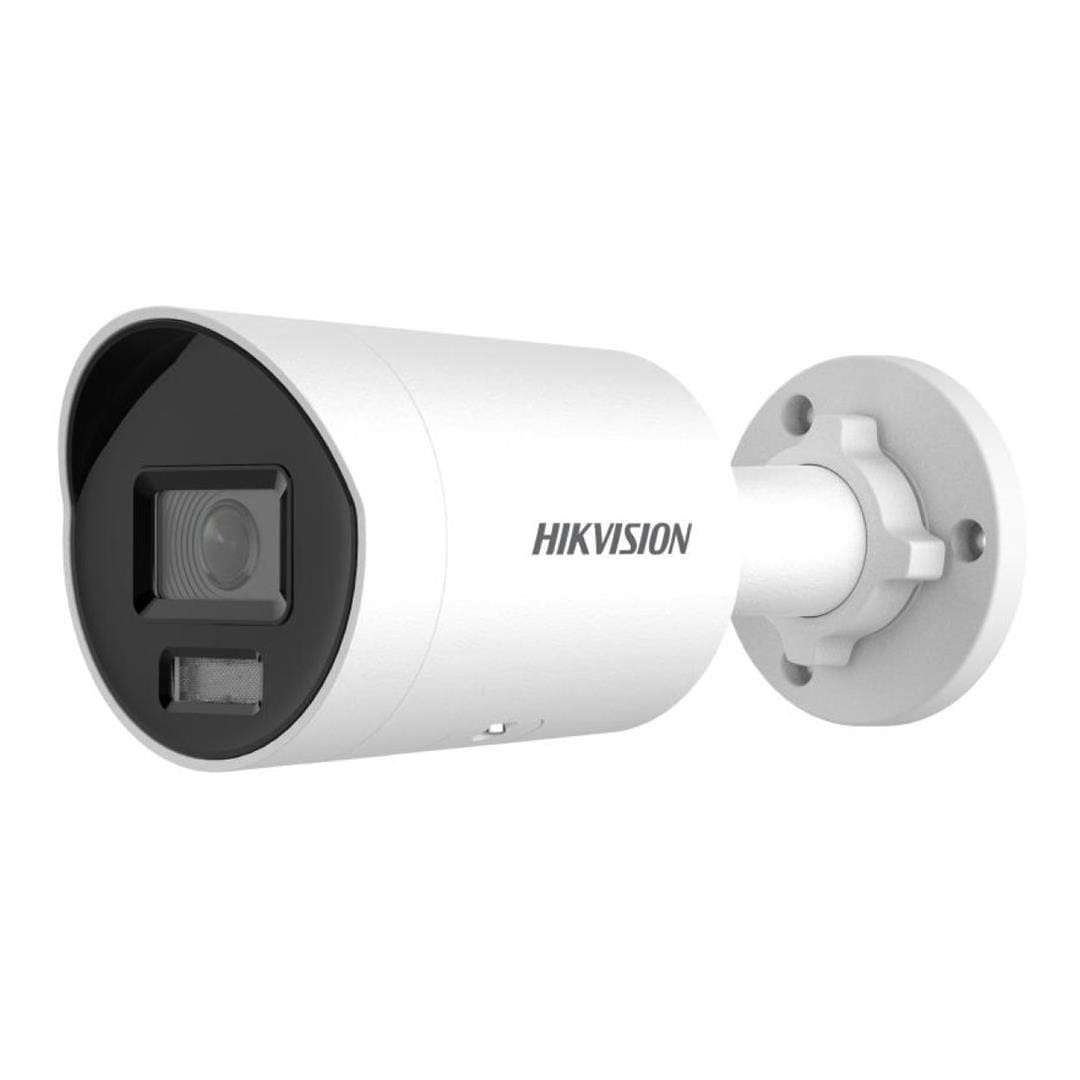

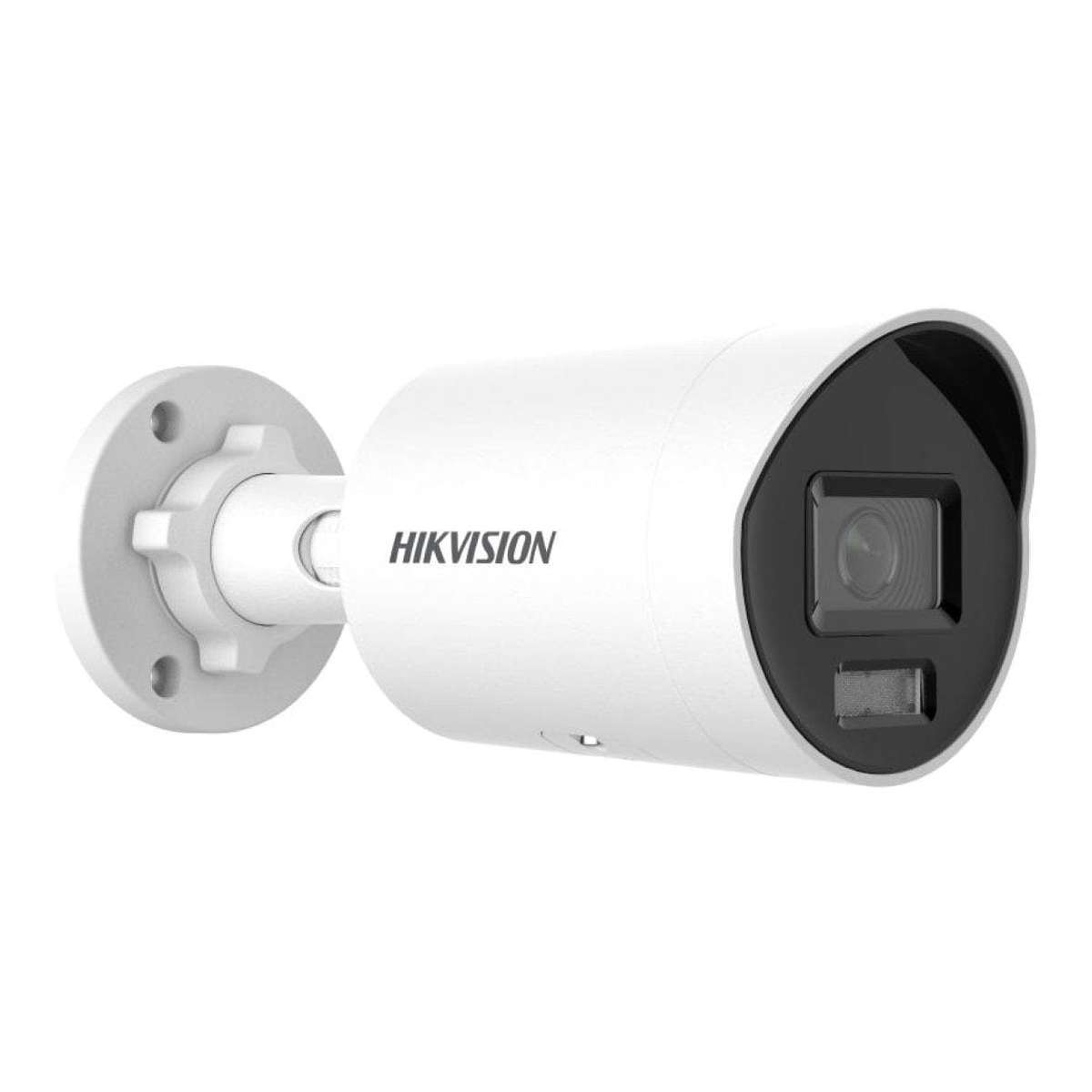

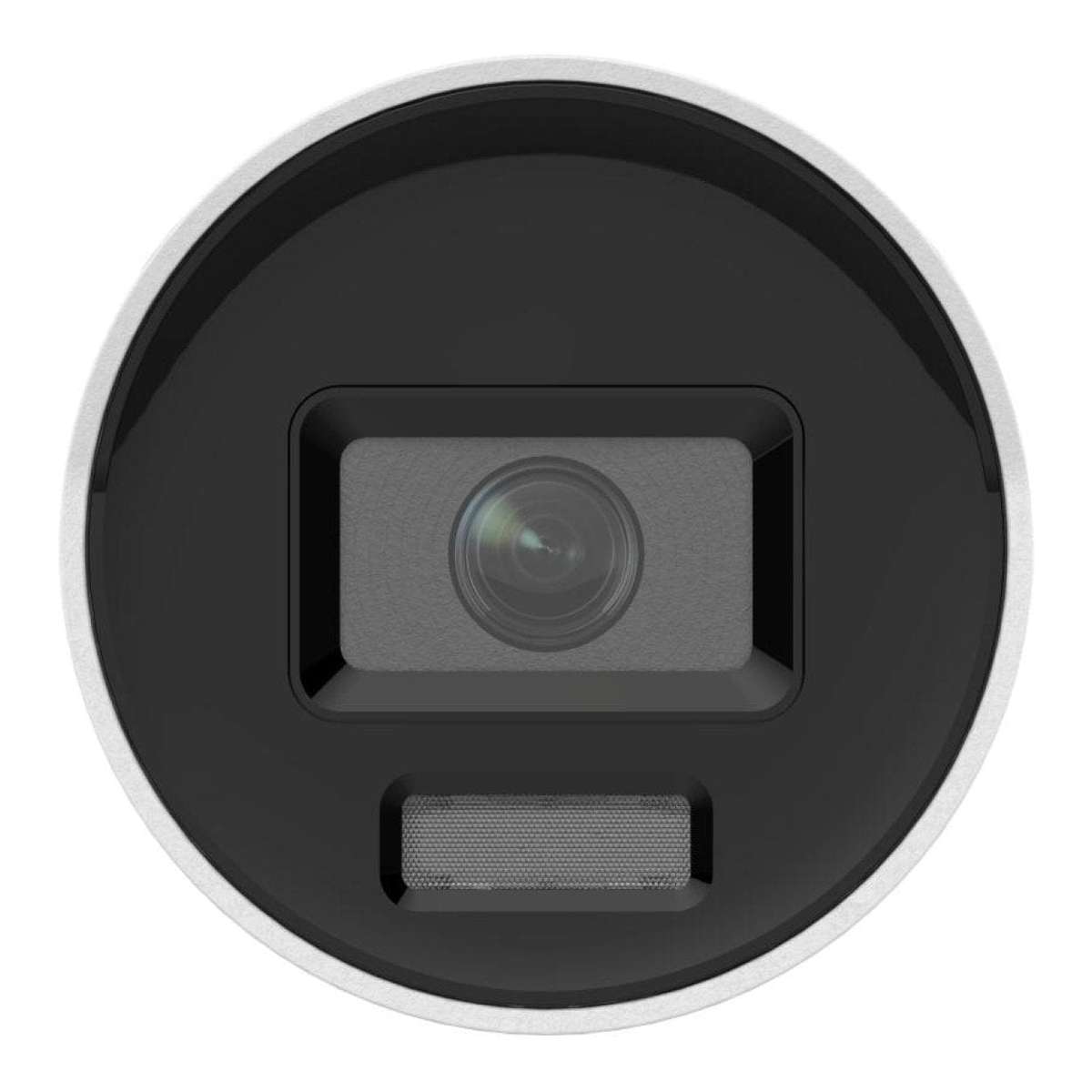

Hikvision 4MP Smart hybrid light with Darkfighter S Fixed Mini Bullet Network Camera
Features:
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- Smart Dual-Light: advanced technology with long range
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- High quality imaging with 4 MP resolution
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Technical Specifications:
Camera
Image sensor: 1/3" Progressive Scan CMOS
Max. resolution: 2688 × 1520
Min. illumination: Color 0.001 Lux - (F1.0, AGC ON), 0 Lux with light
Shutter time: 1/3 s to 1/100,000 s
Day & night: IR cut filter
Angle adjustment: Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°
Lens
Lens type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal length & FOV:
2.8 mm — horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
4 mm — horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens mount: M12
Iris type: Fixed
Aperture: F1.0
Depth of field: 2.8 mm — 1.9 m to , 4 mm — 2.5 m to
DORI
2.8 mm — Detect 63 m, Observe 25 m, Recognize 12 m, Identify 6 m
4 mm — Detect 78 m, Observe 31 m, Recognize 15 m, Identify 7 m
Illuminator
Supplement light type: IR, White light
Range: Up to 40 m
Smart supplement light: Yes
IR wavelength: 850 nm
HEOP
Open resources: Memory 60 MB, Smart RAM 400 MB, eMMC 2 GB
Computing power: 1.5 TOPS
Open capability: HEOP 2.0 OpendevSDK
Deep learning structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming language: C, C++
Video
Main stream:
50 Hz — 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz — 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream:
50 Hz — 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz — 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third stream:
50 Hz — 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz — 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Supported under certain settings
Fourth stream:
50 Hz — 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz — 10 fps (1280 × 720, 640 × 480, 640 × 360)
Supported under certain settings
Video compression: H.265/H.264/H.264+/H.265+ (main), H.265/H.264/MJPEG (sub), H.265/H.264 (third), H.265/H.264/MJPEG (fourth)
Video bit rate: 32 Kbps to 8 Mbps
H.264 type: Baseline, Main, High profile
H.265 type: Main profile
Bit rate control: CBR, VBR
SVC: H.264 and H.265 encoding
ROI: 5 fixed regions (main and sub-stream)
Target cropping: Yes
Audio
Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Bit rate: 64 Kbps (G.711ulaw/alaw), 16 Kbps (G.722.1/G.726), 32—192 Kbps (MP2L2), 8—320 Kbps (MP3), 16—64 Kbps (AAC-LC)
Sampling rate: 8/16/32/44.1/48 kHz
Noise filtering: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous live view: Up to 6 channels
API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP
Users: Up to 32 (administrator, operator, user)
Security: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP filter, HTTP/HTTPS authentication, WSSE, RTP/RTSP over HTTPS, TLS 1.1/1.2/1.3, MAC authentication, audit log
Network storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card with encryption and health detection
Clients: iVMS-4200, Hik-Connect, Hik-Central
Web browsers: IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ (plug-in free and local service)
Parameters switch: Yes
Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client or browser)
Day/night switch: Day, Night, Auto, Schedule
Enhancement: BLC, HLC, 3D DNR, Defog
SNR: 52 dB
WDR: 130 dB
Privacy mask: 4 programmable polygon masks
Interface
Ethernet: 1 × RJ45 10/100 Mbps self-adaptive port
On-board storage: microSD/microSDHC/microSDXC, up to 512 GB
Built-in microphone: Yes
Reset key: Yes
Events
Basic: Motion detection (human/vehicle filtering), tampering, exception
Smart: Unattended baggage, object removal, scene change, audio exception, defocus
Linkage: Upload to FTP/NAS/memory card, notification, email, recording, capture
Deep Learning
Face capture: Yes
People counting: Yes
Perimeter protection: Line crossing, intrusion, region entrance/exit (with human/vehicle filtering)
General
Power: 12 VDC ±25% (max. 8.5 W), PoE IEEE 802.3af Class 3 (max. 10 W)
Material: Metal housing (front cover, body, bracket)
Dimensions: Ø74.4 × 179.2 mm
Package dimensions: 234 × 120 × 117 mm
Weight: 525 g (net), 750 g (with package)
Operating/storage conditions: —30 °C to 60 °C, 95% RH (non-condensing)
Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Languages: 33 supported
Approvals
EMC: CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014), RCM (AS/NZS CISPR 32:2015), IC (ICES-003 Issue 7)
Safety: UL 62368-1, CB (IEC 62368-1:2014+A11), CE-LVD (EN 62368-1:2014/A11:2017), BIS (IS 13252 Part 1:2010/IEC 60950-1:2005), LOA (IEC/EN 60950-1)
Environment: CE-RoHS (2011/65/EU)
Protection: IP67 (IEC 60529-2013)
