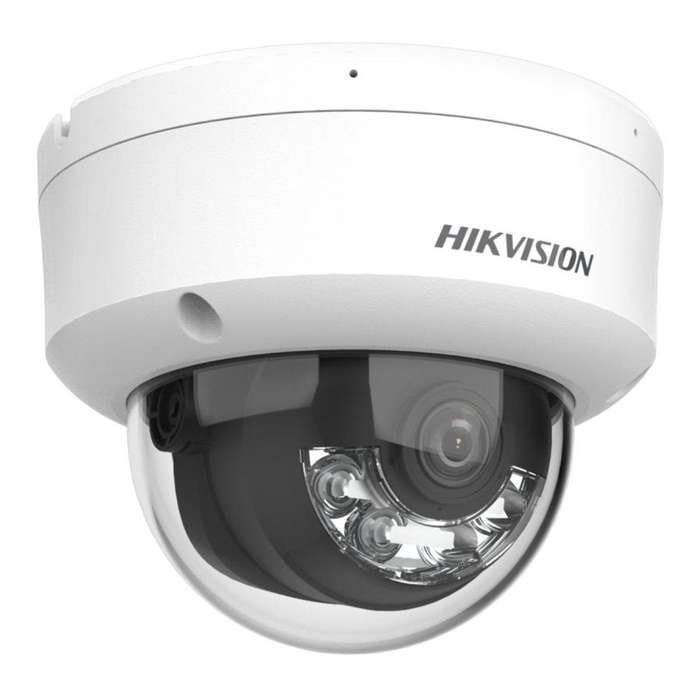

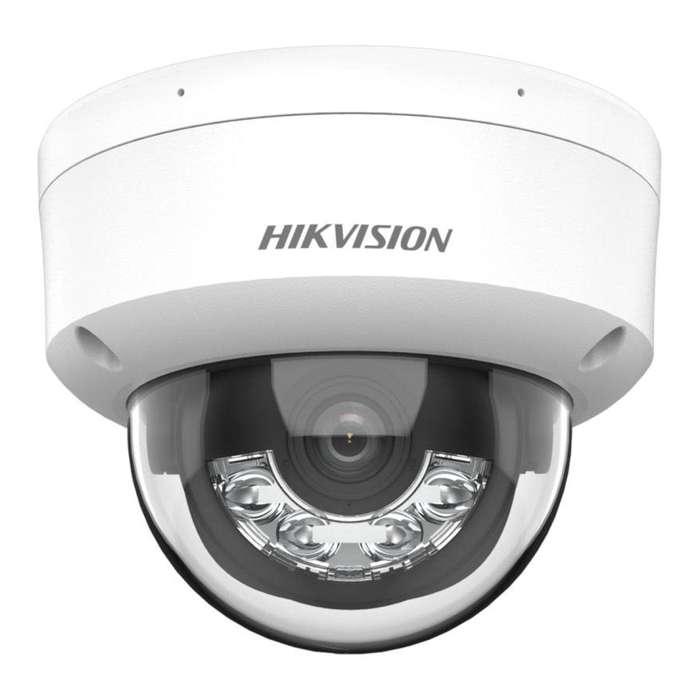

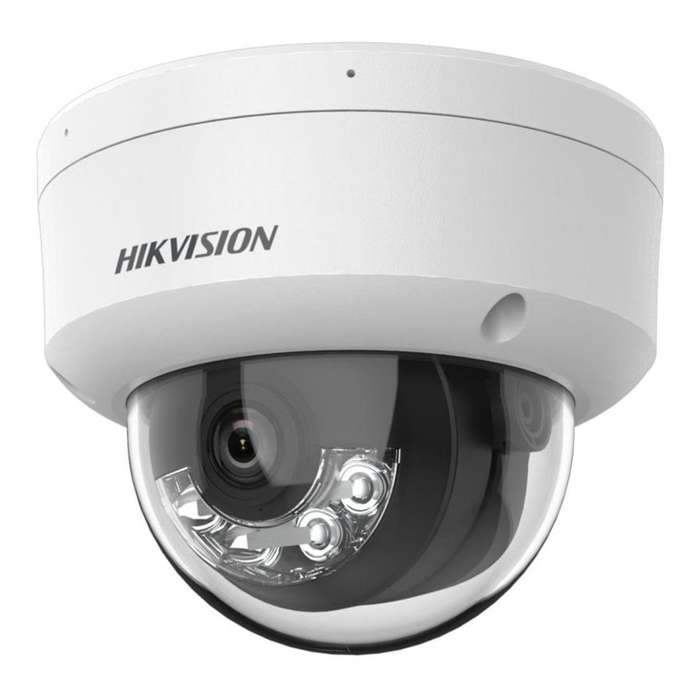

Hikvision 4MP Smart hybrid light with Darkfighter S Fixed Mini Dome Network Camera
Features:
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 4 MP resolution
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Smart Dual-Light: advanced technology with long range
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal resistant (IK10)
Technical Specifications:
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.001 Lux - (F1.0, AGC ON), 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355°
Lens
Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° | 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 1.9 m to | 4 mm: 2.5 m to
DORI
2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m
4 mm: D 78 m, O 31 m, R 15 m, I 7 m
Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
HEOP
Open Resources: Memory 60 MB, Smart RAM 400 MB, eMMC 2 GB
Computing Power: 1.5 TOPS
Open Capability: HEOP 2.0 OpendevSDK
Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming Language: C, C++
Video
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream H.265/H.264/H.264+/H.265+, Sub-stream H.265/H.264/MJPEG, Third stream H.265/H.264, Fourth stream H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding: H.264 and H.265 encoding
Region of Interest: 5 fixed regions (main and sub-stream)
Target Cropping: Yes
Audio
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Audio Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32—192 Kbps (MP2L2), 8—320 Kbps (MP3), 16—64 Kbps (AAC-LC)
Audio Sampling Rate: 8/16/32/44.1/48 kHz
Environment Noise Filtering: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP
Users: Up to 32 (administrator, operator, user)
Security: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP filtering, TLS 1.1/1.2/1.3, security audit log, MAC authentication, DoS protection
Network Storage
NAS (NFS, SMB/CIFS), ANR, Hikvision memory card encryption and health detection
Client and Browser
Client: iVMS-4200, Hik-Connect, Hik-Central
Browser: IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+
Image Parameters: Switchable
Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR, Defog
SNR: 52 dB
WDR: 130 dB
Privacy Mask: 4 programmable polygon masks
Interface
Ethernet: 1 RJ45 10/100 Mbps self-adaptive port
On-Board Storage: MicroSD/microSDHC/microSDXC up to 512 GB
Built-in Microphone: Yes (-U models)
Audio I/O: 1 in, 1 out (terminal block)
Alarm I/O: 1 in, 1 out
Reset Key: Yes
Power Output: 12 VDC, max. 100 mA
Events
Basic Events: Motion detection, video tampering, exception
Linkage: Upload to FTP/NAS/SD, notify center, email, recording, capture, alarm output, audio warning
Smart Events: Unattended baggage, object removal, scene change, audio exception, defocus
Deep Learning: Face capture, people counting, perimeter protection (line crossing, intrusion, region entrance/exit, human/vehicle filtering)
General
Power: 12 VDC ± 25% (0.6 A, max. 7.2 W), PoE IEEE 802.3af Class 3 (max. 8.5 W)
Material: Metal
Dimensions: Ø121.5 × 97.6 mm (Ø4.78 × 3.84 in)
Package Dimensions: 150 × 150 × 141 mm (5.9 × 5.9 × 5.6 in)
Weight: 550 g (1.2 lb), with package 800 g (1.8 lb)
Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), 95% RH non-condensing
General Functions: Heartbeat, mirror, anti-banding, flash log, password reset by email, pixel counter
Languages: 33 (English, Russian, German, French, Spanish, Portuguese, Italian, Polish, Dutch, Turkish, Chinese, Japanese, etc.)
Approvals
EMC: CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, RCM, ICES-003 Issue 7
Safety: UL 62368-1, IEC 62368-1, EN 62368-1, BIS, IEC/EN 60950-1
Environment: CE-RoHS 2011/65/EU
Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
