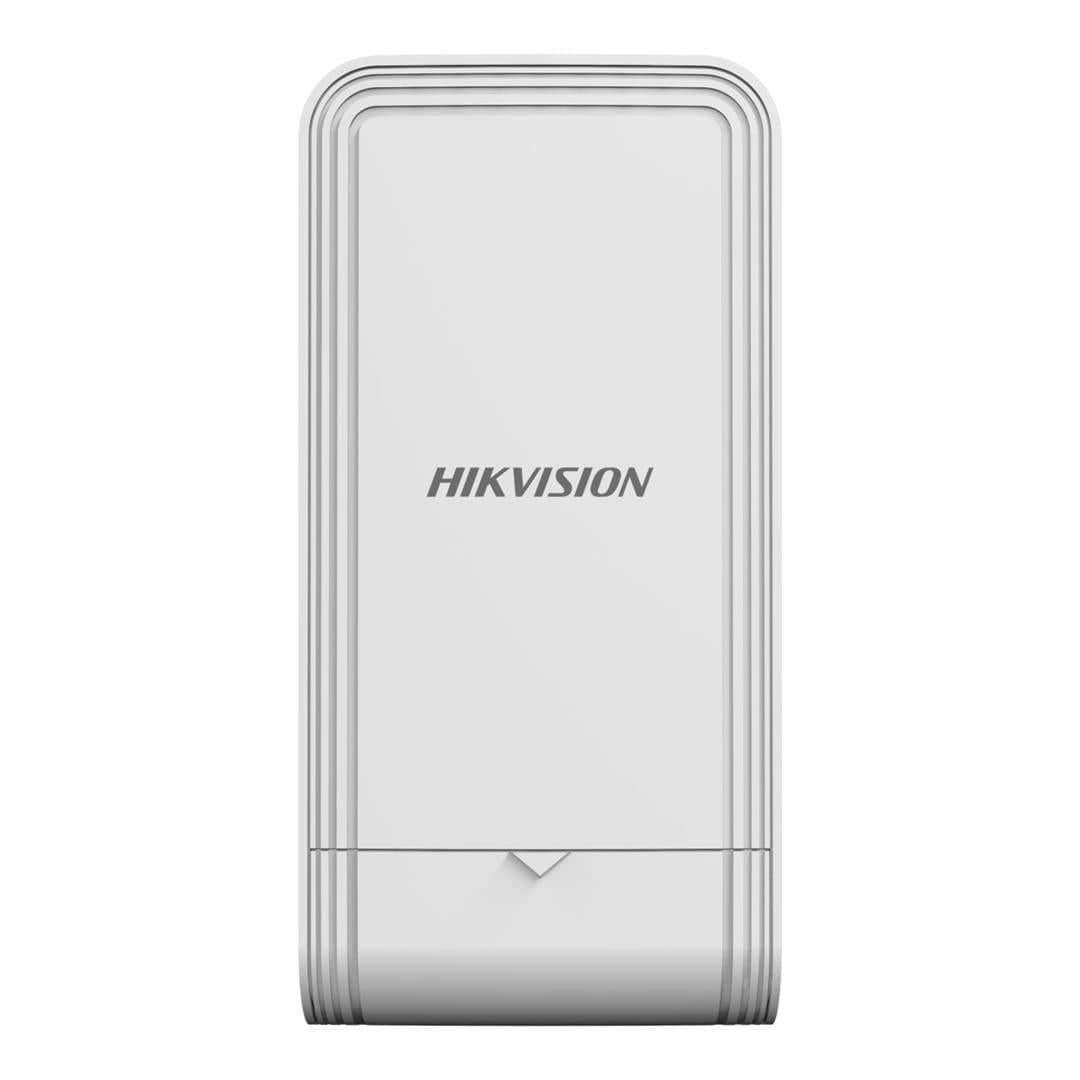

Hikvision 5Ghz 867Mbps 15km Outdoor Wireless CPE Bridge DS-3WF03C-5AC/O

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Hikvision 5Ghz 867Mbps 15km Outdoor Wireless CPE Bridge DS-3WF03C-5AC/O

Features

• All gigabit LAN ports
• TDMA supported
• Quick match through DIP switch
• Visualized topology management
• Up to 15km wireless transmission distance

Technical Specification

General

• Product Dimensions (W × H × D): 92 mm × 187 mm × 58 mm
• Net Weight: 0.307 kg
• Packing Method: Single unit packing
• Installation Mode: Pole Mounting
• Ingress Protection: IP55
• Power Consumption: 3 W for typical (1-ch 2MP IPC), Max. 7.5 W

Wireless Parameter

• Max. Transmission Rate of Air Interface: 867 Mbps
• Wireless Standard: IEEE 802.11/a/n/ac
• Working Frequency Band: 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
• Antenna Gain: 12 dBi
• Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
• Transmitting Power: 30 dBm -11ac MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity: -86±2dBm-AC80-MCS0
• Throughput Rate: PTP: ,230 Mbps/1 KM(AC80),200 Mbps/5 KM(AC80),20 Mbps/15 KM(AC80),PTMP(1 to 8): ,80 Mbps/5 KM(AC80)

Hardware Parameter

• Network Interface: 2x 1000 Mbps RJ45 ports
• LED Indicator: Power indicator,LAN indicator,Signal intensity indicator
• Reset: Hardware resetting button
• Power Supply: 12-24 VDC/1 A Passive PoE

Packing List

• 1x Wireless Bridge
• 1x Power Adapter (12 VDC, 1 A)
• 2x Binding Tape
• 1x 10/100/1000 Mbps PoE Injector
• 1x Quick Start Guide
• 1x Regulatory Compliance and Safety Information
