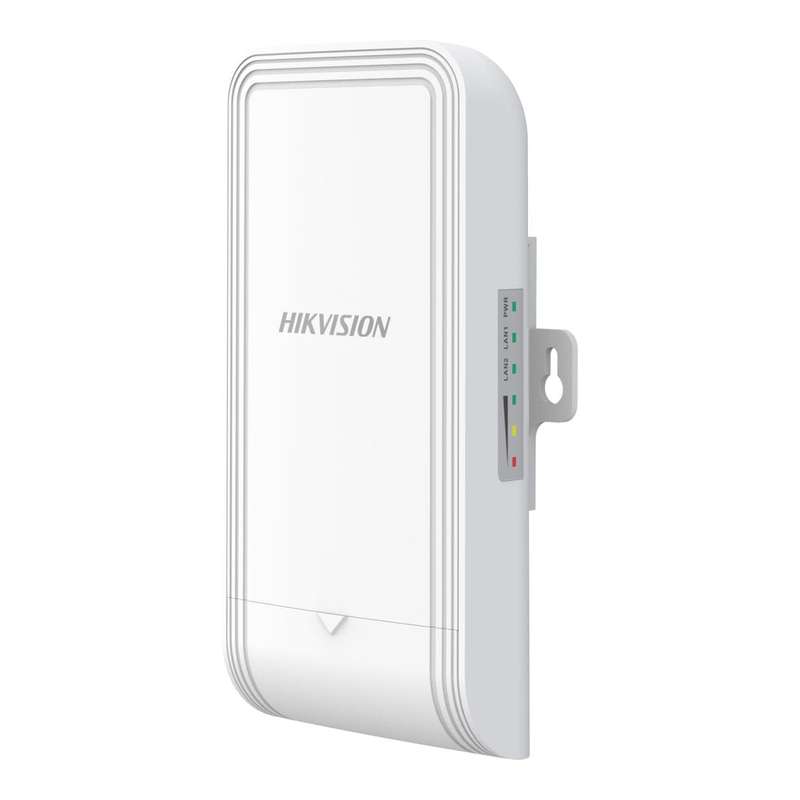

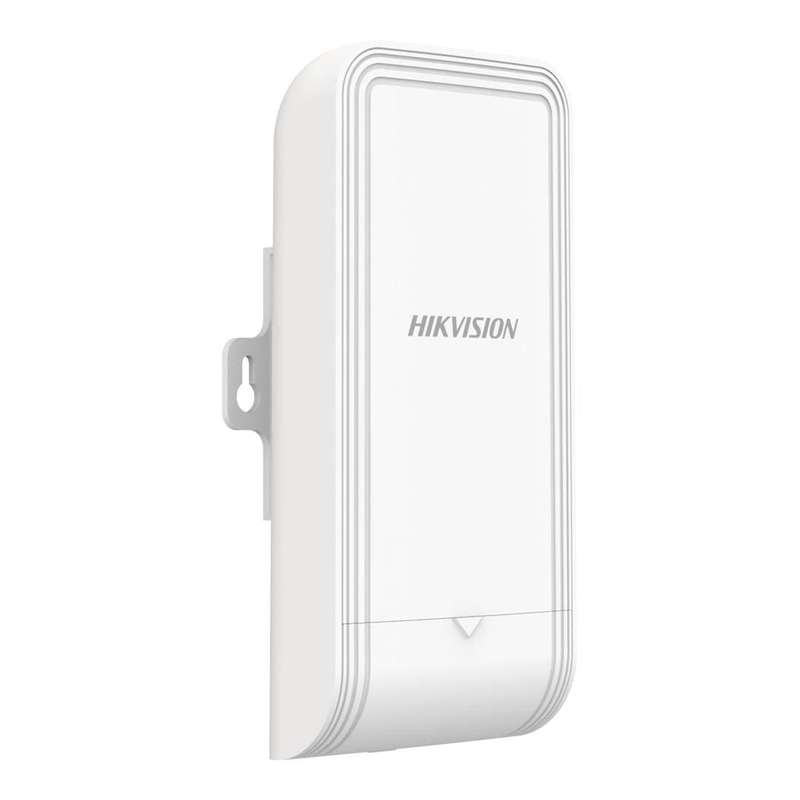

Hikvision 5Ghz 867Mbps 5km Wireless Bridge Kit DS-3WF02-5AC/D

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Hikvision 5Ghz 867Mbps 5km Wireless Bridge Kit DS-3WF02-5AC/D

Features

• Up to 5 km wireless transmission distance
• 867 Mbps 802.11ac wireless bridge
• Built-in 12 dBi 2 x 2 MIMO antenna
• Visualized topology management
• Standard PoE Input & Output
• Plug and Play

Technical Specification

Max. Transmission Rate of Air Interface: 867 Mbps

Wireless Standard: IEEE 802.11/a/n/ac

Working Frequency Band: 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5825 MHz

Antenna Gain: 12 dBi

Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°

Transmitting Power: 22 dBm -11ac MCS0 (Note: Transmitting power may vary with local regulations.)

Receiving Sensitivity: -84 ±2dBm-AC80-MCS0

Throughput Rate: PTP: 90 Mbps/0.5 KM(AC80), 90 Mbps/1 KM(AC80), 40 Mbps/5 KM(AC80), PTMP(1 to 4): 80 Mbps/1 KM(AC80)

PoE Port

• AP: LAN1 802.3af/at PoE IN
• CPE: LAN1 passive PoE IN
• LAN2 802.3 af PoE OUT

PoE Power Budget: 10 W

PoE Distance: 100 m

Installation Mode: Pole Mounting

Ingress Protection: IP55

Network Interface: 2x 10/100 Mbps RJ45 ports

Weight: 0.26 kg per device

Power Supply: 48V PoE or 12~24V DC

Packing List

• 2x Wireless Bridge
• 2x PoE Power Supply
• 2x AC Cord
• 1x Quick Start Guide
• 1x Regulatory Compliance and Safety Information
• 4x Binding Tape
