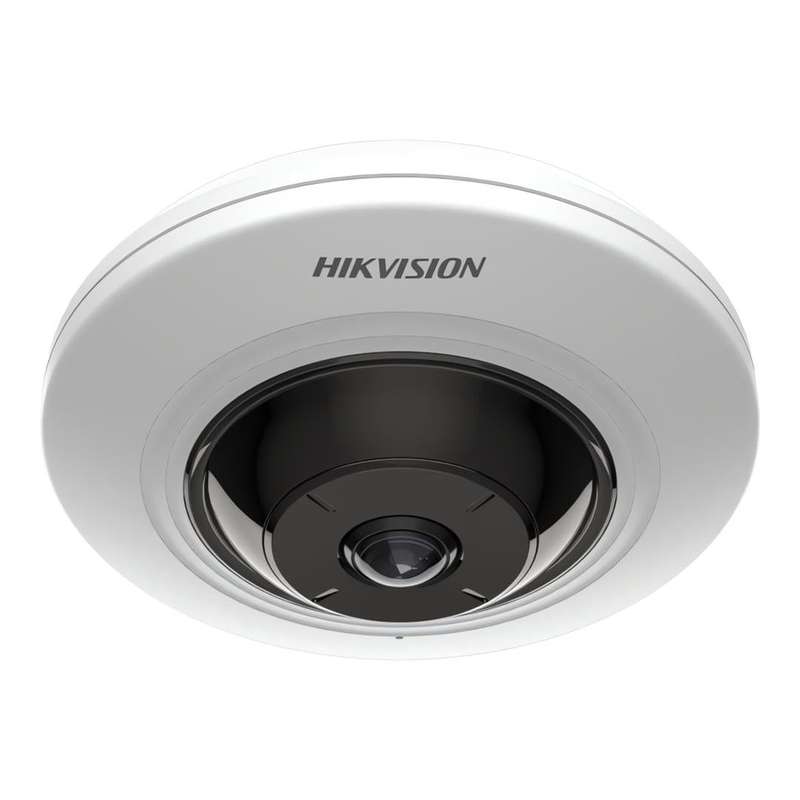

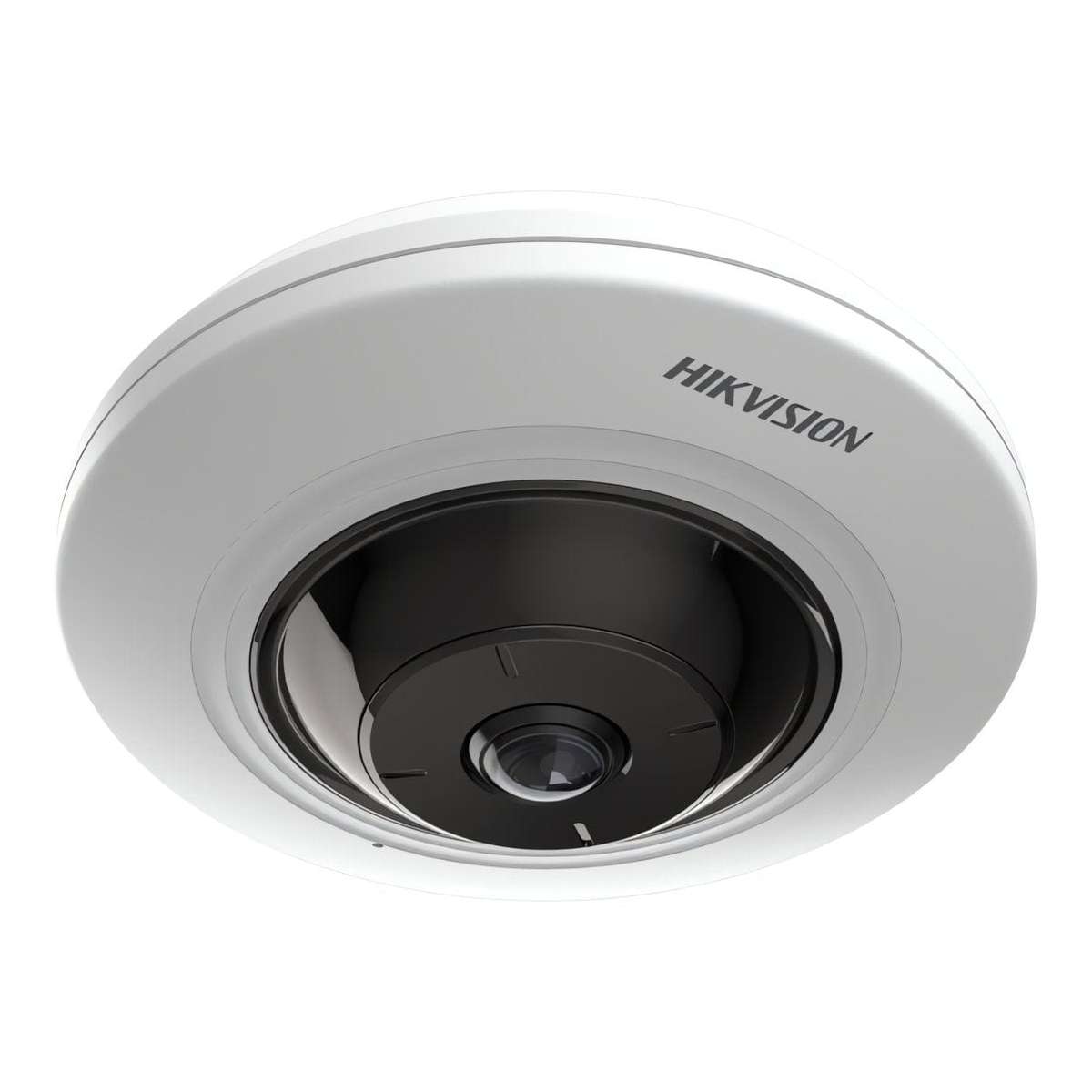

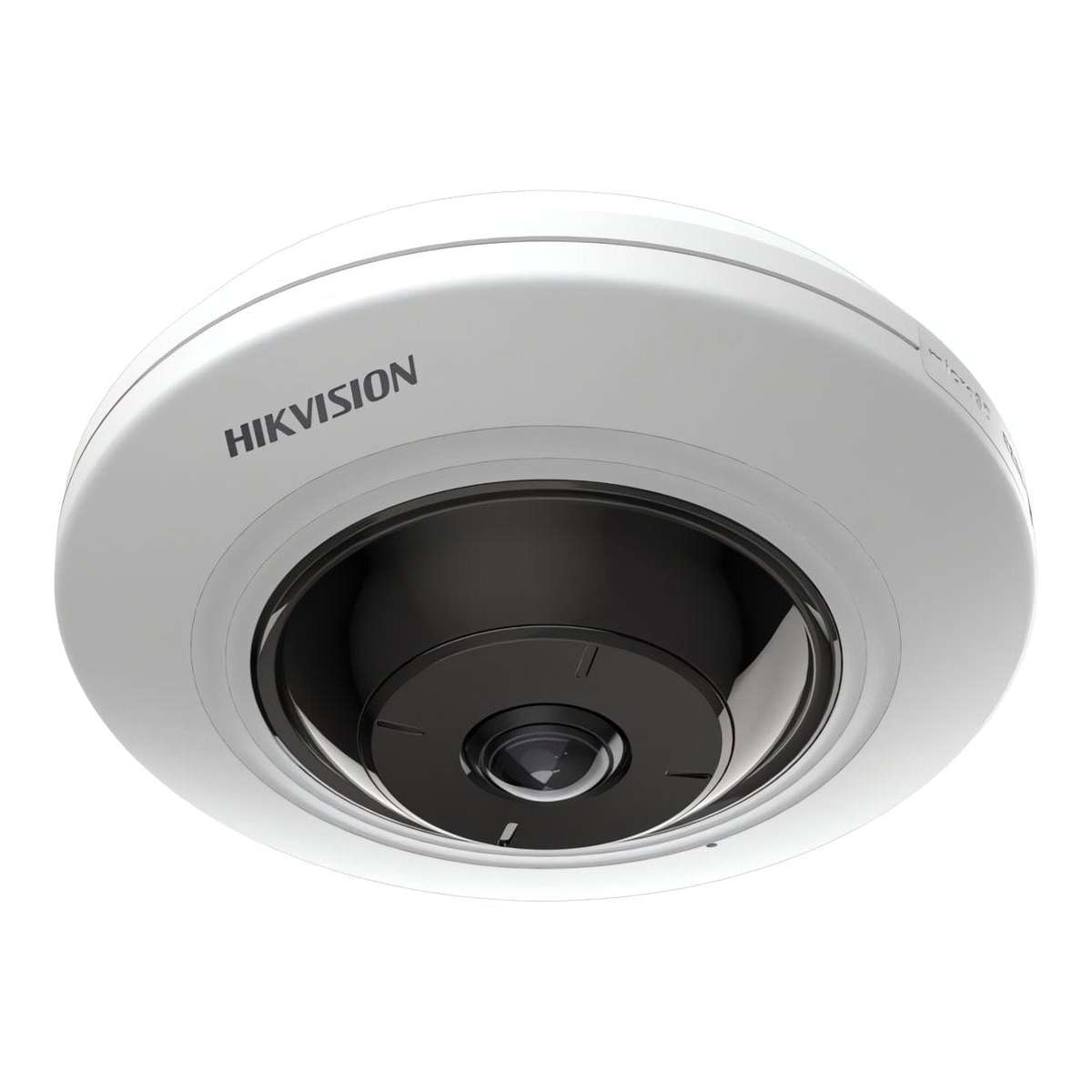

Hikvision 5MP 1.05mm AcuSense Fisheye Network Camera DS-2CD3956G2-ISU(1.05mm)
Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.
Features
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- Efficient H.265+ compression technology
- 180° fisheye view
- High quality imaging with 5 MP resolution
- Up to 4 live view display modes
- Clear imaging against strong back light due to 120 dB true WDR technology
Technical Specification
Image Sensor: 1/2.7" Progressive Scan CMOS
Max. Resolution: 2560 x 1920
Lens Type: 1.05 mm Fixed focal lens
FOV: Horizional FOV: 180°, Vertical FOV: 180°, diagonal FOV: 180°
Depth of Field: 0.1 m to
DORI: D: 21 m, O: 8 m, R: 4 m, I: 2 m
Supplement Light Type: IR
Supplement Light Range: Up to 8 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Memory: 60 MB
Smart RAM: 400 MB
eMMC: 2 GB
Computing Power: 1.5 TOPS
Mount Type: Support wall/table/ceiling mounting
Built-in Microphone: Yes
Audio
- 1x input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium
- 1x output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 , interface type: non-equilibrium
Alarm: 1x input, 1x output (max. 12 VDC, 30 mA)
RS-485: 1x RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port
Power: 12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug or PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
- Please note: Power supply is not included
