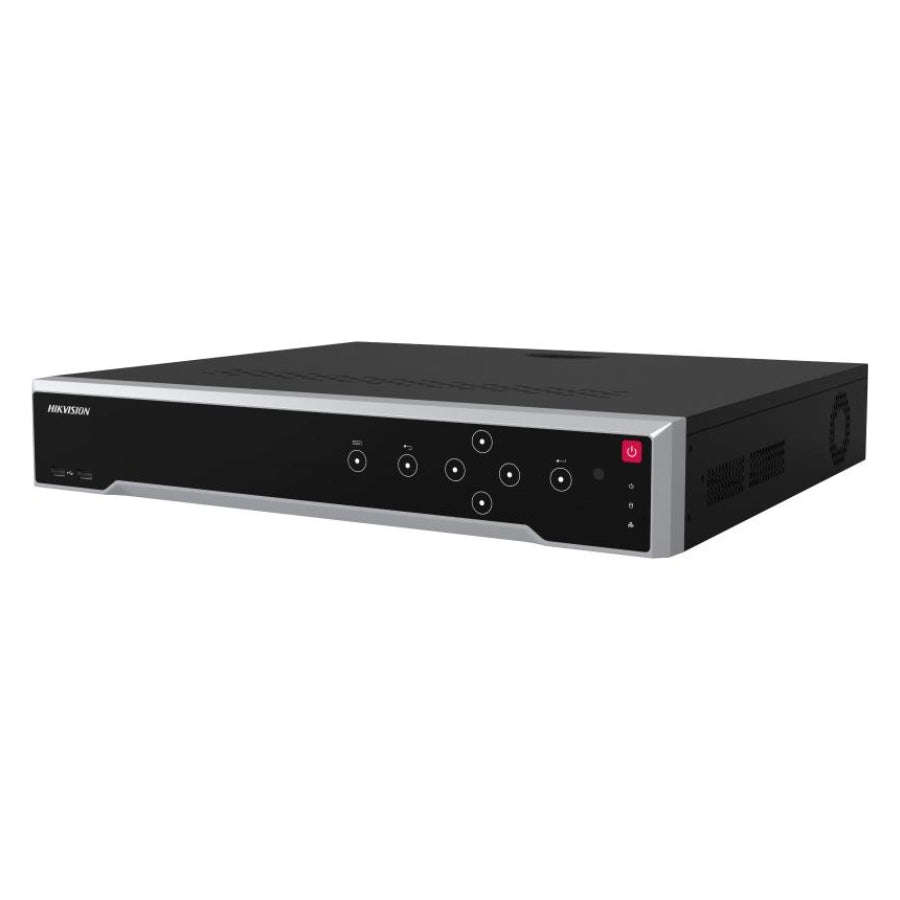

Hikvision DS-7764NI-M4 64-Channel 8K Network Video Recorder
The Hikvision DS-7764NI-M4 is a professional 64-channel network video recorder designed for large-scale IP CCTV installations that require high-resolution recording, powerful decoding, and reliable long-term surveillance storage. It is ideal for commercial buildings, warehouses, estates, schools, shopping centres, industrial sites, office parks, and advanced security control rooms.
Supporting up to 64 IP camera inputs with resolutions up to 32MP, this NVR is built to handle demanding surveillance systems with high image detail and strong network performance. With H.265+ / H.265 / H.264+ / H.264 video compression, it helps reduce storage usage and bandwidth demand while maintaining excellent recording quality.
The DS-7764NI-M4 offers up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, making it suitable for multi-camera, high-resolution environments. It features 2 HDMI and 1 VGA output, supporting up to 8K video output or dual 4K display output for professional monitoring setups. With 4 SATA HDD bays, it provides strong storage expansion for continuous CCTV recording.
Key Features
-
64-channel Hikvision network video recorder
-
Model: DS-7764NI-M4
-
Supports up to 64 IP camera inputs
-
Up to 32MP camera resolution support
-
H.265+ / H.265 / H.264+ / H.264 video compression
-
Up to 400 Mbps incoming bandwidth
-
Up to 400 Mbps outgoing bandwidth
-
Powerful decoding capacity for high-resolution cameras
-
2 × HDMI and 1 × VGA video outputs
-
Supports up to 8K video output or dual 4K output
-
4 SATA interfaces for surveillance hard drives
-
Supports large-capacity CCTV storage
-
Suitable for professional IP surveillance systems
-
1.5U rack-style chassis
-
Ideal for multi-camera commercial and industrial installations
-
Compatible with Hikvision IP cameras and supported ONVIF cameras
Ideal For
Perfect for warehouses, shopping centres, schools, office parks, estates, factories, logistics facilities, control rooms, and large commercial CCTV systems where high channel capacity, 8K display output, reliable recording, and professional-grade storage performance are required.
Professional and Reliability
H.265+ compression effectively reduces the storage space by up to 75%
Dual-stream recording saves bandwidth Adopt stream over TLS encryption technology which provides more secure stream transmission service Support double verification for playback and downloading.
HD Video Output
Provide independent HDMI and VGA outputs HDMI video output at up to 8K resolution
Dual 4K HDMI output resolution.
Storage and Playback
Up to 4 SATA interfaces for HDD connection16-ch synchronous playback.
Smart & POS Function
Support multiple VCA (Video Content Analytics) events Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting POS information overlay on live view and playback, and POS triggered recording and alarm.
Network & Ethernet Access
2 self-adaptive 10/100/1000 Mbps Ethernet interfaces. Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management. Smooth streaming technology
Support web access without plug-in.
