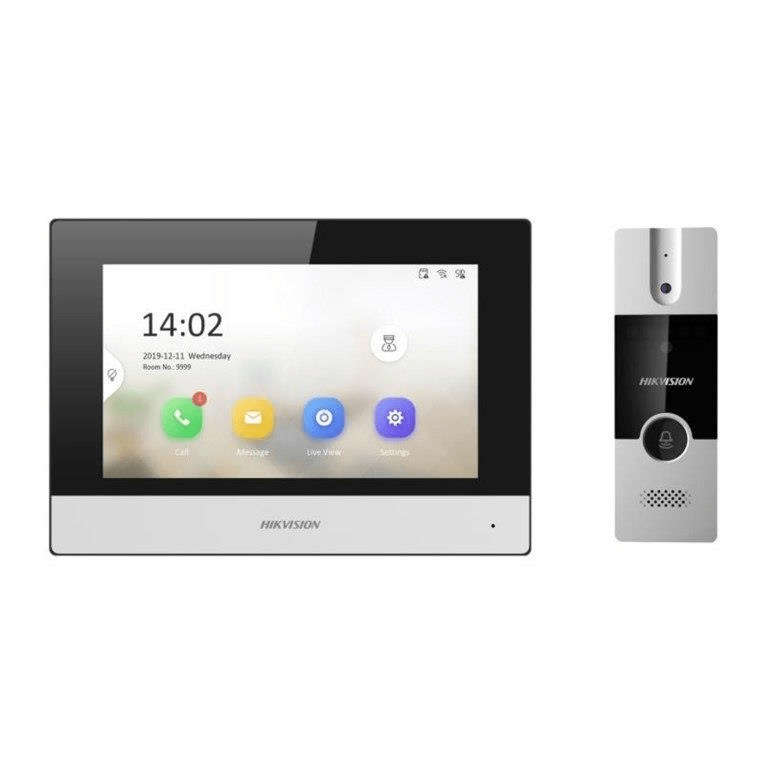

Hikvision 7-inch Hybrid Intercom Kit
Features
- Hybrid Intercom Bundle with 1 indoor station and 1 four-wire analog door station
- User-friendly control with a convenient touch screen
- Convenient management via the Hik-Connect mobile client
- More cost-effective options with analog doorbells
- Easy installation as the doorbell requires no exclusive power supply
Technical Specification
Door station
Video parameters
Resolution: 1920 x 1080
FOV Horizontal: 66.2°ï¼ŒVertical: 37.2°
Audio parameters
Audio input: Built-in omnidirectional microphone
Audio output: Built-in loudspeaker
Device interface
I/O output: 1 relay output
Four-wire: 1 for 4-wire interface
General
Power supply: 12 VDC
Power consumption: Max. 5 W
Dimensions: 135.14 mm × 49.6 mm × 41.93 mm
Indoor station
System parameters
Operation system: Embedded Linux operation system
RAM: 128 MB
ROM: 32 MB
Display parameters
Size: 7-inch colorful TFT screen
Operation method: Capacitive touch screen
Type Colorfu:l TFT screen
Resolution: 1024 × 600
Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio compression Rate 64 Kps
Audio compression standard G.711 U G.711 A
Volume adjustment Adjustable
Audio quality Noise suppression and echo cancellation
Capacity parameters
Linked IPC capacity: 16
Notice capacity: 200
Linked indoor extensions capacity:16
Linked doorphone capacity:2 analog doorphones, 15 IP doorphones Max
Network parameters
Wired network: 10/100 Mbps self-adaptive
Wi-Fi: Wi-Fi 802.11 b/g/n
Protocol: TCP/IP, SIP, RTSP
Device interface
Network interface: 1 RJ-45 10/100 Mbps self-adaptive
RS-485: 1
Alarm input: 2-ch alarm inputs
Alarm output: 2
Power input: 1, 12 VDC
TF card: Max to 128 G, SD 2.0 or lower version
Four-wire interface: 2
General
Power supply: IEEE802.3af, Standard PoE,12V DC
Power consumption: ≤ 6 W
Dimensions (W × H × D): 200 mm × 140 mm × 23.6 mm
Installation: Surface mounting
Application environment: Indoor
