DESCRIPTION

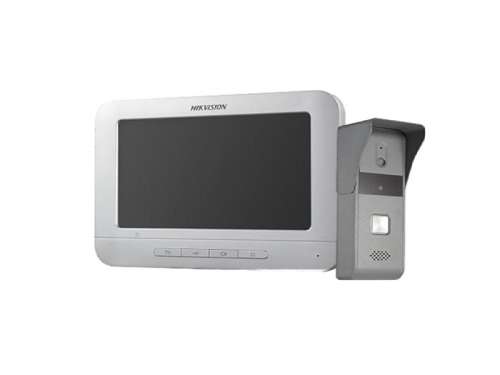

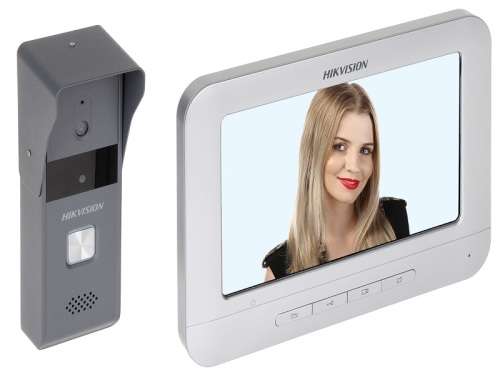

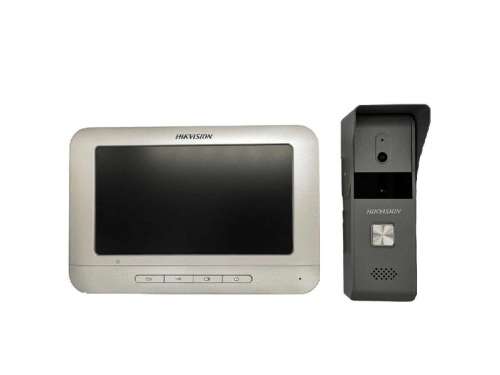

Video Doorphone set of the Hikvision brand with a door station mounted in a surface housing and a 7" colored screen. The DS-KIS203 doesn`t need any additional configuration (after connecting according to the diagram the device is ready to operate).
ATTENTION! The device does not support the HIKVISION IP system.
SPECIFICATION
Search for similar

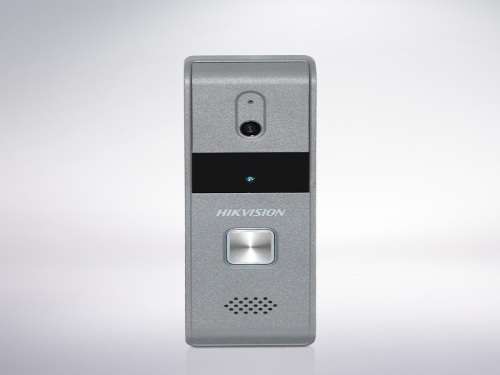

DOOR STATION:
Sensor:1/4 " CMOS
IR illuminator:
proximity reader built-in:
Video output:1 Vpp, CVBS - pair of wires
compatible with HIKVISION analog video door-phone system
Operation temp:-30 `b0C ... 70 `b0C
Power supply:12 V DC
Power consumption:≤ 5 W (operation)
Main features:
Relay output
4-wire cable installation : 5 m (included)
Housing:Metal, Waterproof
Color:Graphite
"Index of Protection":IP65
Weight:0.46 kg
Dimensions:145 x 49 x 27 mm
INDOOR PANEL:
Shield:7 " TFT-LCD color matrix
Resolution:800 x 480
Main features:
Plug & Play,
Ultra-flat hands-free monitor, with speakerphone,
Smooth volume control,
Microphone built-in,
Speakers built-in,
Bidirectional communication
Power supply:12 V DC
Max. current:420 mA
Power consumption:≤ 5 W
Operation temp:-10 `b0C ... 55 `b0C
Weight:0.278 kg
Dimensions:196 x 133 x 18 mm
Manufacturer / Brand:HIKVISION
SAP Code:305300749
