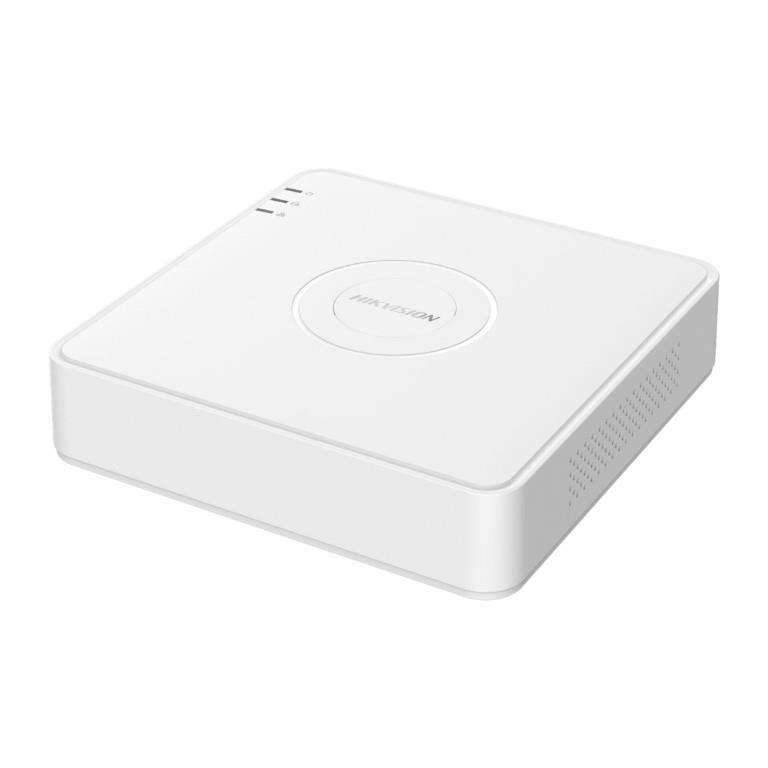

Hikvision 7100 Series 4-ch 720p Mini 1U DVR DS-7104HGHI-M1

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 5-ch IP camera inputs (up to 2 MP)
• Up to 1080p Lite-30 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

Smart Function

Deep learning-based motion detection 2.0

Compression and Recording

H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs

Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Playback

Smart search for efficient playback

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Technical Specifications:

Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels. It classifies humans and vehicles and significantly reduces false alarms caused by objects such as leaves and lights. Quick search by object or event type is supported.

Video and Audio
IP Video Input: 1-channel (up to 5-channel), up to 1080p resolution, supports H.265+, H.265, H.264+, H.264 IP cameras
Analog Video Input: 4-channel, BNC interface (1.0 Vp-p, 75 ), supports coaxitron connection
HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
AHD Input: 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
CVBS Input: Supported
HDMI Output: 1-channel, 1920 × 1080 - 60 Hz, 1280 × 1024 - 60 Hz, 1280 × 720 - 60 Hz
VGA Output: 1-channel, 1920 × 1080 - 60 Hz, 1280 × 1024 - 60 Hz, 1280 × 720 - 60 Hz
Video Output Mode: HDMI and VGA simultaneous output
Audio Input: 1-channel RCA (2.0 Vp-p, 1 K), 4-channel via coaxial cable
Audio Output: 1-channel RCA (Linear, 1 K)
Two-Way Audio: Reuses the first audio input
Synchronous Playback: 4-channel

Recording
Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Encoding Resolution:
For 1080p stream access: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF
For 720p stream access: 720p, WD1, 4CIF, VGA, CIF
For SD stream access: WD1, 4CIF, VGA, CIF
Frame Rate:
Main stream:
For 1080p stream access: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF - 25 fps (PAL) / 30 fps (NTSC)
For 720p stream access: 720p, WD1, 4CIF, VGA, CIF - 25 fps (PAL) / 30 fps (NTSC)
For SD stream access: WD1, 4CIF, VGA, CIF - 25 fps (PAL) / 30 fps (NTSC)
Sub-stream: 4CIF - 15 fps, CIF/QVGA - 25 fps (PAL) / 30 fps (NTSC)
Video Bitrate: 32 Kbps to 4 Mbps
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps

Network
Total Bandwidth: 64 Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
Remote Connection: 32
Network Interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA: 1 SATA interface
Capacity: Up to 4 TB per disk
USB Interface: Rear panel, 2 × USB 2.0
Alarm In/Out: N/A

General
Power Supply: 12 VDC, 1.5 A
Consumption: 16 W (without HDD)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimensions (W × D × H): 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight: 0.8 kg (without HDD, 1.8 lb.)
