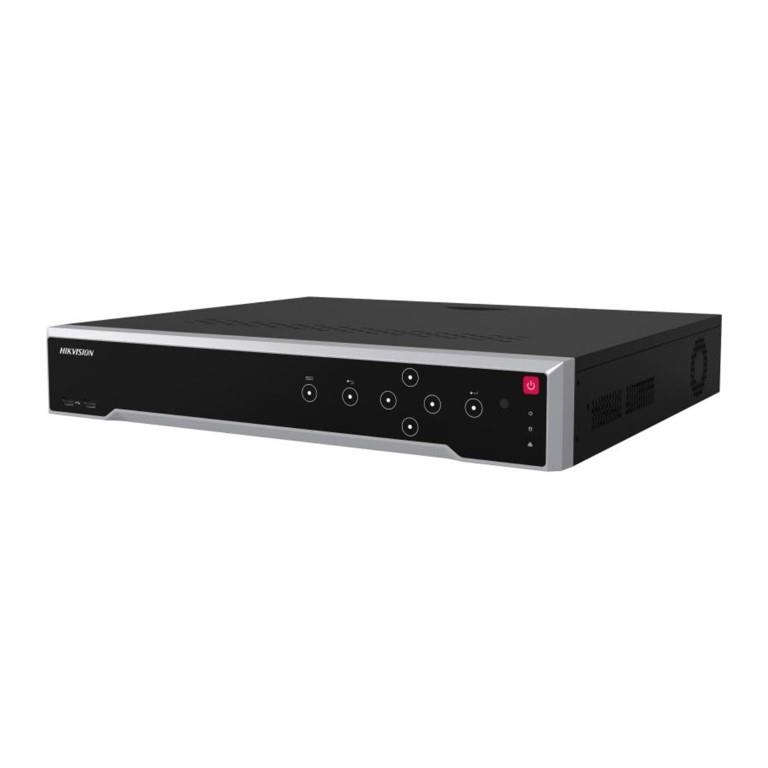

Hikvision 7700 Ultra Series 64-ch NVR 8K 1.5U DS-7764NI-M4

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Hikvision 7700 Ultra Series 64-ch NVR 8K 1.5U DS-7764NI-M4

Features

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading
• Solar-powered camera is connectable through OTAP protocol. NVR would get stream when user requests, and camera would send back videos according to the schedule

HD Video Output

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution
• Dual 4K HDMI output resolution

Storage and Playback

• Up to 4 SATA interfaces for HDD connection
• 16-ch synchronous playback

Smart & POS Function

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

• 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in

Technical Specification

• H.265+/H.265/H.264+/H.264 video formats
• Up to 64-ch IP camera inputs (*Additional switch required for Camera's)
• 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Up to 32 MP resolution *After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
• Up to 2-ch-32 MP/2-ch-24 MP/4-ch-12 MP/8-ch-8 MP/16-ch-4 MP/32-ch-1080p decoding capacity
• Up to 400 Mbps incoming bandwidth
• Up to 400 Mbps outgoing bandwidth
• 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs
• 1-ch CVBS Output, BNC (1.0 Vp-p, 75 ), resolution: PAL: 704 × 576, NTSC: 704 × 480
• 1-ch Audio Output, RCA (Linear, 1 K)
• 1-ch Two-Way Audio, RCA (2.0 Vp-p, 1 K, using the audio input)
• 1x eSATA interface
• 4x SATA interfaces
• Up to 16 TB capacity for each HDD
• 2x RS-485 (half-duplex), 1x RS-232
• 16x Alarm In
• 9x Alarm Out
• 2x USB 2.0 Front panel ; 1x USB 3.0 Rear panel
