Water proof 4-wire analog video intercom bundle for home/office
One call button for easier calls
Includes DS-KB2421T and DS-KH2220, 5M 4-wire cable and other accessories
European power supply adaptor included
Video Parameters:
Resolution - 1920 1080
Stream resolution - 960 576
Lens - 1/2.7" CMOS
FOV - Horizontal: 66.2 Vertical: 37.2
Door Station/Audio Parameters:
Audio Input - Built-in omnidirectional microphone
Audio Output - Built-in loudspeaker
Door Station/Device Interfaces:
I/O Output - 1 relay output
Four-Wire - 1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding
Door Station/General:
Power Supply - 12 VDC
Power Consumption - Max. 5W
Working Temperature - -10 C to + 55 C (14 F to 131 F)
Working Humidity - 10% to 90%
Dimensions - 128 mm 42 mm 24.8 mm
Protective Level - IP65
Indoor Station/Display Parameters:
Operation Method - Physical button
Type - 7-inch colorful TFT LCD
Resolution - 800 480
Indoor Station/Audio Parameters:
Audio Input - Built-in omnidirectional microphone
Audio Output - Built-in loudspeaker
Audio Quality - Noise suppression and echo cancellation
Indoor Station/General:
Power Supply - 12 VDC
Power Consumption - 5 W
Working Temperature - -10 C to + 55 C (14 F to 131 F)
Working Humidity - 10% to 90%
Dimensions (W H D) - 195.8 mm 132.8 mm 18.39 mm (7.7" 5.2" 0.7")
What's in the box

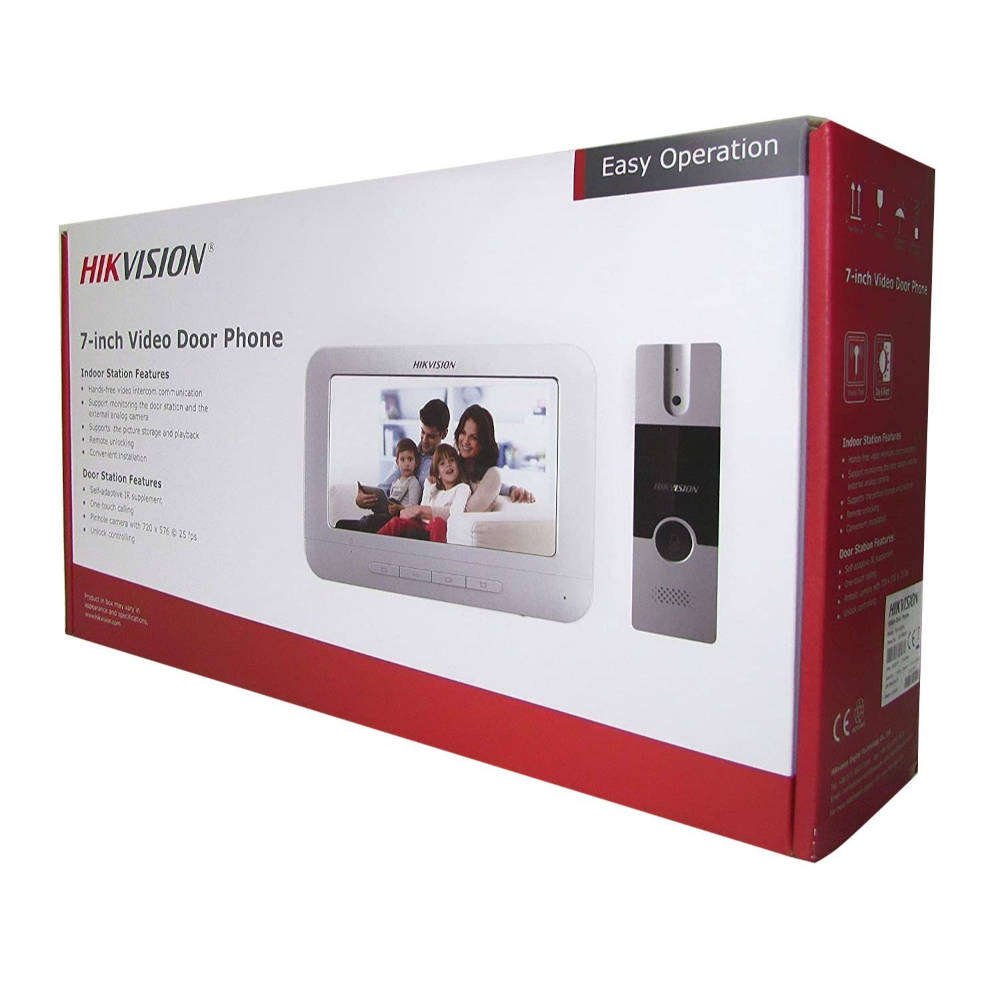

1 X HIKVISION DS-KIS203T 7-Inch Video Door Phone
Please Note : Packaging Damaged in storage
