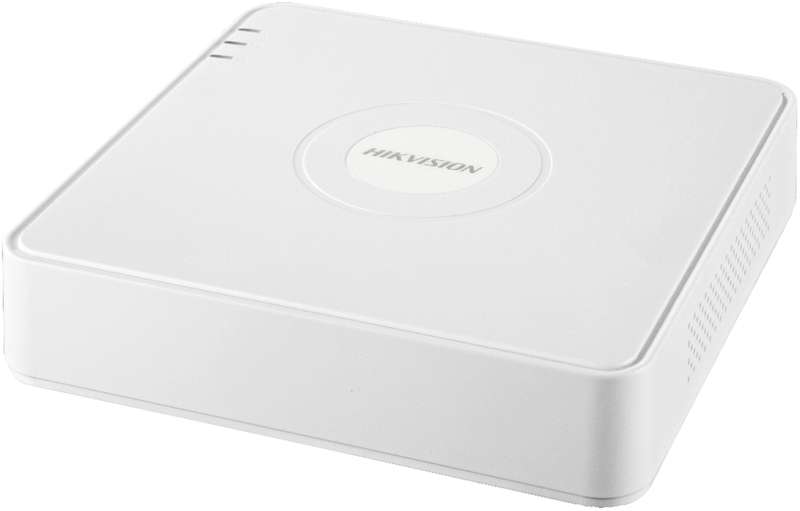

Hikvision 8-ch Mini 1U NVR

Hikvision 8-ch Mini 1U NVR, 8-ch IP Video Input, Up to 4 MP Resolution, 1-ch HDMI Output, 1-ch VGA Output, HDMI / VGA simultaneous Output, H.265+ / H.265 / H.264+ / H.264 decoding Format, 8-ch synchronous playback, 1x RJ-45 10/100 Mbps self-adaptive Ethernet Interface, 1 SATA Interface, Up to 6TB capacity for each disk, 2x USB 2.0

Overview:

DS-7108NI-Q1 - 8-ch Mini 1U NVR
H.265+/H.265/H.264+/H.264 video compression
Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 8-ch network camera inputs
Up to 4-ch 1080p decoding capability
HDMI and VGA simultaneous output

Specifications:

Video and Audio
IP Video Input 8-ch
Up to 4 MP resolution
Incoming Bandwidth 60 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output 1-ch, 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA Output 1-ch, 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output Mode HDMI/VGA simultaneous output
Decoding
Decoding Format H.265+/H.265/ H.264+/H.264
Recording Resolution 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 8-ch
Decoding Capability 4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
Stream Type Video, Video & Audio
Network
Remote Connection 16
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Network Interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
Alarm In/Out N/A
USB Interface Rear panel: 2 x USB 2.0
General
Power Supply 12 VDC, 1.5 A
Consumption 10 W
Working Temperature -10 to +55º C (+14 to +131º F)
Working Humidity 10% to 90%
Dimension (W x D x H) 200 x 200 x 48 mm (7.9" x 8.1" x 1.9")
1 kg (2.2 lb)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN50130-4, EN 61000-3-2, EN 61000-3-3
