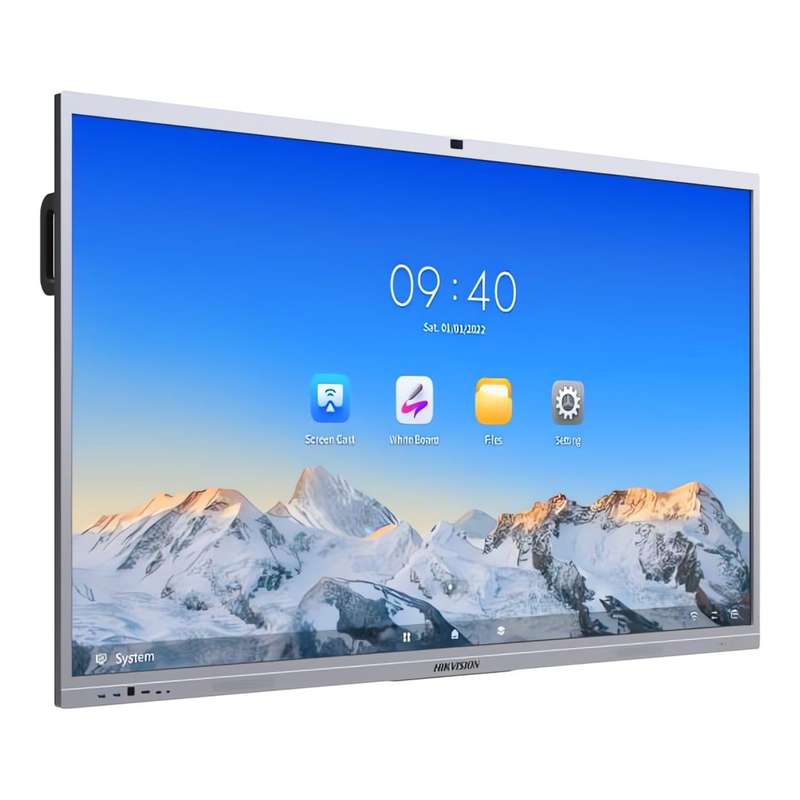

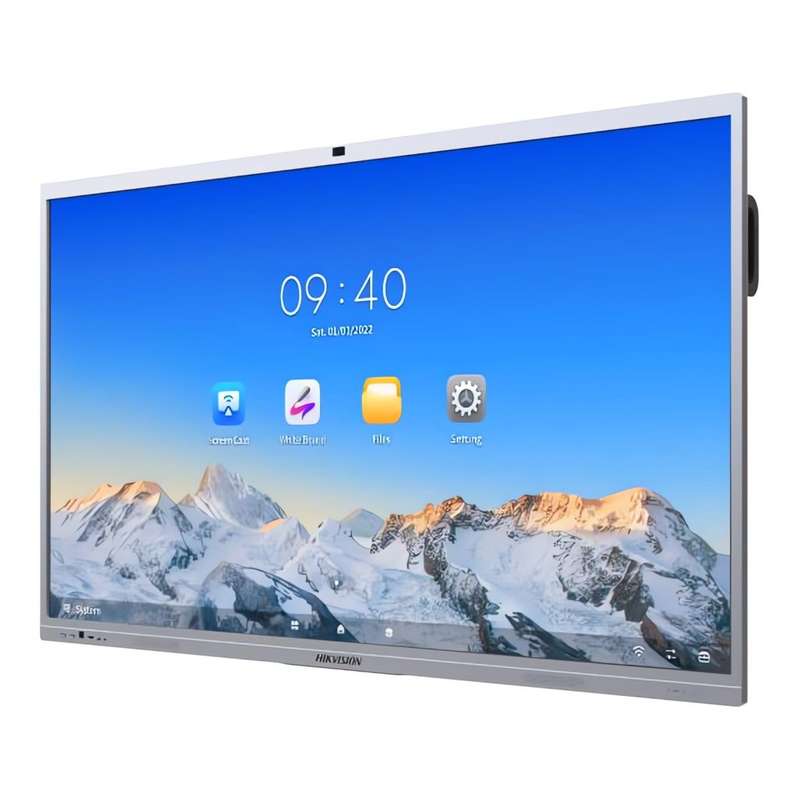

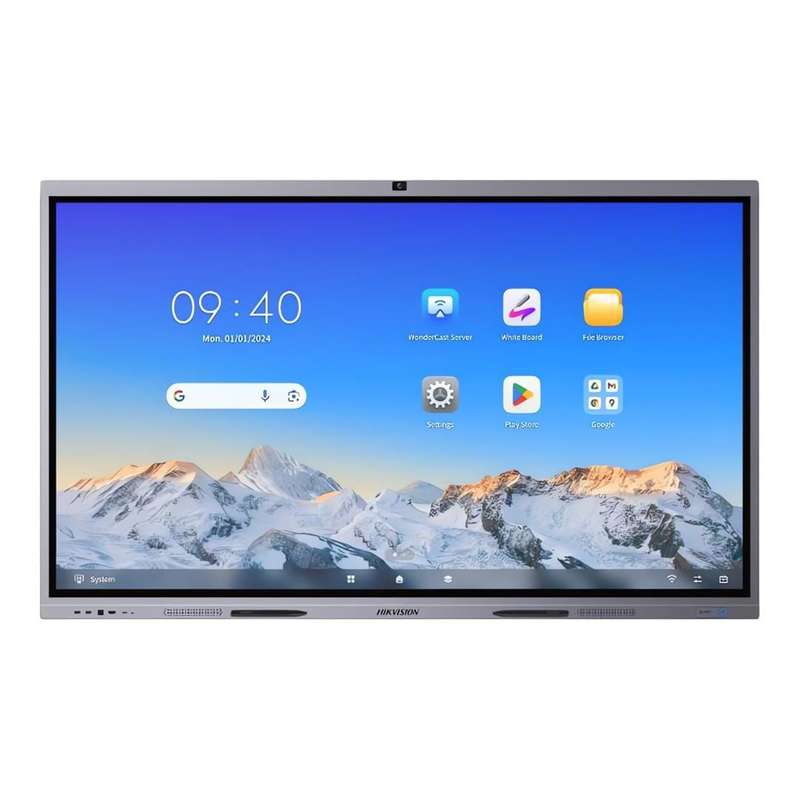

Hikvision 86-inch 4K UHD Interactive Large Format Display DS-D5C86RB/B
Features
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (Optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
Technical Specification
Product: Hikvision DS-D5C86RB/B Large Format Display
Product design: Interactive flat panel
Display diagonal: 2.18 m (86")
Display resolution: 3840 x 2160 pixels - 60Hz
HD type: 4K Ultra HD
Display: Infrared Touchscreen, Up to 50-point multi-touch
Touch response Time: 2 ms
Minimum touch object: 1.5 mm ( 90% touching area)
Touch precision: ± 0.5 mm ( 90% touching area)
Touch resolution: 32767 × 32767
Aspect ratio: 16:9
Brightness: 400 cd/m2 (Typ.)
Contrast ratio: 5000:1 (Static) ; 30,000:1 (Dynamic)
Response time: 5 ms
Backlight technology: DLED
Panel type: VA
Surface hardness: 9H (Pencil) ; 7 (Mohs)
Surface glass: Anti-Glare Glass
Surface haze: 25% Haze
Glass bonding method: Zero Lamination
Working duration: 7 × 16 H
Transmittance: 88% ± 3
Lifespan: 50,000 hours
Operation system: Android 13.0
Memory: 8 GB
Built-in storage: 128 GB
Processor: Quad-core Cortex-A76 x 4 (2.4 GHz) and quad-core Cortex-A55 x 4 (1.8 GHz)
GPU: Mali-G610 MC4
HDCP version: 2.3
Camera pixel: Pixel 48MP for Photos & 8 MP for Video
Camera function: Support intelligent switching between Android system, OPS, and PC.
Field angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
Distortion: 2.5%
Camera resolution Ratio: Up to 4K
Microphone specification: Omni-directional 8-array layout
Mic function: Echo reduction and smart noise-cancellation
Voice distance: 12 m
Sampling rate: 32 K
Mic depth: 16 bit
Loudspeaker: Built-in 2 × 20 W+25W loudspeaker
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
Wireless: Wi-Fi AP & Station, 2.4G/5G
NFC: Support screen mirroring by Android phones
VESA mount: 800 x 600 mm
Weight: 65.13 kg
Warranty: 1-Year Carry-in
Ports
Video & audio input: 3x HDMI In (HDMI 2.0), 1x VGA In, 1x DP In (DP 1.2), 1x Audio In
Video & audio output: 1x HDMI Out (HDMI 2.0), 1x Audio Out, 1x SPDIF Out
Control interface: 3x TOUCH-USB 3.0, 1x RS232
Network Interface: 2x LAN (1000 Mbps)
Data Transmission Interface: 4x USB 3.0, 1x USB 2.0, 2x Type-C (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
