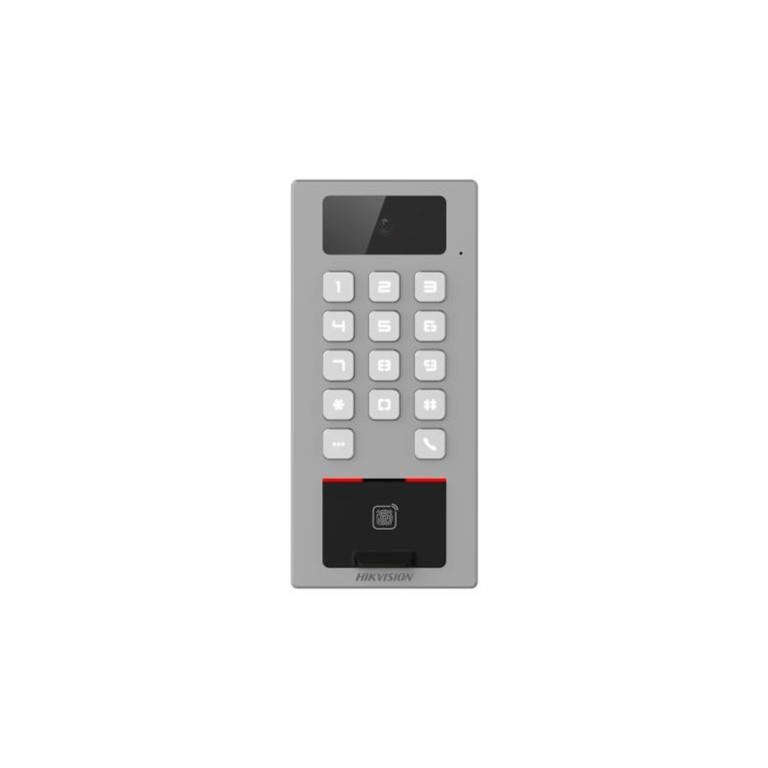

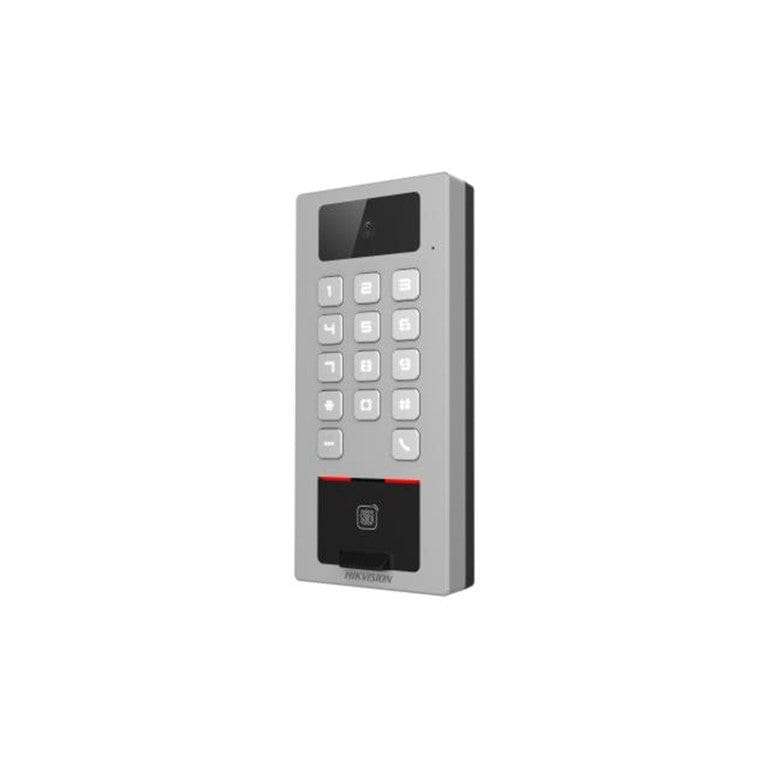

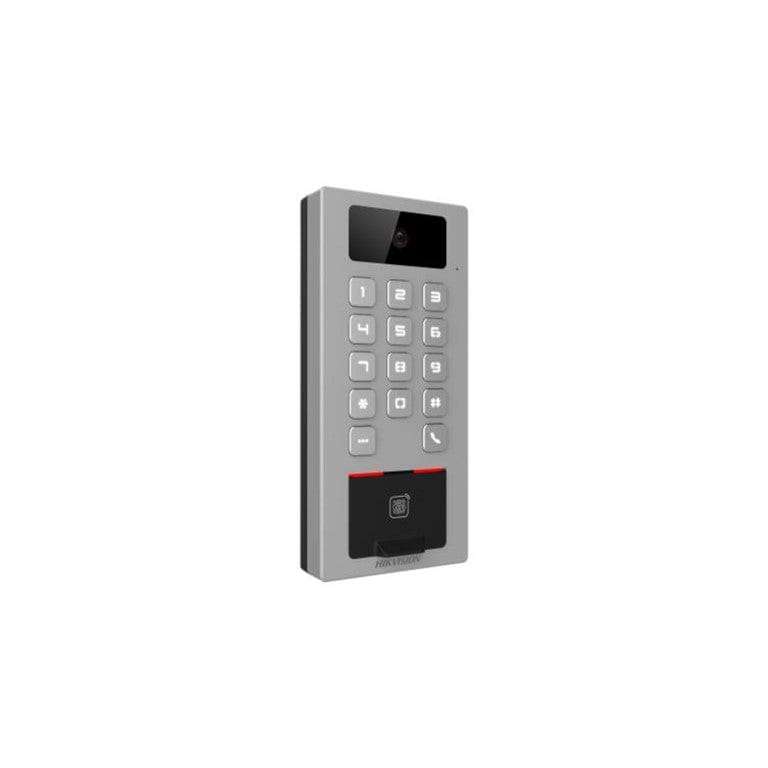

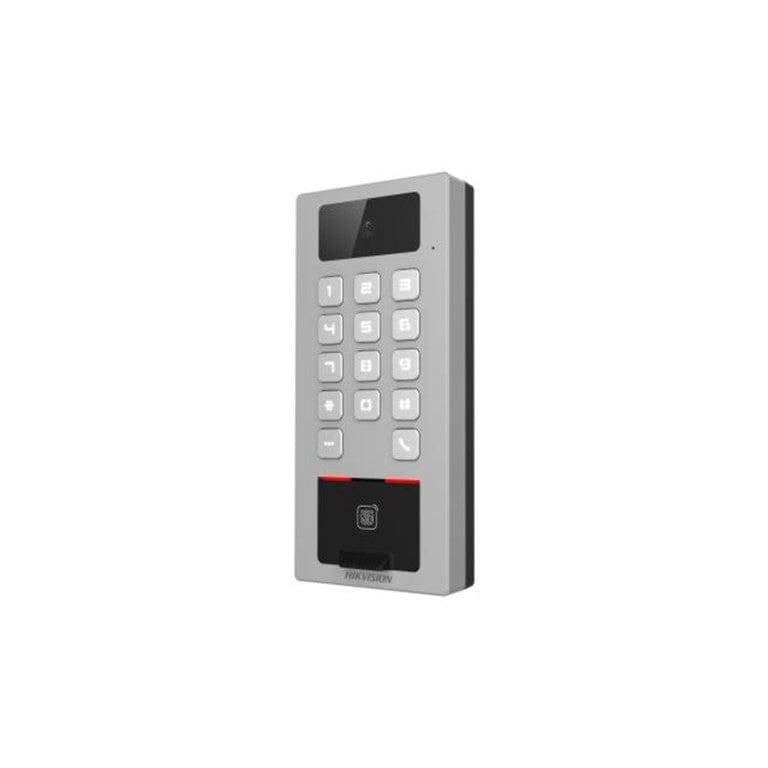

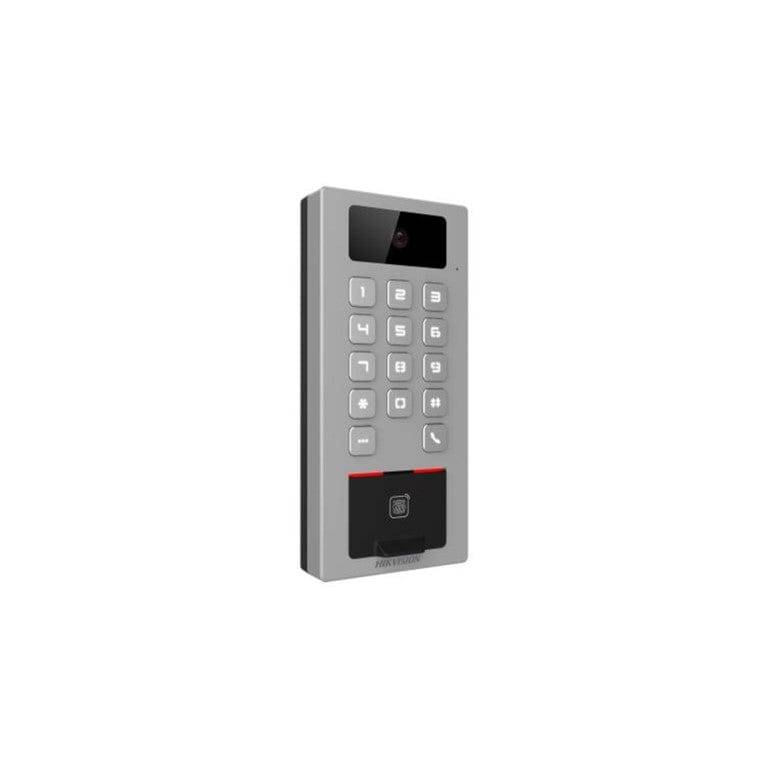

Hikvision Access Control Terminal DS-K1T502DBFWX-C

Features

• Manage access control and intercom functions in one device
• IP65 & IK09 protections, as well as increased stability with zinc alloy materials
• Supports multiple authentication methods (card, fingerprint, PIN, etc.)
• Remote control via the Hik-Connect mobile app
• Connects to external access controller via Wiegand protocol
• Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
• RS-485 communication for connecting external card reader and calling elevator
• Supports AP mode
• Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
• Supports up to 256 GB SD card memory
• Supports PIN settings under platform mode and local mode
• Setting the priority of wired network and wireless network is available
• Power Supply required: 1 A (12 VDC to 24 VDC)

Specification

Interface

• Network Interface: 1
• Lock Control: 1
• Exit Button: 1
• Door Contact Input: 1
• Alarm Input: 1
• Alarm Output: 1
• TAMPER: 1
• RS-485: 1
• Wiegand: 1 (Input and output)
• SD Card Slot: 1

Capacity

• Fingerprint Capacity: 10,000
• Card Capacity: 100,000
• Event Capacity: 300,000

Authentication

• Fingerprint Module: Capacitive fingerprint recognition
• Card Type: M1 card; DESfire card
• Card Reading Distance: 0 - 3 cm
