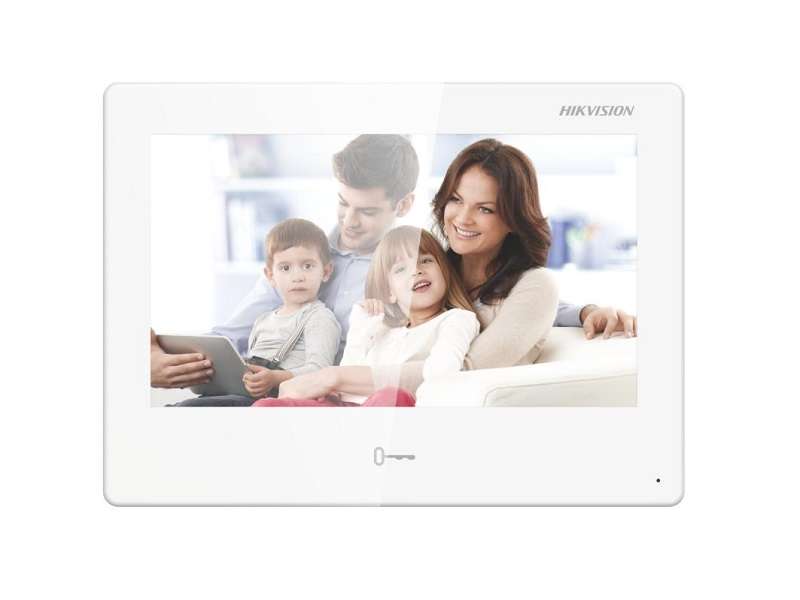

All-in-one Indoor Station
7-inch colorful touch screen with 1024 `d7 600 resolution
Built-in Android System
Supports Android APP installation
Support for three-party software integration
Built-in Hik-Connect APP
For all-in-one management of Hikvision's devices on tablet
System parameters
Operation system
Android 10.1
ROM
8 GB
RAM
2 GB
Processor
Embeded high performance processor
Display parameters
Screen size
7-inch
Operation method
Capacitive touch screen
Type
Colorful TFT
Resolution
1024 `d7 600
Video parameters
Lens
/
Resolution
/
FOV
/
Wide dynamic range (WDR)
/
Video compression standard
/
Focal length
/
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711U, G.711A
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
Message capacity
200 captured pictures, 200 alarm records
Notice capacity
200
Linked indoor extensions capacity
16
Linked network camera capacity
16
Linked doorphone capacity
17
Network parameters
Network protocol
TCP/IP, SIP, RTSP
Wi-Fi
2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
/
3G/4G
/
Zigbee
/
Device interfaces
Alarm input
8
Network interface
1 RJ-45 10/100 Mbps self-adaptive
TAMPER
/
RS-485
1 RS-485 (Half duplex)
TF card
Support TF card, up to 128 G
Alarm output
1
Lock control
1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
General
Button
/
Installation
Surface mounting
Indicator
/
Weight
Net weight: 419.3 g
Gross weight: 694 g
Protective level
/
Working temperature
-10 `b0C to 50 `b0C (14 `b0F to 122 `b0F)
Working humidity
10% to 90% (no-condensing)
Dimension (W `d7 H `d7 D)
187 mm `d7 137 mm `d7 25.7 mm (7.36" `d7 5.39" `d7 1.01")
Battery
/
Power supply
12 VDC, 1 A, IEEE802.3af, standard PoE
Application environment
Indoor
Power consumption
12 W
Language
English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
