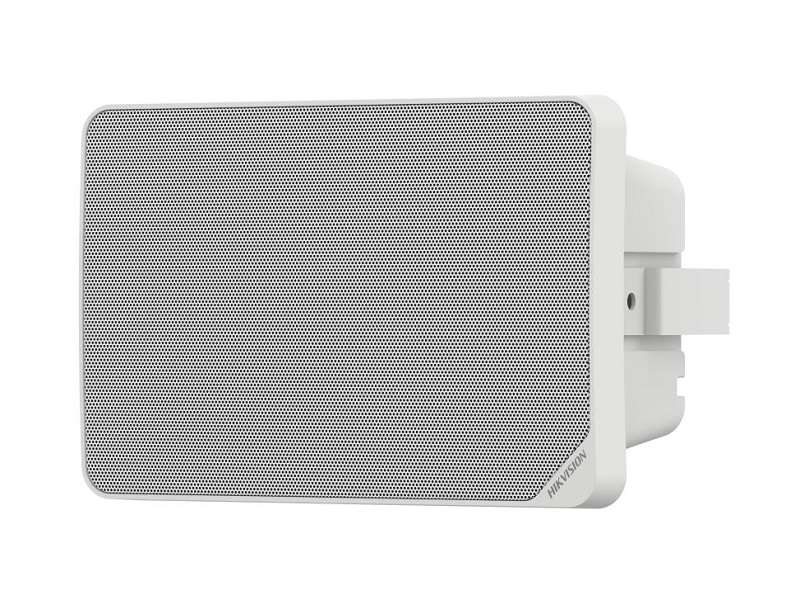

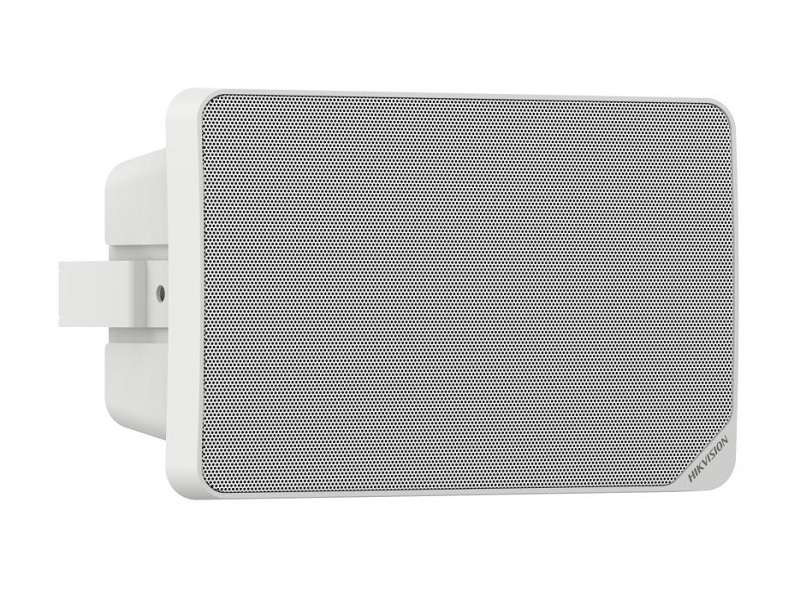

Analog Cabinet Speaker 20W
By using U-brackets, the installation surface angle can be adjusted for convenient installation
Support horizontal and vertical installation
Speaker
Rated Power
70 V: 5 W/10 W/15 W/20 W
100 V: 5 W/10 W/15 W/20 W
Impedance
8 `d9
Max. Acoustic Pressure
103 dBSPL
Sensitivity(1 m, 1 W)
90 dB `b1 3dB
Direction
All directions
Frequency Response
130 Hz to 17.5 kHz
Speaker Unit
5.25 `d7 1
Interface
Audio In
Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 `d9 `d7 1
General
Material
Main body&Front cover`a3`baplastic, bracket: metal
Operating Temperature
-30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
Operating Humidity
`a3`bc90% (No condensation)
Dimension
268.4 mm `d7 180.4 mm `d7 125.12 mm (10.57" `d7 7.1" `d7 4.93")
Package Dimension
340 mm `d7 306 mm `d7 180 mm (13.39" `d7 12.05" `d7 7.09")
Weight
Approx. 1.5 kg (3.3 lb.)
Color
White
With Package Weight
Approx. 2 kg (4.4 lb.)
Packing List
Device `d7 1
U-shaped bracket `d7 1
Screw pack `d7 1
Installation sticker `d7 1
Regulatory Compliance and Safety Information `d7 1
