Hikvision AX Pro 868MHz Wireless Alarm Kit DS-PWA96-KIT-WE
AX PRO supports Wi-Fi, TCP/IP, and GPRS/3G/4G communication methods. It also supports Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro and Hik-Central, which is applicable to the scenarios of market, store, house, factory, warehouse, office, etc.
Features
- TCP/IP, Wi-Fi, and GPRS/3G/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 16 wired zones, 2 wired outputs, 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads. The capability varies according to the model of device.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Uploads alarm reports to ARC
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery or 12v 7Ah storage battery depends on model of device
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

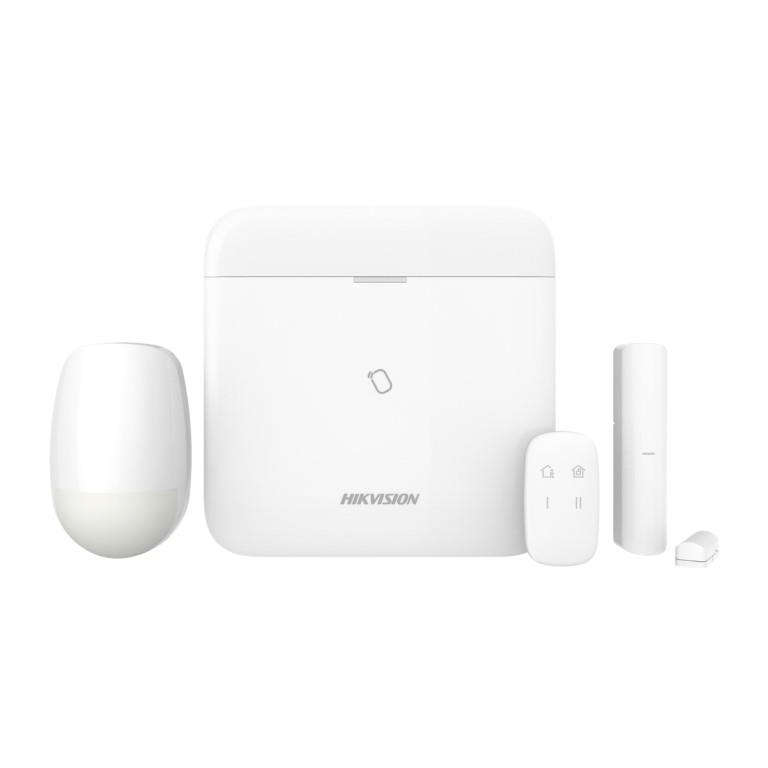

Kit Includes
- 1x DS-PWA96-M-WE
- 1x DS-PKF1-WE
- 1x DS-PDP15P-EG2-WE
- 1x DS-PDMC-EG2-WE
Technical Specification
Software features
Tag: 48
Area: 32
Zones: 96 (up to 48 PIRCAMs)
Onboard video clips: 4
Installer: 1
User: 46
Admin: 1
Voice Prompt: Supported
Loudspeaker built in: Supported
Tag reader built in: Supported
Memory Log stored: 5000
Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware upgrade: APP/Web Portal
Arm modes: Away/Stay
Automatic Arm/Disarm Timers: Supported
Forced Arming with Open Zones: Supported
Diagnostics via the APP or Web: Supported
ARC protocol: SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685): Supports video verification and remote control
User APP for operating: Supported
Installer APP for programming: Supported
Web server for maintenance (offline configuration)Supported
Hardware features
RS232 output: Supported
SIM slot: Dual
RF transmission
Two-way Wireless Communication: Support
RF Frequency: 868Mhz
Wireless Security: Frequency Hoping 128 AES Encryption
3/4G on board: Supported
Electrical characteristics
Power supply: Built in power supply
Battery type: Built in on board Battery Li
Battery life span: Up to 16 hours
Wireless transmission
Wired network: Supported
Wi-Fi Standard: Supported
Display
LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
Operation temperature: -10 °C to +55 °C
Shell material: Plastic
Dimension(WxHxD): 170.0 mm x 170.0 mm x 38.6 mm
Weight: 557.5 g
Color: White
Device management
Keyfob: 48
Wireless sounder: 6 (3 internal+3 External)
Keypad: 8 (Including Tag reader)
Wireless Repeater: 4
Multi Transmitter: 6
PIR Cam: Supported
