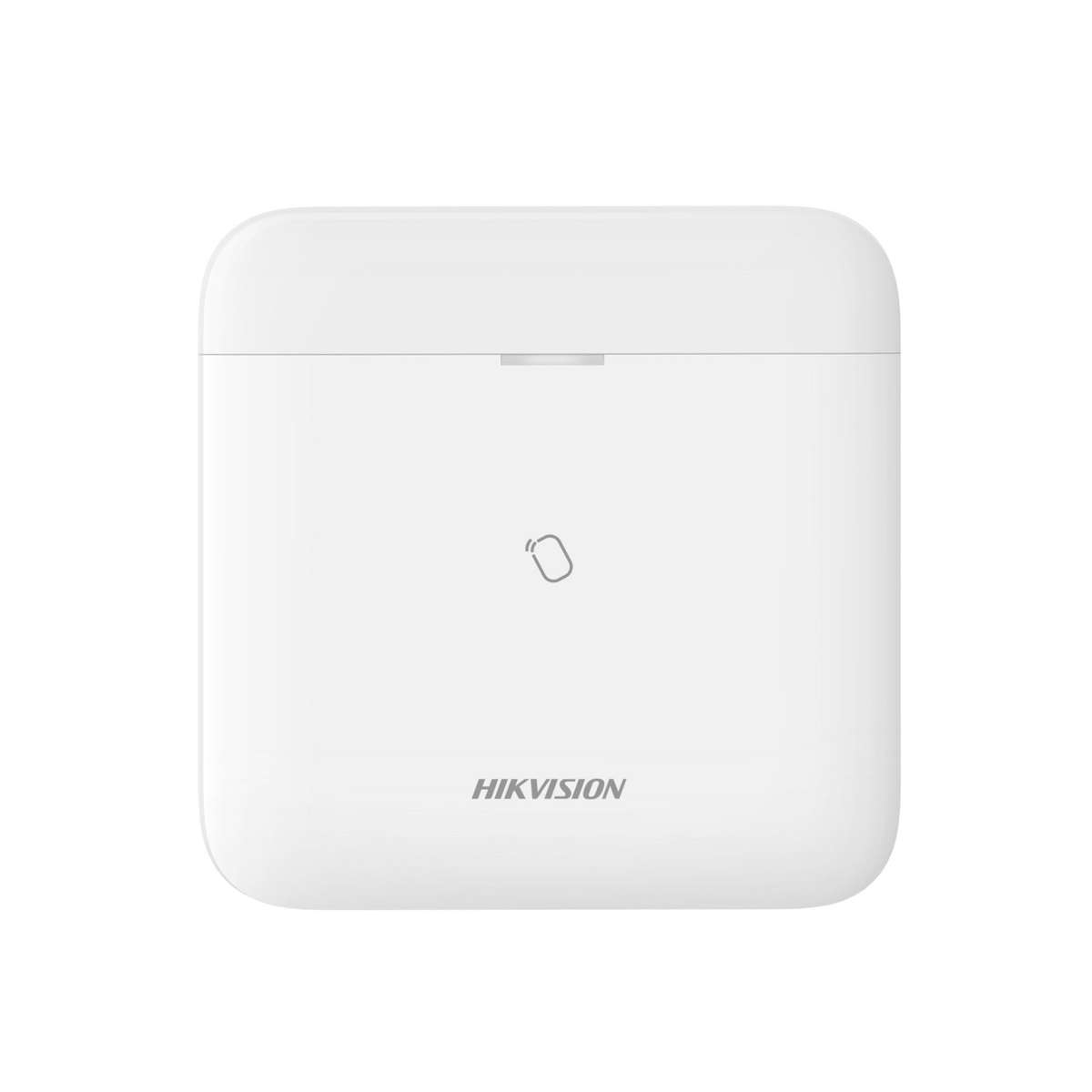

Hikvision AX PRO 96 Zone Control Panel 868MHz

Hikvision DS-PWA96-M-WE (0-STD) AX PRO Wireless Alarm Control Panel

The Hikvision DS-PWA96-M-WE is a powerful AX PRO wireless alarm control panel designed for professional home, office, retail, warehouse, and commercial security installations. As the central hub of the AX PRO alarm system, it connects and manages wireless detectors, keyfobs, keypads, sounders, tag readers, repeaters, and PIRCAM devices for complete intrusion protection.

Built with Hikvision's advanced Tri-X and Cam-X wireless technology, the DS-PWA96-M-WE provides long-range wireless communication with secure two-way transmission and AES-128 encryption. It supports multiple communication paths, including TCP/IP, Wi-Fi, and 3G/4G, helping keep the system connected and able to send alerts even when one communication method is unavailable.

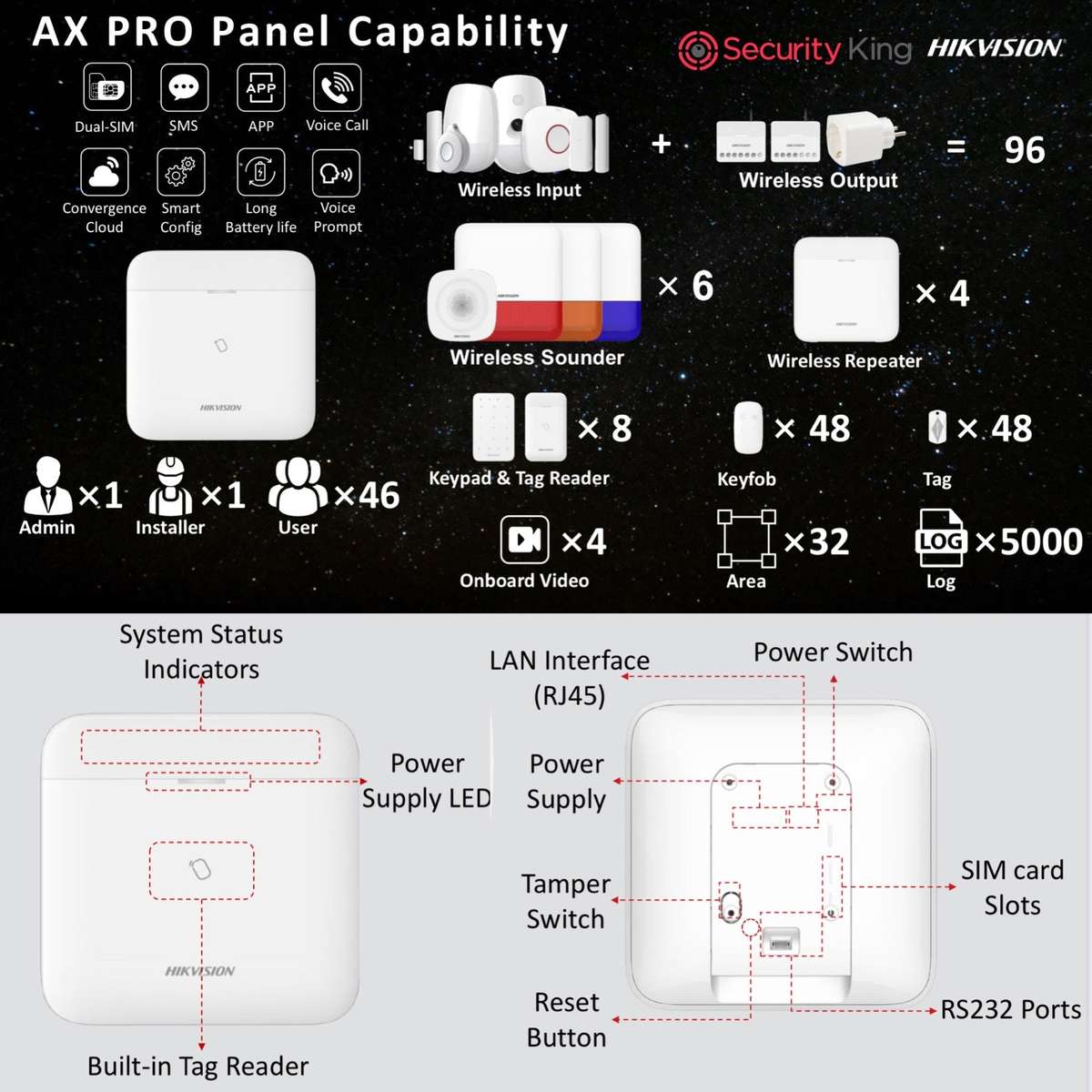

The panel supports up to 96 wireless zones or outputs, making it suitable for both smaller alarm systems and larger installations requiring multiple areas and devices. With support for 32 areas, 48 users, 48 keyfobs, 6 wireless sounders, 4 repeaters, and up to 8 tag readers or keypads, the DS-PWA96-M-WE offers strong flexibility for scalable security projects.

The system can be configured and managed through Hik-Connect, Hik-ProConnect, web client, iVMS-4200, or Convergence Cloud, depending on user access level. It also supports push notifications, phone call alerts, alarm video clips via app or email, video verification, remote control, and ARC communication via SIA DC-09, Contact ID, ISUP, and ISAPI protocols.

Build your required system!

Key Features

• AX PRO wireless alarm control panel

• 868MHz wireless communication

• Supports TCP/IP, Wi-Fi, and 3G/4G network communication

• Tri-X and Cam-X wireless protocol support

• Two-way wireless communication with AES-128 encryption

• Supports up to 96 wireless zones/outputs

• Supports up to 48 PIRCAMs

• Supports up to 48 wireless keyfobs

• Supports up to 4 wireless repeaters

• Supports up to 6 wireless sounders

• Supports up to 8 tag readers and keypads

• Supports up to 32 areas

• Supports up to 48 users, including installer, administrator, and standard users

• Built-in tag reader and loudspeaker

• Voice prompt support

• LED indicators for system status

• App, web, and cloud-based configuration

• Push notification and phone call alarm alerts

• Supports video verification and remote control

• Supports SIA DC-09, Contact ID, ISUP, and ISAPI reporting

• Built-in 4520mAh lithium backup battery

• Up to 12 hours backup battery operation under normal conditions

• Compact white housing

• Ideal for homes, shops, offices, warehouses, schools, and commercial alarm installations

Why Choose This Alarm Panel?

The Hikvision DS-PWA96-M-WE is an excellent choice for users who need a scalable, wireless, and intelligent alarm system hub. With support for up to 96 zones, secure encrypted communication, multiple network options, app-based control, and professional monitoring compatibility, it delivers a reliable foundation for a complete Hikvision AX PRO security system.
