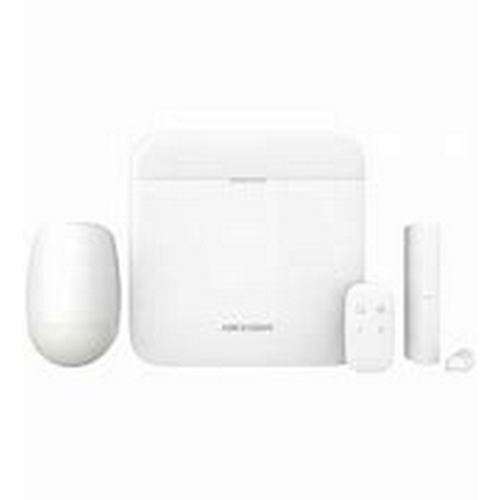

Hikvision AX PRO Kit DS-PWA64-KIT-WE

Hikvision AX PRO Kit DS-PWA64-KIT-WE

Specification

Software features

• Tag: 32
• Area: 16
• Zones: 64 (up to 48 PIRCAMs)
• Installer: 1
• User: 30
• Admin: 1
• Voice Prompt: Supported
• Loudspeaker built in: Supported
• Memory Log stored: 5000
• Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Firmware upgrade: APP/Web Portal
• Arm modes: Away/Stay
• Automatic Arm/Disarm Timers: Supported
• Forced Arming with Open Zones: Supported
• Diagnostics via the APP or Web: Supported
• ARC protocol:

  SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

  Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

  Supports video verification and remote control

• User APP for operating: Supported
• Installer APP for programming: Supported
• Web server for maintenance (offline configuration): Supported

Hardware features

• RS232 output: Supported
• SIM slot: Single

RF transmission

• RF Frequency: 868Mhz
• Wireless Security: Frequency Hoping 128 AES Encryption
• GPRS on board: Supported

Electrical characteristics

• Power supply: Built in power supply
• Battery type: Built in on board Battery Li
• Battery life span: Up to 16 hours

Wireless transmission

• Wired network: Supported
• Wi-Fi Standard: Supported

Display

• LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Operation temperature: -10 °C to +55 °C
• Shell material: Plastic
• Dimension(WxHxD): 170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
• 557.5 g(19.7 oz)
• Color: White

Device management

• Keyfob: 32
• Wireless sounder: 4 (2 internal+2 External)
• Keypad: 8 (Including Tag reader)
• Wireless Repeater: 2
• Multi Transmitter: 4
• PIR Cam: Supported
