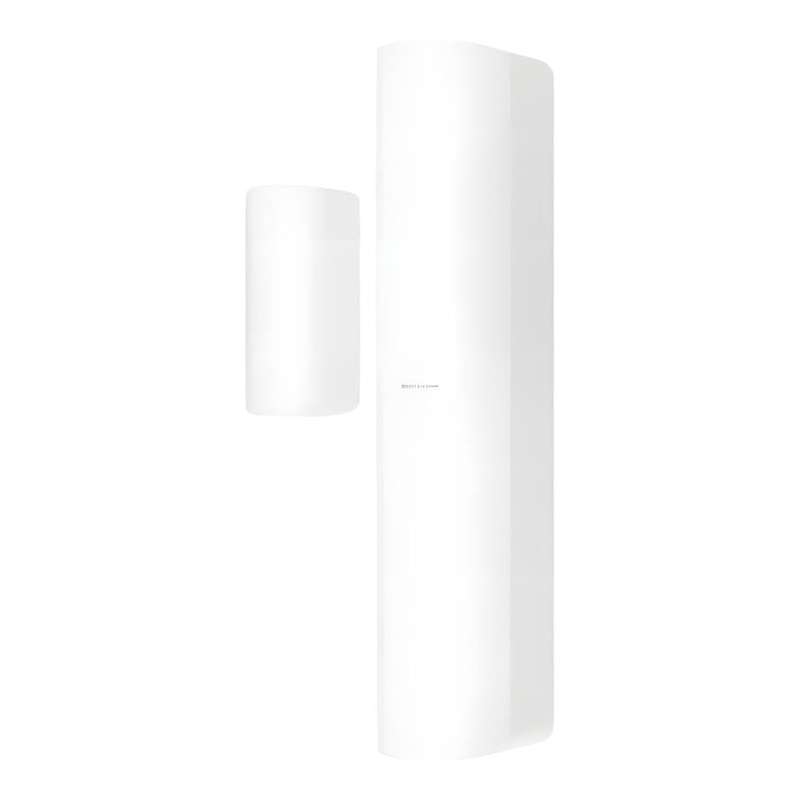

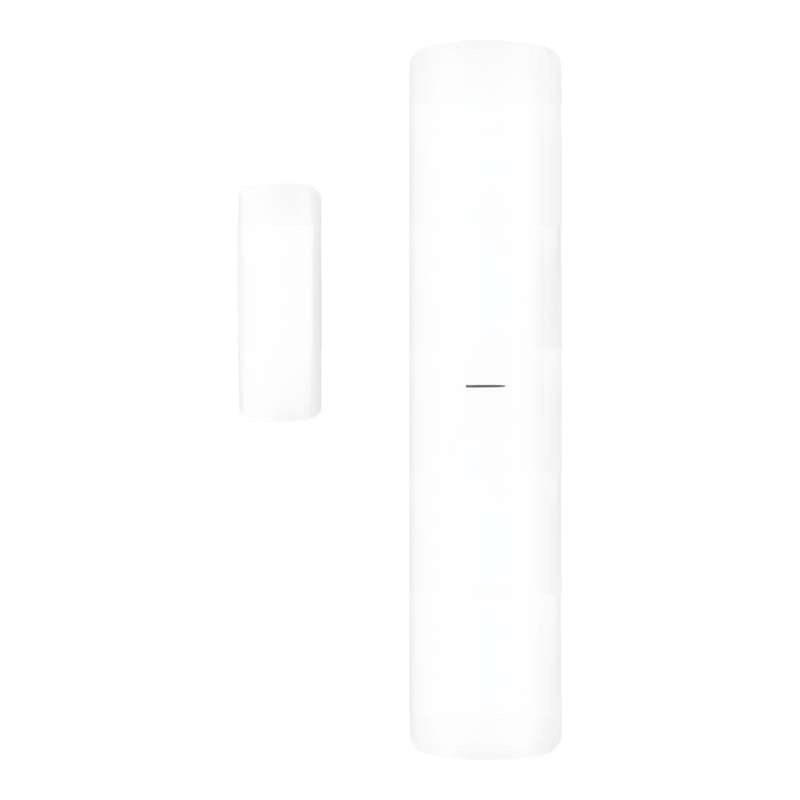

Hikvision AX Pro Series Wireless Magnet Shock Detector DS-PDMCK-EG2-WE

Features

• Magnetic contact combined with shock and tilt detection
• 2 wired inputs extension
• Fully remote configurable through APP
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission

Technical Specification

Detection Performance

Detection Method: Opening Contact; Shock Sensor

Detection Gap: 43 mm Max

Sensitivity

• Shock detection: High, normal, low
• Tilt detection: Up to 25°

Feature

Digital Processing: Support

Tamper Protection: Front; Rear

Environment Temperature Indicator: Support

Signal Strength Indicator: Support

Interface

Alarm Input: Normally Closed; Normally Open; Impulse Count

Power Switch: Power up enrolling

LED Indicator: Green(MC), Orange(tilt), Red(shock), Blue(alarm)

Transmission

Transmission Technology: Tri-X Wireless

Transmission Method: Two-Way RF Wireless

Transmission Frequency: 868MHz

Transmission Security: AES-128 Encryption

Transmission Range(Free Space): 1.6 km

Frequency Hopping: Support

Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

Standard Battery Life: Up to 3 years (standby time)

Power Supply: Battery powered

Battery Type: 1x CR123A

Typical Voltage: 3V

General

Dimension(WxHxD)

• 22.5 mm × 103 mm × 23.2 mm
• 13 mm × 34.4 mm × 11.4 mm

Weight: 60g

Application Scenario: Indoor
