Hikvision AX Pro Series Wireless Multi IO Transmitter

Description:

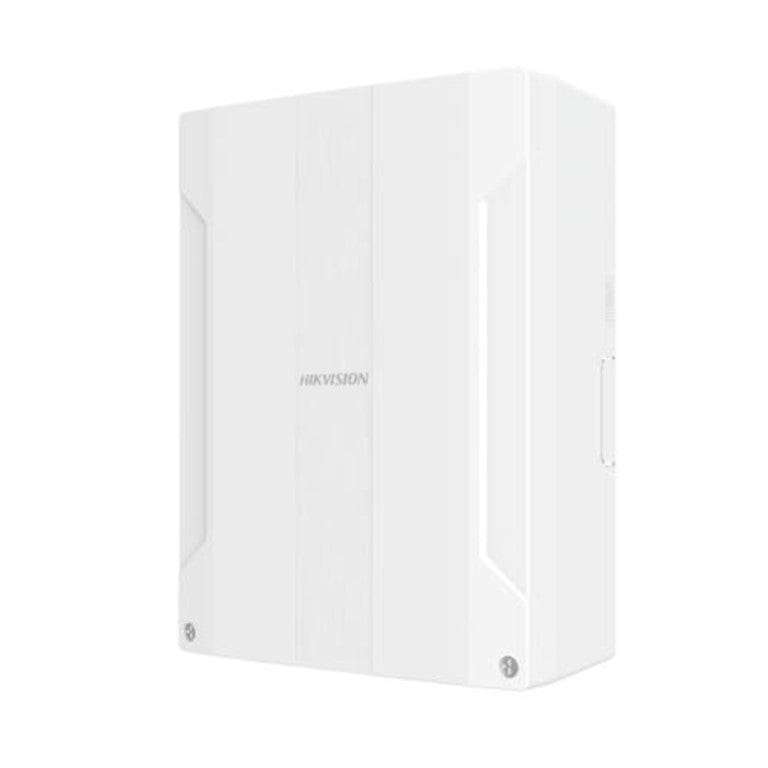

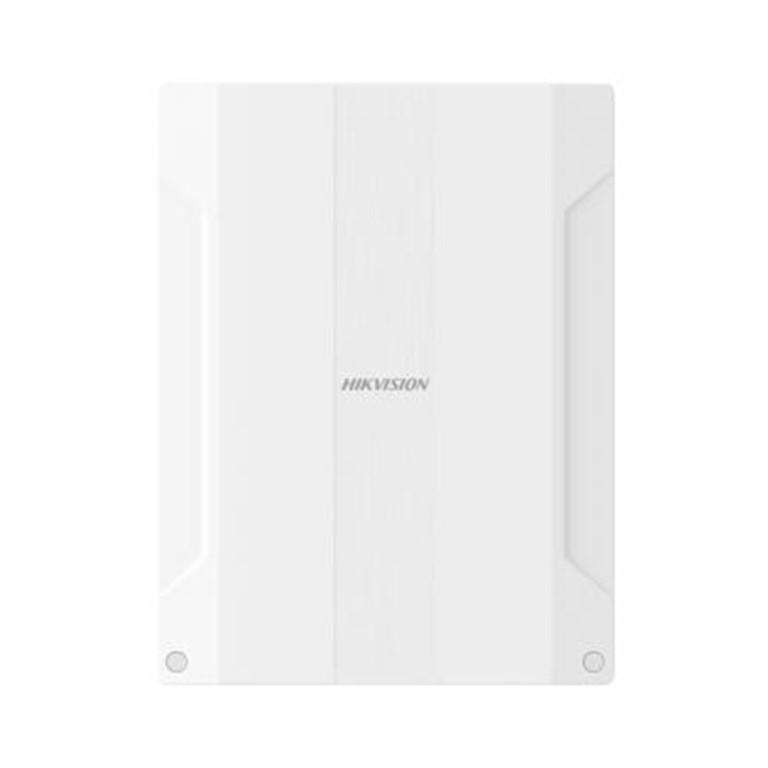

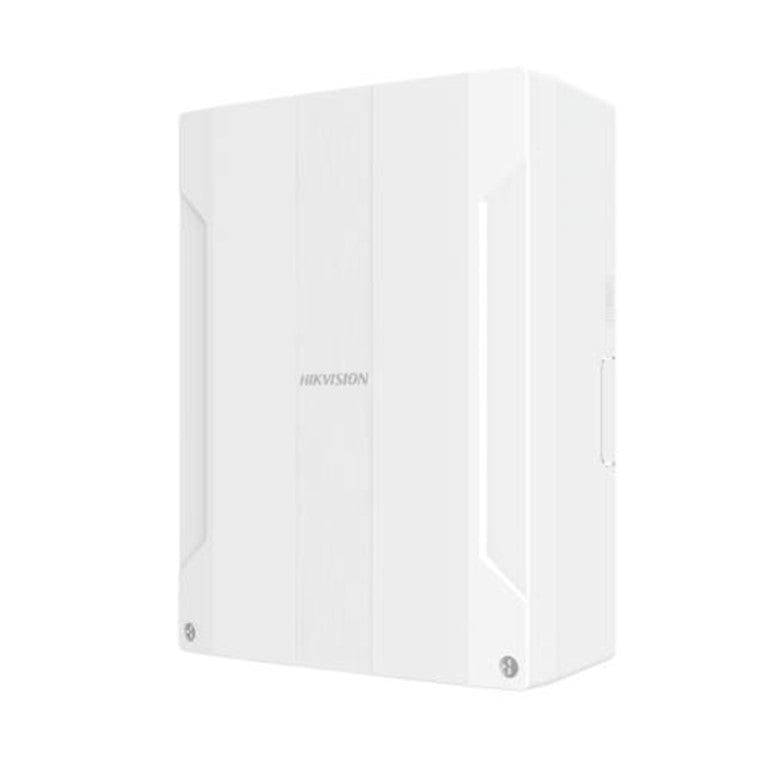

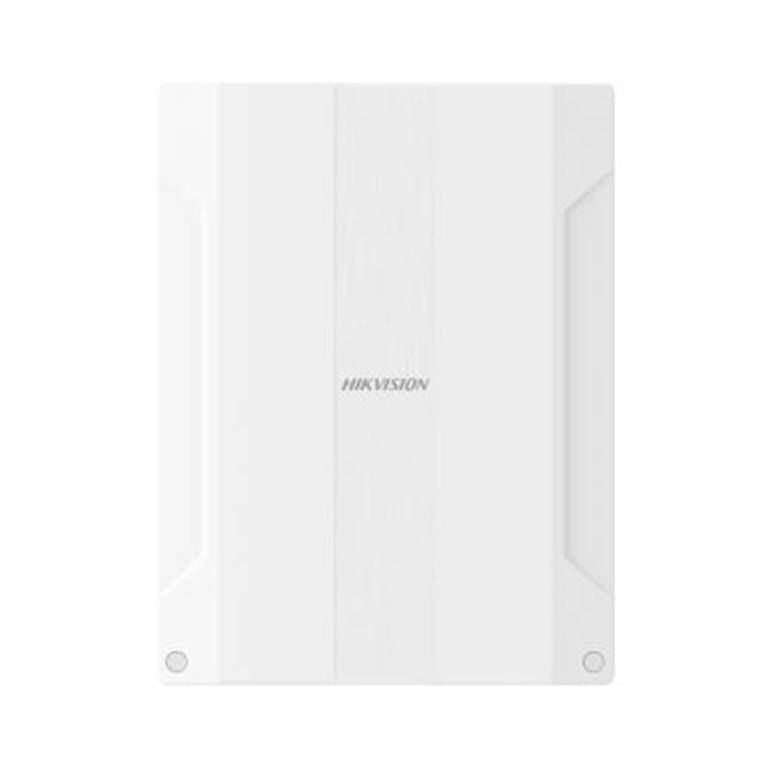

Hikvision AX Pro Series Wireless Multi IO Transmitter DS-PM1-I16O2-WE

DS-PM1-I16O2-WE wireless multi IO transmitter offers a connection of third party wired detectors like outdoor PIR, to AX PRO alarm system, the alarm types and zone parameters can be set through APP by installers easily. Under the situation when your want to update your security system to AXPRO with more innovated features, multi IO transmitter gives you a chance to rebuild your alarm system without changing existing wired detectors.

Features

868MHz two-way wireless communication
LED display, show the real status of device
With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
With two 12v power outputs, can be used to power up external wired detectors
Large space for back up storage battery
Technical Specification

Serial port: 1
Battery port: 1, 12 VDC input
Tamper-Proof: Front and rear
Power switch: 1
Alarm input: 16
Alarm output: 2
Power Output: 2 (12v, total1A)
Battery type: Compatible with 12v 7 Ah
Power supply: 100-240VAC, 30w
Battery life span: Up to 36 hours
RF frequency: 868MHz
RF method: Two-way communication
RF modulation: 2GFSK
RF distance: 1100m
Installation method: Wall Mounting
Dimension (WxHxD): 261 x 199 x 86.4mm
Shell material: Plastic
Colour: White
End of Line Resistance: 1k, 2.2k, 4.7k, 8.2k, NO/NC
