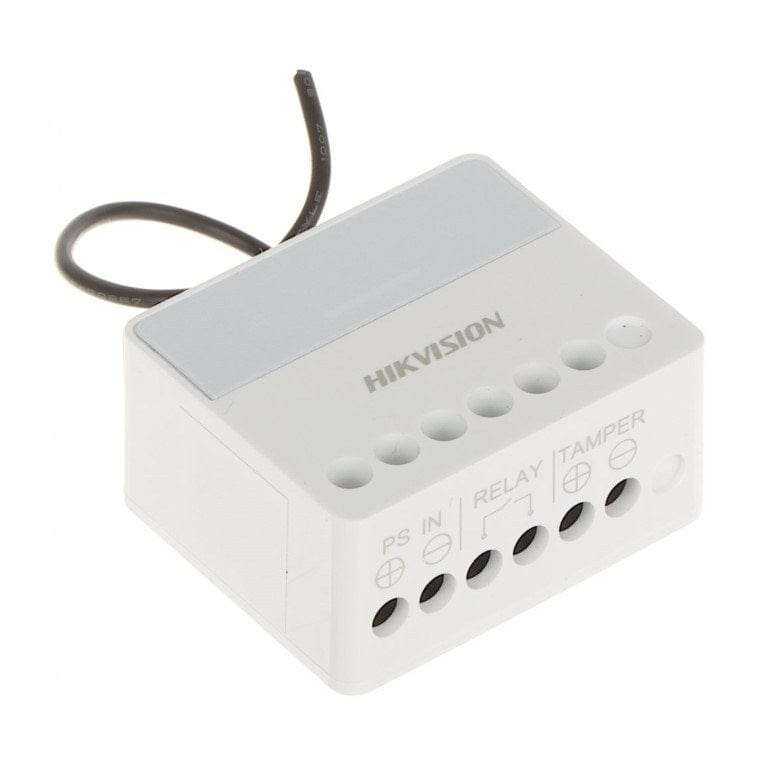

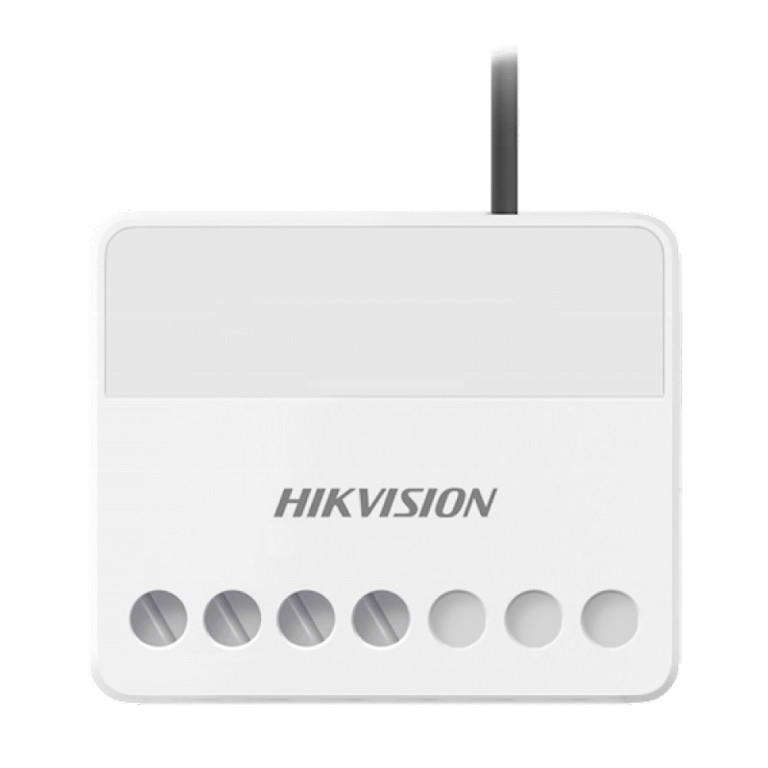

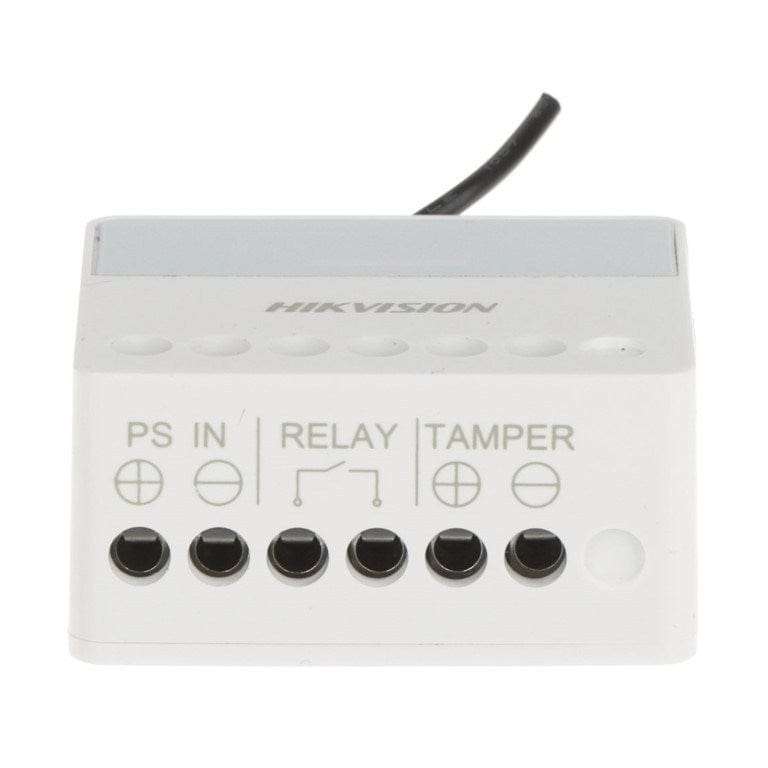

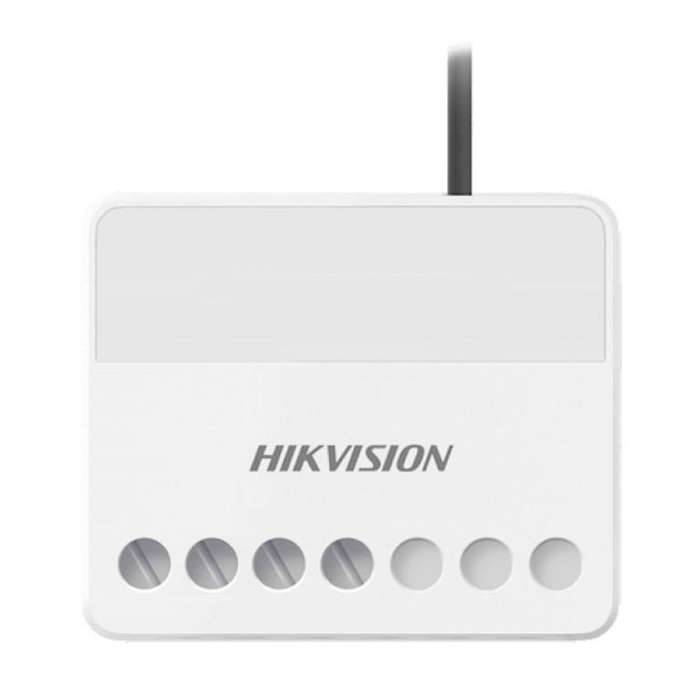

Hikvision AX Pro Series Wireless Relay Module DS-PM1-O1L-WE

DS-PM1-O1L-WE Relay Module is a device to control low-voltage electrical power supply.The device supports 7 to 24 VDC source and open/close circuit manually via APP/Keypad/Keyfob or automatically by linking to different system events. Also it has a tamper input for external appliances connection.

Features

• 868 MHz two-way wireless communication
• AES-128 encryption
• LED display, show status of device and replay on/off display
• Small case design, which can be put into hiding places easily
• Automation operating, one button turn on/off from APP/Keyfob/Keypad
• Setting scenarios by different events
• An alarm input for tamper, NO, NC

Technical Specification

Serial port: 1, for debug
Power supply: DC 7V to 24V
RF frequency: 868 MHz
RF method: Two-way communication
RF modulation: 2GFSK
RF distance: 1800 m
Wireless security: AES-128
Installation method: Wall-Mounting
Dimension (WxHxD): 38 mm x 25 mm x 18 mm
Shell material: Plastic
Colour: White
Scenario setting: By alarm, by operation, by fault, by schedule, by manual
Learning button: 1, for register
