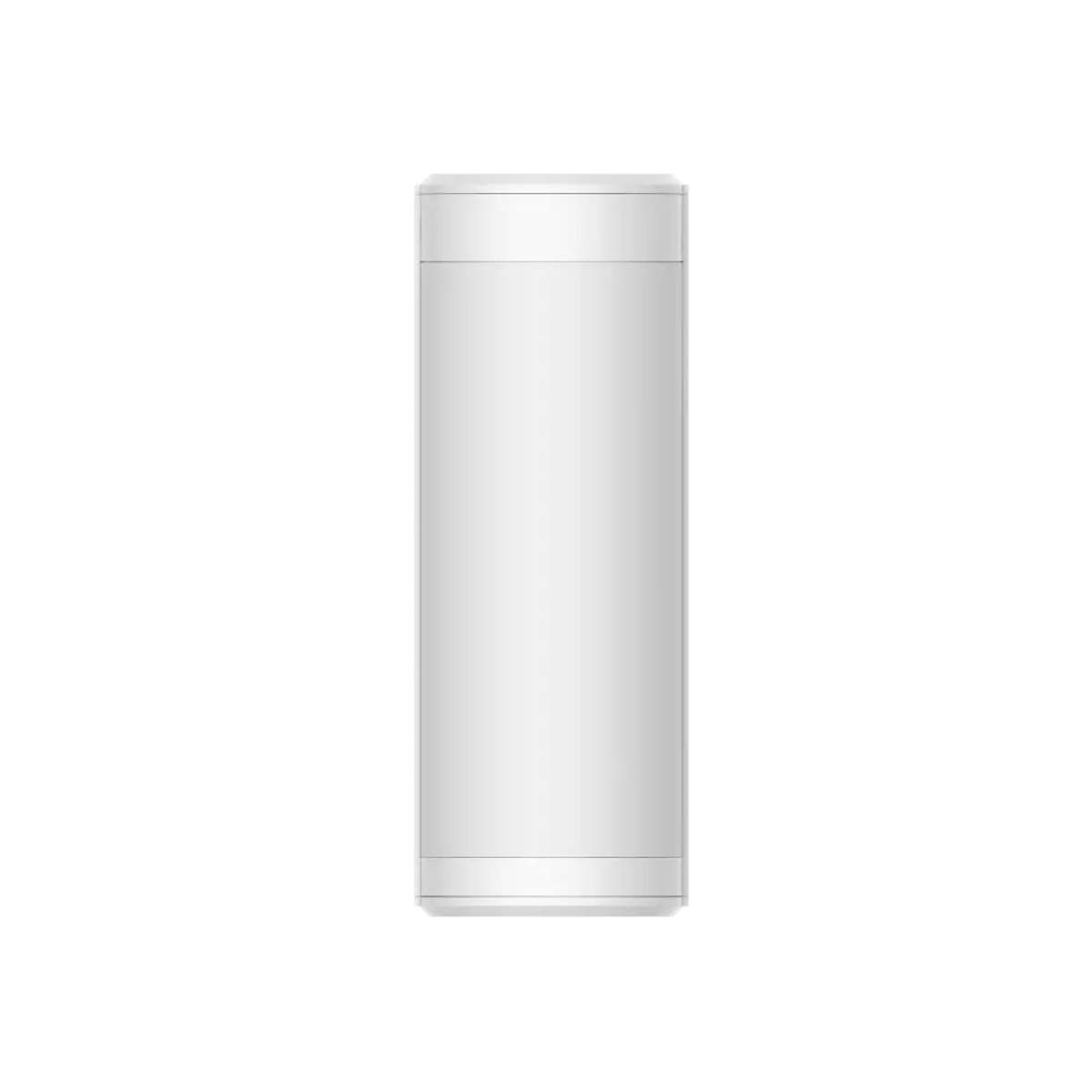

Hikvision DS-PDQP15AM-LM-WE AX PRO Wireless 180° Panoramic Detector
Short Description
The Hikvision DS-PDQP15AM-LM-WE is a wireless 180° panoramic outdoor detector designed for AX PRO alarm systems. With wide-angle PIR detection, active IR anti-masking, pet immunity, IP65 weather resistance, and reliable Tri-X wireless communication, it provides advanced perimeter protection for homes, businesses, and outdoor security applications.
Product Description
Secure outdoor areas with confidence using the Hikvision DS-PDQP15AM-LM-WE AX PRO Wireless 180° Panoramic Detector. Designed for professional intrusion detection, this detector provides wide 180° coverage with a detection range of up to 15 metres, making it ideal for protecting gardens, driveways, entrances, patios, boundary walls, and outdoor walkways.
The DS-PDQP15AM-LM-WE uses passive infrared detection with 40 detection zones to identify human movement accurately across a broad field of view. Its built-in active IR anti-masking function helps detect attempts to block or cover the sensor, adding an extra layer of security against tampering.
Built for outdoor installations, the detector features IP65 weather resistance, sealed optics, digital temperature compensation, and a strong white light filter of up to 20,000 lux. This helps maintain reliable performance in changing weather, bright sunlight, and challenging outdoor environments.
The device connects wirelessly to compatible Hikvision AX PRO systems using Tri-X two-way wireless technology with AES-128 encryption and frequency hopping to help protect against interference and jamming. With a wireless transmission range of up to 1.6 km in open space and battery life of up to 5 years, it offers flexible installation with low maintenance.
Key Features:
-
Wireless 180° panoramic outdoor detector
-
Designed for Hikvision AX PRO alarm systems
-
15 m detection range
-
180° wide-angle coverage
-
40 detection zones for accurate movement detection
-
Passive infrared detection technology
-
Active IR anti-masking protection
-
Pet immunity up to 40 kg
-
IP65 weather-resistant outdoor design
-
Digital temperature compensation
-
Sealed optics for improved outdoor reliability
-
White light filter up to 20,000 lux
-
Front and rear tamper protection
-
Tri-X two-way wireless communication
-
AES-128 encrypted wireless transmission
-
Frequency hopping against interference and jamming
-
Wireless range up to 1.6 km in open space
-
Multiple enrolment methods: power-up, remote ID, and QR code
-
Battery-powered with up to 5 years standby battery life
-
Wall-mount installation
Technical Specifications
Brand: Hikvision
Model: DS-PDQP15AM-LM-WE
Product Type: AX PRO Wireless 180° Panoramic Detector
Detection Method: Passive Infrared
Detection Range: 15 m
Detection Angle: 180°
Detection Zones: 40
Detectable Speed: 0.3 m/s to 2 m/s
Sensitivity: Auto / Low
Pet Immunity: Up to 40 kg
Anti-Masking: Supported
White Light Filter: 20,000 lux
Digital Temperature Compensation: Supported
Tamper Protection: Front and rear
LED Indicator: Blue for alarm, green and orange for masking
Transmission Technology: Tri-X Wireless
Transmission Method: Two-way RF wireless
Transmission Frequency: 868 MHz
Transmission Security: AES-128 encryption
Transmission Range: Up to 1.6 km in open space
Frequency Hopping: Supported
Power Supply: Battery powered
Battery Type: 5 × CR123A
Battery Life: Up to 5 years standby time
Operating Temperature: -25°C to 60°C
Operating Humidity: 10% to 90%
IP Rating: IP65
Dimensions: 75 mm × 202 mm × 73 mm
Weight: 512.5 g
Mounting Height: 0.8 m to 1.2 m
Mounting Method: Wall mount
Application: Outdoor
What's in the Box:
Ideal For:
-
Residential outdoor perimeter protection
-
Driveways and entrances
-
Boundary walls and garden areas
-
Patios and walkways
-
Commercial outdoor security
-
AX PRO wireless alarm installations
-
Early intrusion detection before entry points are reached
