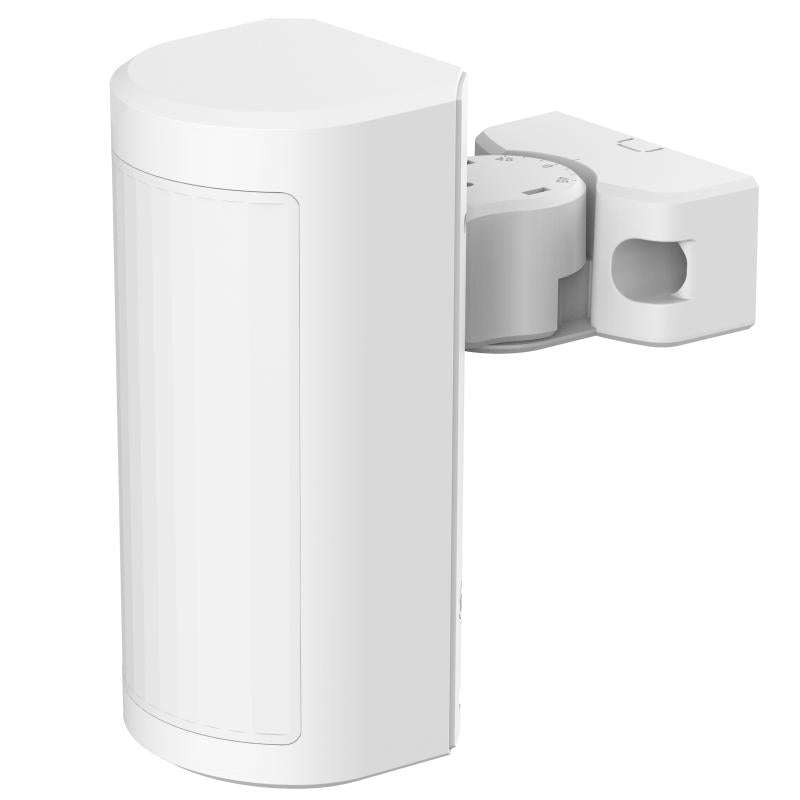

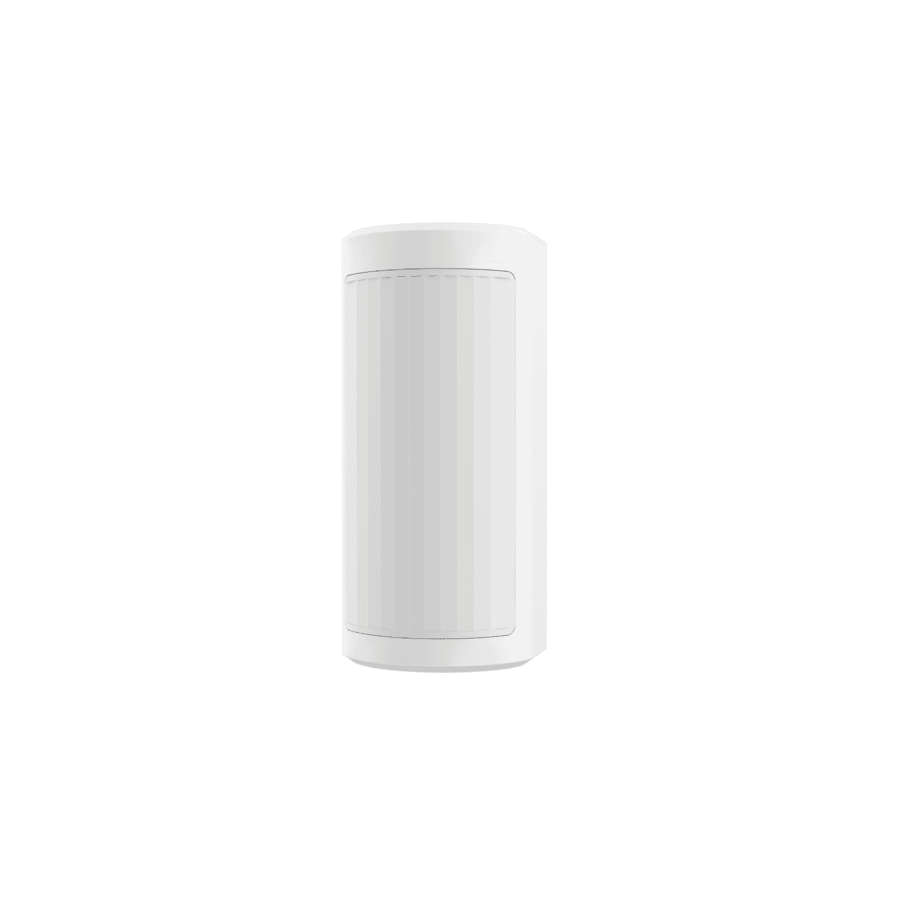

Hikvision DS-PDP18-HM-WE - AX PRO Wireless Double PIR Detector
The Hikvision DS-PDP18-HM-WE is a professional wireless double PIR detector designed for reliable indoor and outdoor intrusion detection. Built for Hikvision AX PRO alarm systems, this detector provides wide-area movement detection with strong wireless communication, making it ideal for homes, offices, shops, warehouses, outdoor walkways, entrances, garages, and perimeter protection zones.
With an 18m detection range and 90° coverage angle, the DS-PDP18-HM-WE is suitable for monitoring large spaces and approach areas. Its double PIR detection design helps improve detection accuracy while reducing unwanted false alarms when installed correctly.
The detector uses Hikvision's Tri-X two-way wireless technology, operating on 868MHz for stable communication with the AX PRO control panel. With up to 1.6km transmission range in open space, AES-secured wireless communication, frequency hopping, and signal strength indication, it is designed for dependable alarm performance in professional installations.
The DS-PDP18-HM-WE supports flexible mounting options, including high-mount installation from 2.5m to 3m and low-mount installation from 0.8m to 1.2m. Its IP65 weather-resistant housing allows it to be used in outdoor environments, while the included external bracket assists with correct positioning.
Key Features
-
AX PRO wireless double PIR detector
-
Suitable for indoor and outdoor use
-
18m detection range
-
90° detection coverage
-
Double PIR detection for improved reliability
-
868MHz two-way Tri-X wireless technology
-
Up to 1.6km wireless transmission range in open space
-
Frequency hopping against jamming
-
Signal strength indication
-
Fully remote configuration via app
-
Multiple enrolment methods: power-up, remote ID, and QR code
-
Adjustable high-mount and low-mount installation
-
IP65 weather-resistant design
-
External bracket included
-
Powered by 2 × CR123A batteries
-
Up to 5 years battery life, depending on usage and environment
Ideal For
-
Residential alarm systems
-
Outdoor perimeter protection
-
Driveways and entrances
-
Garages and carports
-
Warehouses and storage areas
-
Office buildings
-
Retail shops
-
Outdoor walkways and passages
-
AX PRO wireless alarm installations
Technical Specifications
-
Brand: Hikvision
-
Model: DS-PDP18-HM-WE
-
Product Type: Wireless Double PIR Detector
-
Alarm System Compatibility: Hikvision AX PRO
-
Detection Range: Up to 18m
-
Detection Angle: 90°
-
Wireless Technology: Tri-X Wireless
-
Transmission Frequency: 868MHz
-
Transmission Range: Up to 1.6km in open space
-
Mounting Height: 2.5m3m high mount / 0.8m1.2m low mount
-
Battery Type: 2 × CR123A
-
Battery Life: Up to 5 years
-
Protection Rating: IP65
-
Configuration: Remote app configuration
-
Installation: Wall or bracket mounting
Why Choose the Hikvision DS-PDP18-HM-WE?
The DS-PDP18-HM-WE is a strong choice for users who need reliable wireless motion detection in both indoor and outdoor areas. With double PIR detection, long-range Tri-X wireless transmission, IP65 protection, flexible mounting options, and app-based configuration, it provides a practical and professional detection solution for AX PRO alarm systems.
Installation Note
Professional installation is recommended to ensure correct mounting height, detection angle, wireless signal strength, battery setup, AX PRO enrolment, and zone configuration.
