Hikvision CLEARLINE GIGABIT SINGLE PORT RJ45 60V POE

Hikvision CLEARLINE GIGABIT SINGLE PORT RJ45 60V POE

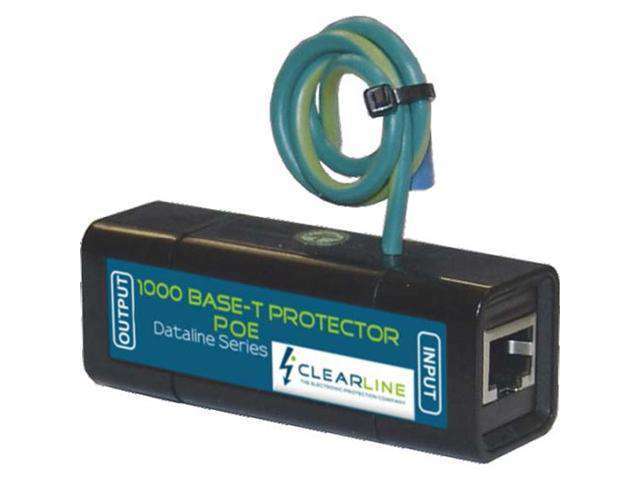

Gigabit Fast Ethernet Inline Protector Power over Ethernet - POE

Protects fast gigabit ethernet LAN equipment such as hubs, switches and network interface cards from induced lightning and electrostatic discharge. The devise is designed for indoor or outdoor use, inside a weatherproof enclosure.

Power over Ethernet (POE) is a technology that lets network cables carry electrical power. For example, a digital security camera normally requires two connections to be made when it is installed :

• A network connection, in order to be able to communicate with video recording and display equipment
• A power connection, to deliver the electrical power the camera needs to operate

However, if the camera is POE-enabled, only the network connection needs to be made, as it will receive its electrical power from this cable as well.

• Power over Ethernet (POE)
• All 8 lines protected
• Each pair supports 250 Mbits/s
• Negligible insertion loss
• Compatible to 100Base-T and 1000Base-T
• Compliant to IEEE 802.3u and IEEE 802.3 ab/af
• Dimensions : 77 × 25 × 28 mm
