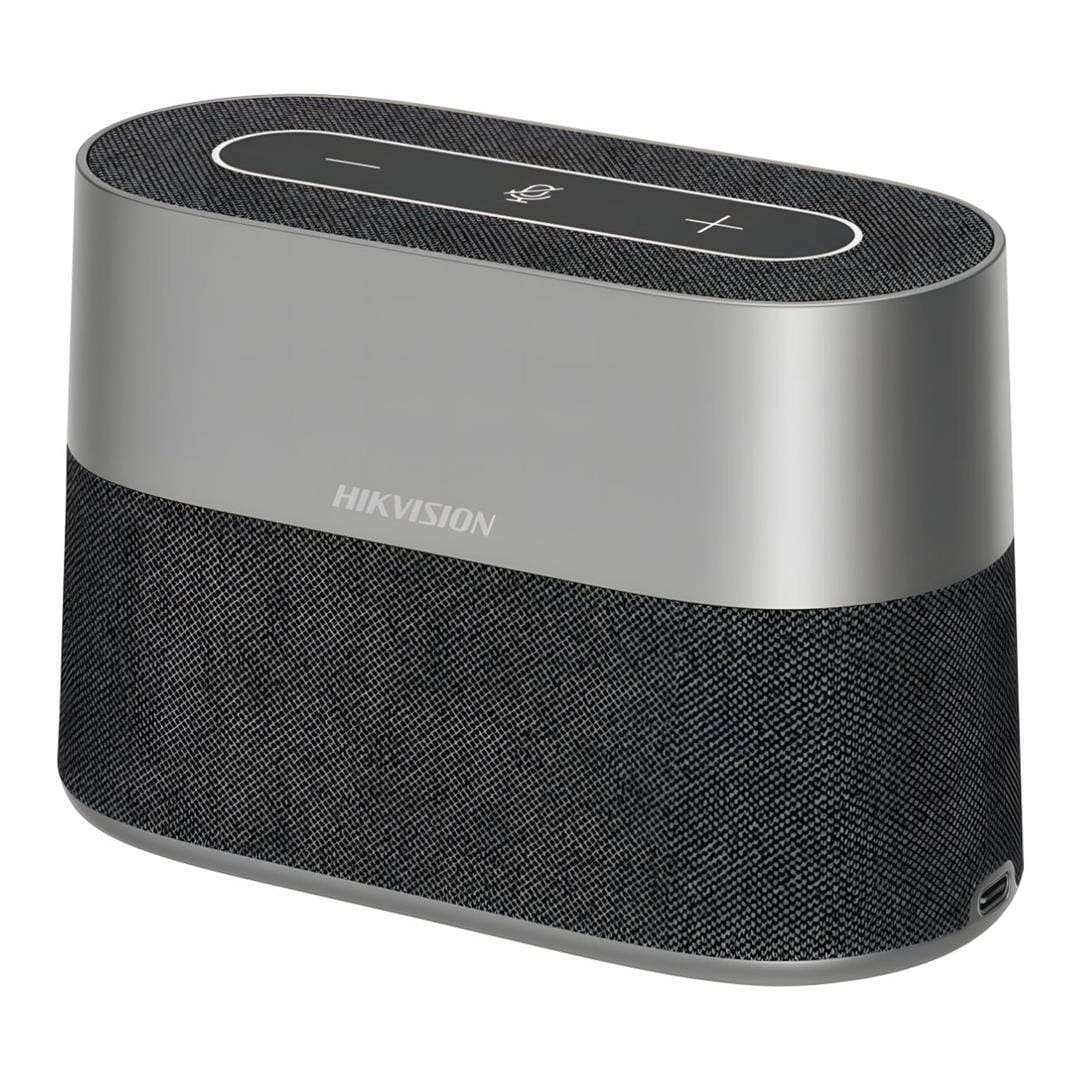

Hikvision Conferencing Sound Cube Speakerphone DS-UAC-S1V

Features:

• Adopts 8-mic array, picking up 360° clear sound with 5 meters range
• Adopts the HD speaker
• Supports steady and transient smart noise reduction, echo and squeal suppression, anti-reverberation to enhance speech quality and offer audio in high quality
• Supports USB cable connection, plug and play
• Compatible with leading online conferencing platform

Technical Specifications:

Microphone

Type MEMS
Direction 360° Omni-directional
Pickup Distance Up to 5 m radius
Amount 8
Frequency Response 100 Hz to 10 kHz
Sensitivity -38 dBV/Pa
SNR 85 dB
Sampling Rate 16 kHz / 32 kHz / 48 kHz
Dynamic Range 102 dB
Acoustic Overload Point (AOP) 130 dBSPL
Power Supply Rejection Ratio (PSRR) 60 dB
Total Harmonic Distortion (THD) 0.15% - 94 dBSPL, 1 kHz
Special Function / Algorithm Beam forming
3A Algorithm AEC, ANS, AGC

Speaker

Rated Power 3 W
Maximum Output Loudness 81 dBSPL - 1 m, 1 kHz
Speaker Range Up to 8 m radius
Effective Bandwidth (-10 dB) 150 Hz ~ 15 kHz
Total Harmonic Distortion (THD) <1% - 1 kHz
Sensitivity 76 dB - 1 m, 1 W
Dimension 45 mm
Maximum Displacement 2 mm
Rear Cavity Volume 0.14 L
Impedance 4
Direction Omni-directional
F0 260 Hz
Weight 118.5 g

Functions

Audio Function Supports steady noise reduction, such as air conditioner or fan noise, and transient noise reduction, such as falling objects, claps, and footsteps. Supports echo and squeal suppression, anti-reverberation to enhance speech quality and deliver high-quality audio.

LED Indicator Solid white: normally working, Solid red: mute, Green: speaker volume

Communication

Communication Method USB cable
Wired Communication Distance Cable length 2 m

Battery

Capacity 7.2 V / 3700 mAh
Charging Temperature 0 °C to 45 °C (32 °F to 113 °F)
Discharging Temperature -20 °C to 60 °C (-4 °F to 160 °F)
Storage Temperature 0 °C to 35 °C (32 °F to 95 °F) (less than one year)

Interface

Cable USB Type C to Type A
Device Interface USB Type C

Compatibility

System Requirement Windows XP/7/8/10/11, Android 8.1 and above, Linux 4.14 and above, macOS 10.12 and above

General

Power 5 VDC ±5%, max. 4.8 W
Operating Condition -10 °C to 45 °C (14 °F to 113 °F), Humidity 90% or less (non-condensing)
Dimension 142.2 mm × 93.9 mm × 69.2 mm (5.60" × 3.70" × 2.72")
Package Dimension 273 mm × 140 mm × 82 mm (10.75" × 5.51" × 3.23")
Weight Approx. 620 g (1.37 lb)
With Package Weight Approx. 1100 g (2.43 lb)
Color Silver gray

What's in the Box:

• Speakerphone × 1
• USB Cable × 1
• Quick Start Guide × 1
