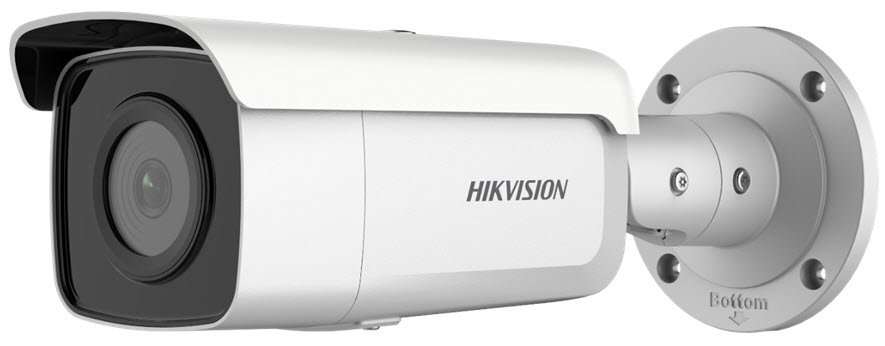

Hikvision DS-2CD2T46G2-4I 1/2.7" Progressive Scan CMOS; H.265+/ H.265/ H.264+/ H.264/ MJPEG; Powered by Darkfighter technology, Color: 0.007 lux @(F1.2, 0.012 lux @(F1.6, AGC ON), 0 lux with IR; 5fps/30fps (2688x1520, 2304x1296, 1920x1080); VCA functions; 3 streams; 3D DNR; BLC; ICR; EX
Features:
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focusing on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)
Specifications:
Product Code DS-2CD2T46G2-4I-6MM
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)
Day & Night ICR Cut
Shutter Speed 1/3 s to 1/100, 000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Lens
Focal Length & FOV 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Aperture F1.4
Lens Mount M12
Iris Type Fixed
DORI
DORI 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
Illuminator
IR Range 4I: Up to 80 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Supplement Light Type IR
Video
Max. Resolution 2688 x 1520
Main Stream 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream 50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression Main Stream: H.265/H.264/H.265+/H.264+
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
SNR 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
On-Board Storage Built-in micro SD slot, up to 256 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
Power Consumption and Current 12 VDC, 0.88 A, max. 10.5 W
PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
Power Interface Ø5.5 mm coaxial power plug
Camera Dimension Ø105 x 289.5 mm (4.1" x 11.4")
Package Dimension 386 x 156 x 155 mm (15.2" x 6.1" x 6.1")
Camera Weight Approx. 1075 g (2.4 lb.)
With Package Weight Approx. 1584 g (3.5 lb.)
Linkage Method Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
Web Client Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter
Software Reset Yes
Firmware Version V5.5.111
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);
LOA (IEC/EN 60950-1)
Environment CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
