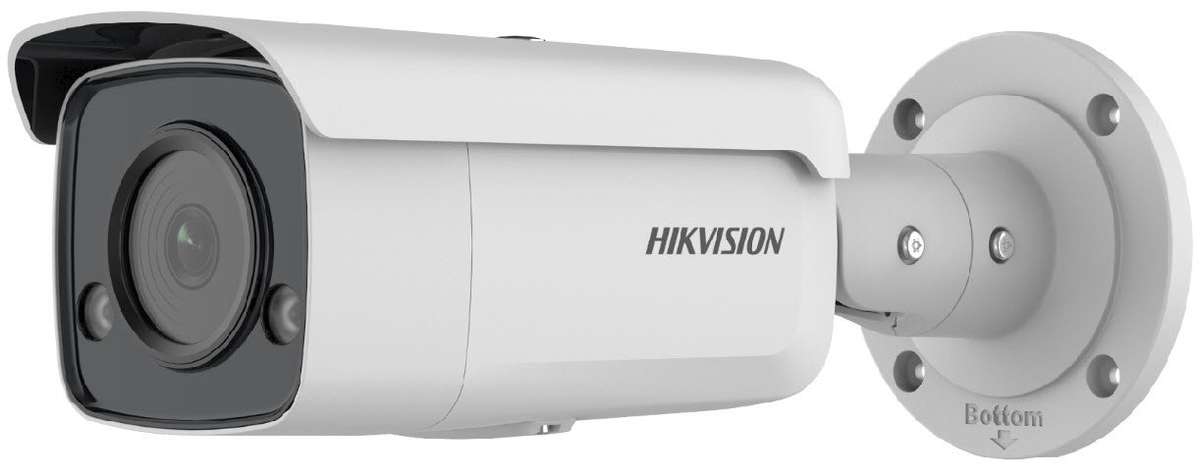

Hikvision DS-2CD2T47G2-L, 1/1.8" Progressive Scan CMOS; H.265+/H.265/H.264+/H.264/MJPEG; Color: 0.0005 lux @(F1.0, AGC ON), 0 lux with LED on; 25fps/30fps(2688x1520, 2304x1296, 1920x1080); VCA functions; 3 streams; 3D DNR; BLC; ICR; 3000K Warm LED; DC12V&PoE; Built-in micro SD/SDHC/SDXC slot, up to 256 GBFeatures:High quality imaging with 4 MP resolutionEfficient H.265+ compression technologyClear imaging against strong backlight due to 130 dB WDR technologyFocus on human and vehicle targets classification based on deep learning24/7 colorful imagingWater and dust resistant (IP67)Specifications:CameraImage Sensor 1/1.8" Progressive Scan CMOSMax. Resolution 2688 x 1520Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white lightShutter Time 1/3 s to 1/100, 000 sAngle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°LensLens Type Fixed focal lens, 6 mm optionalFocal Length & FOV 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°Lens Mount M16Iris Type FixedAperture F1.0Depth of Field 6 mm, 7.5 m to DORIDORI 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 mIlluminatorSupplement Light Type White LightSupplement Light Range 60 mSmart Supplement Light YesVideoMain Stream 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)Sub-Stream 50 Hz: 25 fps (640 x 480, 640 x 360)60 Hz: 30 fps (640 x 480, 640 x 360)Third Stream 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.Video Compression Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.Video Bit Rate 32 Kbps to 8 MbpsH.264 Type Baseline Profile/Main Profile/High ProfileH.265 Type Main ProfileBit Rate Control CBR/VBRScalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 1 fixed region for main stream and sub-streamNetworkProtocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARPSimultaneous Live View Up to 6 channelsAPI Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKUser/Host Up to 32 users. 3 user levels: administrator, operator and userSecurity Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supportedClient iVMS-4200, Hik-Connect, Hik-CentralWeb Browser Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ImageImage Parameters Switch YesImage Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night Switch Auto, ScheduleWide Dynamic Range (WDR) 130 dBSNR 52 dBImage Enhancement BLC, HLC, 3D DNRInterfaceEthernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GBReset Key YesEventBasic Event Motion detection (human and vehicle targets classification), video tampering alarm, exceptionSmart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detectionLinkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send emailDeep Learning FunctionFace Capture YesGeneralPower 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, 36 V to 57 V, 0.30 A to 0.18 A, max. 10.5 WDimension Ø105 mm x 289.5 mm (Ø4.1" x 11.4")Package Dimension 385 mm x 190 mm x 180 mm (15.2" x 7.5" x 7.1")Approx. 1170 g (2.4 lb.)With Package Weight Approx. 1689 g (3.5 lb.)Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counterApprovalEMC FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)Safety UL (UL 60950-1);CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);LOA (IEC/EN 60950-1)Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)Protection IP67 (IEC 60529-2013)
