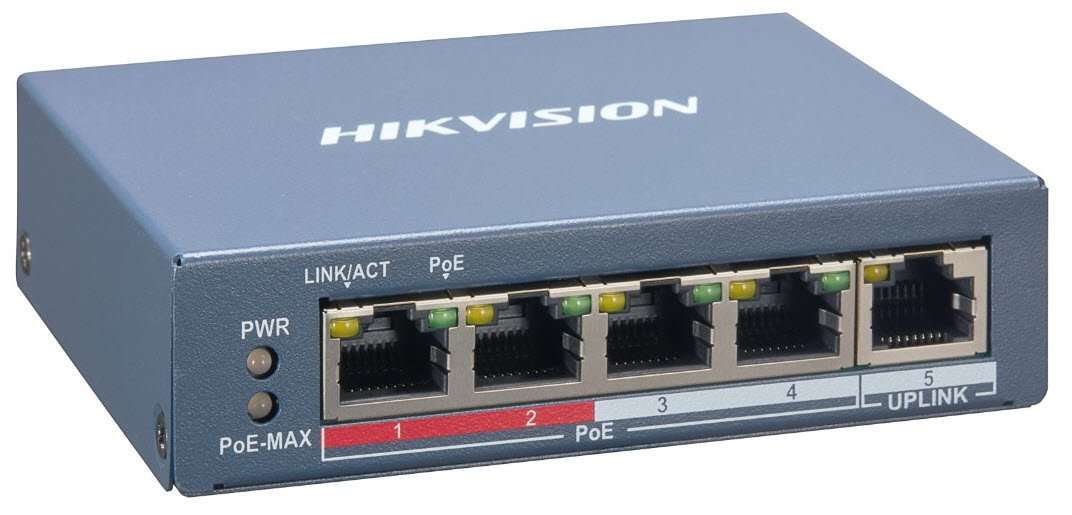

Hikvision DS-3E1105P-EI, L2, Smart Managed, 4 10/100M RJ45 PoE ports, 1 10/100M RJ45 port, 802.3af/at, PoE power budget 60W, Max. 300 meter long distance PoE transmission, Visualized Topology Management, Network Health Monitor, Real-Time Alarm Push and Video Control and Preview
Features:
4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
Specifications:
Network Parameters
Port Number 4 x 100 Mbps PoE RJ45 ports, and 1 x 100 Mbps network RJ45 port.
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode Standard mode (default), Extend mode
Standard IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
Forwarding Mode Store-and-forward switching
MAC Address Table 2 K
Internal Cache 768 Kbits
Switching Capacity 1 Gbps
Packet Forwarding Rate 0.744 Mpps
Operation Management
Device Maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
Port Configuration Support rate, flow control, and switch configuration
General
Dimension (W x H x D) 105 mm x 27.6 mm x 83.1 mm (4.76" x 3.47" x 1.09")
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Power Source 65 W
Net Weight 0.22 kg (0.49 lb)
Power Consumption in Idle 65 W
Shell Metal material, fan-free design
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 5% to 95% (no condensation)
Power Supply 48 VDC, 1.35 A
Max. Power Consumption 65 W
