Hikvision DS-3WRM12GC AC1200 Gigabit Mesh Wi-Fi System

Features:

• AC1200M Dual-band WiFi5 wireless router
• APP Management
• Dual Band in One and 5G First
• Roaming Support
• Hikvision Mesh Supported

Technical Specifications:

General

Installation Mode
Desk-Mounted

Working Temperature
0 °C To 40 °C (32 °F To 104 °F)

Storage Temperature
-40 °C To 70 °C (-40 °F To 158 °F)

Working Humidity
10% To 90% RH Non-Condensing

Storage Humidity
5% To 95% RH Non-Condensing

Packing Method
Single Pack

Physical Specifications

Product Dimensions (W × H × D)
97.58 × 96.26 × 155.19 mm

Package Dimensions (W × H × D)
118 × 118 × 215 mm

Net Weight
0.380 kg

Gross Weight
0.633 kg

Wireless Specifications

Wireless Standards

• IEEE 802.11a/n/ac - 5 GHz
• IEEE 802.11b/g/n - 2.4 GHz

Working Frequency Band
2.4 GHz, 5 GHz

Maximum Wi-Fi Speed
Up To 1200 Mbps

Wireless Speed

• 5 GHz: 866 Mbps
• 2.4 GHz: 300 Mbps

Wireless Range
Up To 120 m² (1300 ft² Recommended Coverage)

Maximum Connections
128

Recommended Connections
40

Transmitting Power

• < 20 dBm (2.4 GHz)
• < 23 dBm (5 GHz)

Wireless Features
Dual Band Supported

Antenna Configuration
4 × High-Gain Antennas

Antenna Gain
5 dBi

Receiving Sensitivity

5 GHz

• -88 dBm - 11AC80-MCS0
• -64 dBm - 11AC80-MCS9

2.4 GHz

• -89.5 dBm - HT40-MCS0
• -70.5 dBm - HT40-MCS7

Hardware Specifications

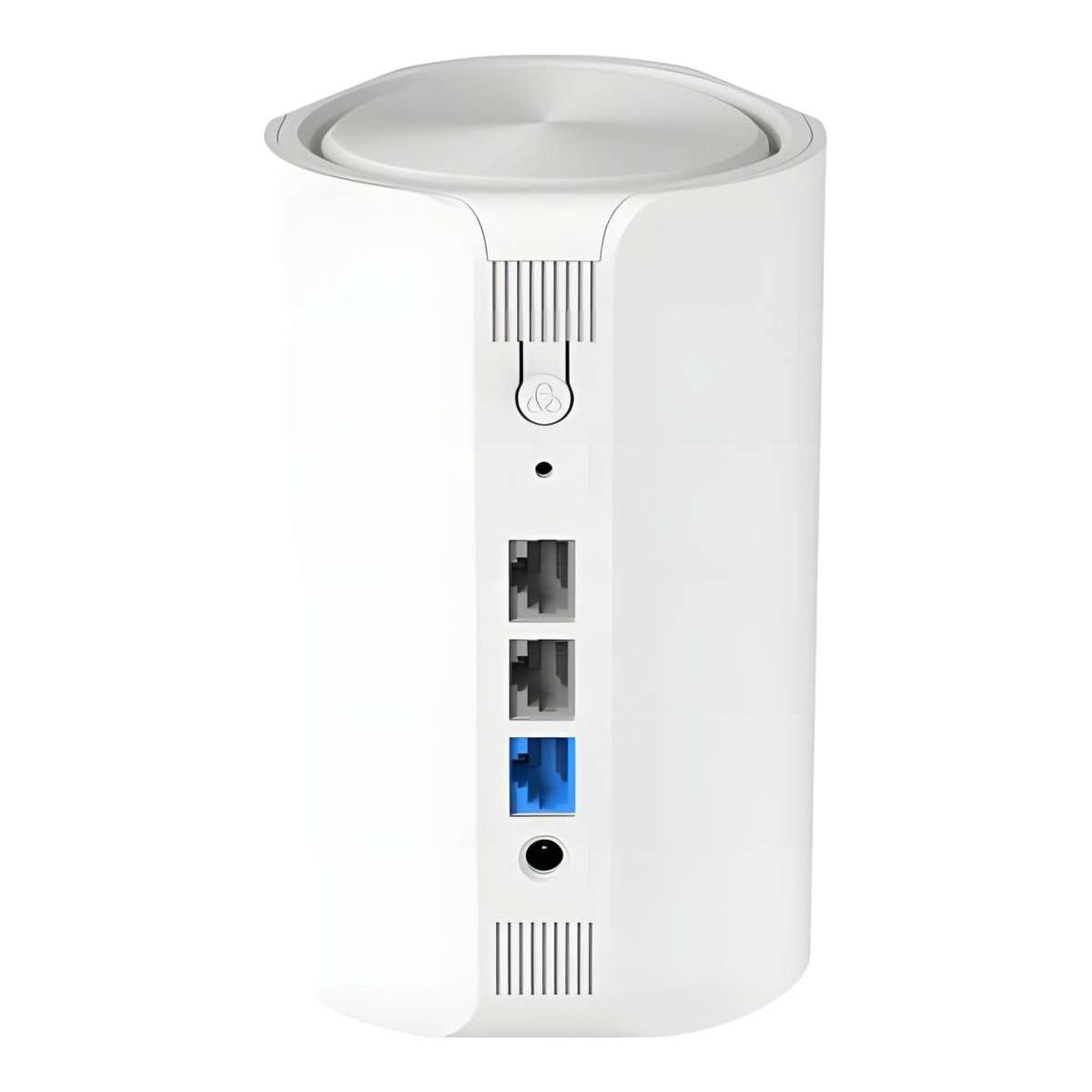

Network Interfaces

• 1 × 10/100/1000 Mbps WAN Port
• 2 × 10/100/1000 Mbps LAN Ports

LED Indicators
Red/Blue/Yellow Status Indicators With Flashing Mode

Buttons

• Reset Button
• WPS/MESH Button

Memory (RAM)
128 MB DDR2

Storage (ROM)
128 MB NAND

Power Supply Method
Power Adapter

Power Specifications
DC 12 V, 1 A

Maximum Power Consumption
12 W

Operating Modes

• Router Mode
• Wireless Extender Mode
• Access Point Mode

WAN Features

WAN Modes

• DHCP
• Static IP
• PPPoE

DHCP Features

• DHCP Client List
• DHCP Server

IP Version Support

• IPv4
• IPv6

Security And Network Features

Security Modes

• WPA2-PSK
• WPA/WPA2-PSK

Security Mechanisms

• WPS Fast Secure Connection
• Hidden Wireless Network Name
• Terminal Network Access Control
• Firewall Support
• Login Authentication

Firewall Protection

• TCP SYN Flood Protection
• ICMP Flood Protection

Parental Control Features

• Speed Limit
• Internet Access Period
• URL Filtering
• Custom Profiles

VPN Support

• PPTP Server
• L2TP Server
• PPTP Client
• L2TP Client

DDNS Support

• Oray
• No-IP
• DynDNS

NAT Forwarding

• Port Mapping
• DMZ
• UPnP

Mesh Support
Hikvision Mesh

Roaming Support
802.11k/v

Additional Features

• VLAN/IPTV Support
• Wi-Fi Optimization
• Quick Diagnosis

Management And Control

Management Methods

• Web Control (PC, Mobile)
• App Control (HPP, HC)
• TR069 (TR098/TR181)

Upgrade Methods

• Web Upgrade
• App Cloud Upgrade
• Auto Upgrade

System Logging
System Log

What's in the Box:

• 1200 Mbps Wi-Fi 5 Router
• Power Supply Adapter
• CAT5e Network Cable
• Quick Start Guide
• Regulatory Compliance And Safety Information
• Product Flyer
