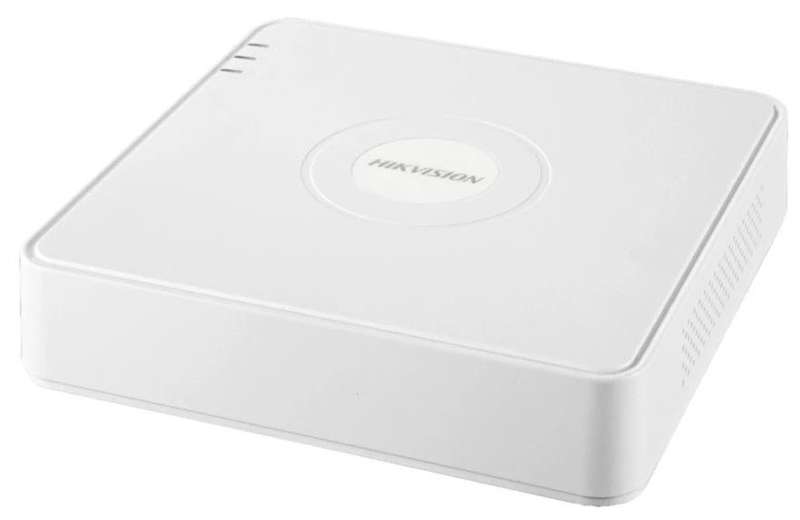

Hikvision DS-7104NI-Q1/4P 40Mbps Bit Rate Input Max (up to 4-ch IP video) 1 SATA interface, 4 independent PoE network interfaces, mini 1U case(Plastic)
Features:
Up to 4 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 6 MP high-definition live view, storage and playback
Up to 4-ch @ 1080p decoding capacity
Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDD for continuous video recording
Compatible with third-party network cameras.
Specifications:
Video and Audio
IP video input 4-ch, Up to 4 MP resolution
Video resolution 6MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Incoming/outgoing bandwidth 40 Mbps, 60 Mbps
VAG/HDMI output 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Decoding
Recording resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding format H.265+/H.265/ H.264+/H.264
Synchronous playback 4-ch
Capability 1-ch @ 6 MP / 4-ch @ 1080p
Network
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Network interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Hard disk
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
External interface
USB interface 2 x USB 2.0
General
Power supply 12 VDC, 18W
Consumption (without HDD) 10 W
Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Dimensions (W x D x H) 200 x 205 x 48 mm (7.9" x 8.1" x 1.9")
Weight (without hard disk) 1 kg (2.2 lb)
Chassis 1U chassis
