Video/Audio Input | |
IP video input | 4-ch |
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Network Incoming bandwidth Outgoing bandwidth Remote connection |
40Mbps 80Mbps 128 |
Video/Audio Output HDMI/VGA Output Audio Output |
1-ch, resolution 1-ch, RCA (Linear, 1kΩ) |
Decoding Live view / Playback Capability |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF 4-ch@1080P |
Hard Disk SATA Capacity |
1 SATA interface for 1 HDD Up to 6TB capacity for each HDD |
External Interface Network Interface USB Interface Alarm In Alarm Out |
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface 1 × USB 2.0 and 1 × USB 3.0 4-ch 1-ch |
POE - Interface Max. Power |
4 independent 100 Mbps PoE network interfaces 50W |
General Power Supply Dimensions Weight(without HDD) |
48V DC 315 × 230 × 45mm (12.4 ×9.1 × 1.8 inch) ≤ 1 Kg (2.2 lb) |

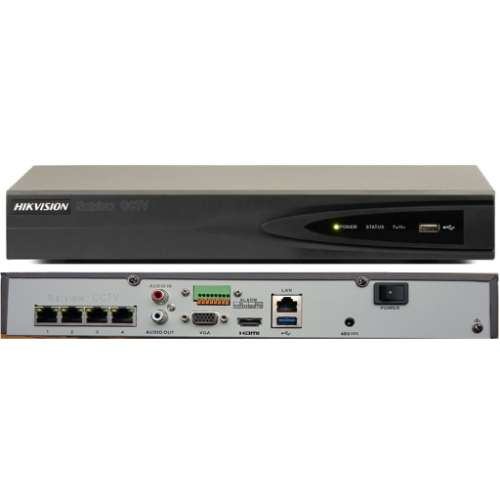

Embedded Plug & Play NVR |
|
