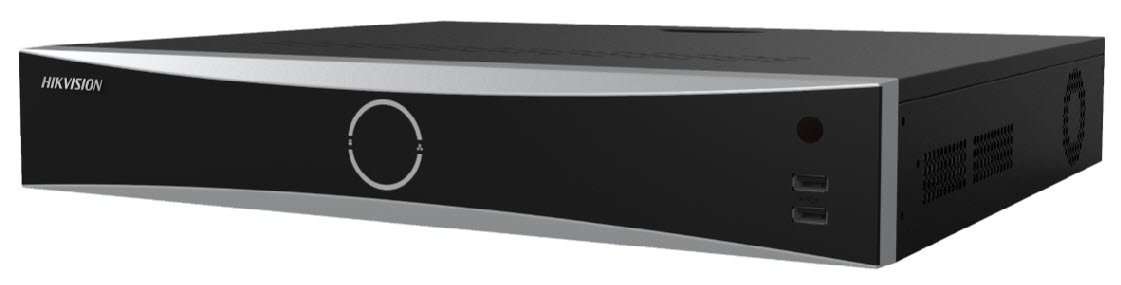

Hikvision DS-7732NXI-I4/S, 256Mbps Bit Rate Input Max(up to 32-ch IP video), 4 SATA Interfaces, 2 HDMI ouputs, 1 VGA port, 1 CVBS output, 1 eSATA, alarm I/O: 16/4, 1.5U case, 19"
Features:
H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 16-ch 1080p decoding capability
Up to 256 Mbps incoming bandwidth
Specifications:
System Parameter
Video input channel 32
Incoming bandwidth 256 Mbps
Outgoing bandwidth 256 Mbps
Video resolution 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Video Parameter
Video output 2-ch HDMI, 1-ch VGA
HDMI output HDMI1 output: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI2/VGA independent output
VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
CVBS output 1-ch, BNC (1.0 Vp-p, 75 ), resolution: PAL: 704 x 576, NTSC: 704 x 480
Live view window division 1/4/6/8/9/16/25/32/36
Aux port window division 1/4/6/8/9/16/25/32/36
Video decoding format H.265;H.265+;H.264;H.264+;MPEG4
Decoding capability 16-ch @ 1080p (30 fps)
Synchronous playback 16-ch
Smart Analysis
Face picture library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture 512 KB, total capacity 150 MB)
List library capacity 1w
List library 16
Face picture comparison 4-ch face picture comparison alarm
Face capture 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Audio Parameter
Audio decoding format G.711ulaw;G.711alaw;G.722;G.726;MP2L2
Audio output 1-ch, RCA (Linear, 1 K)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 K)
HDD Management
HDD No. 4 SATA interfaces
Extended storage 1 eSATA interface
Recording Management
Playback mode Normal/Smart, Event, Tag, Eternal File
External Port
Network interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial port RS-485 (half-duplex), RS-232, Keyboard
USB interface Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm input/output 16/4
General Standard
Power 80W
Consumption (without HDD) 30W
Working temperature -10°C~+55°C
Working humidity 10%~90%
Chassis 1.5U
Dimension 445 x 400 x75 mm ( 17.5"x 15.7" x 3.0")
Weight (without HDD) 5.6 kg (12.3 lb)
