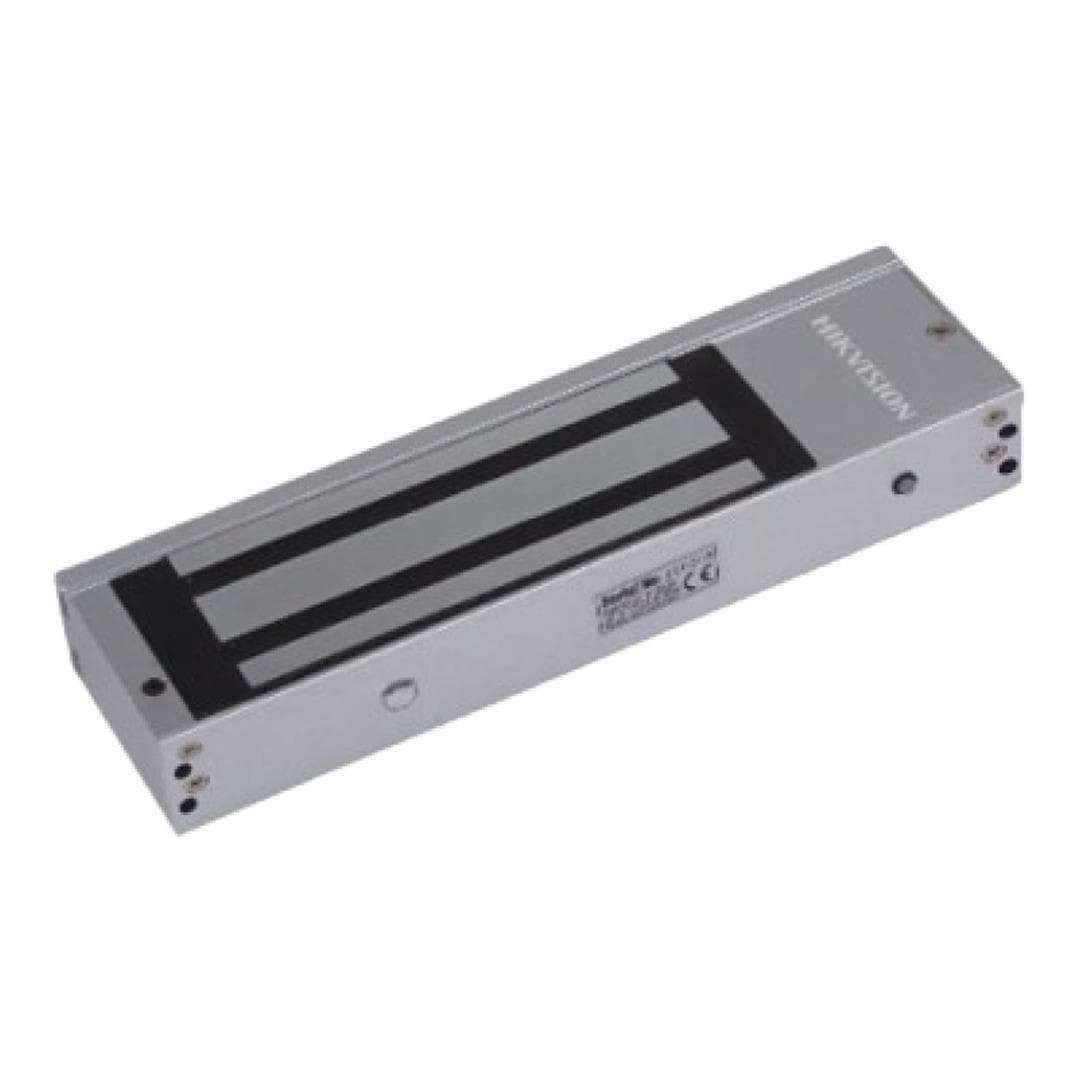

Hikvision DS-K4H450S Pro Series Magnetic Lock

Pro Series Magnetic Lock

• Magnetic lock supports static linear thrust of 500kg
• Power supply can be 12 VDC or 24 VDC + 10% (default voltage is 12 VDC)
• Suitable for wooden door, glass door and metal door
• LED indicator displays door lock status
• Signal output of door lock status

Specifications:

Indicator: Green: Locked / Red: Unlocked

Power supply

• 12/24 VDC + 10%
• 12 VDC, 420 mA
• 24 VDC, 210 mA

Dimensions

• Lock Body: 265 mm × 71.8 mm × 38.8 mm
• Armature Plate: 185 mm × 60 mm × 13 mm
• 4.5 kg

Signal output: Dry Contact Signal Output; Support Maximum Power Rate of 3 A, NO Output While Locking and NC Output While Unlocking

Thrust: 500 kg

Door type: Wooden Door, glass door, metal Door

Magnetic Lock/General

Maximum holding force: 500kg

Suitable door: Wooden Door, Glass Door, Metal Door
