Description:

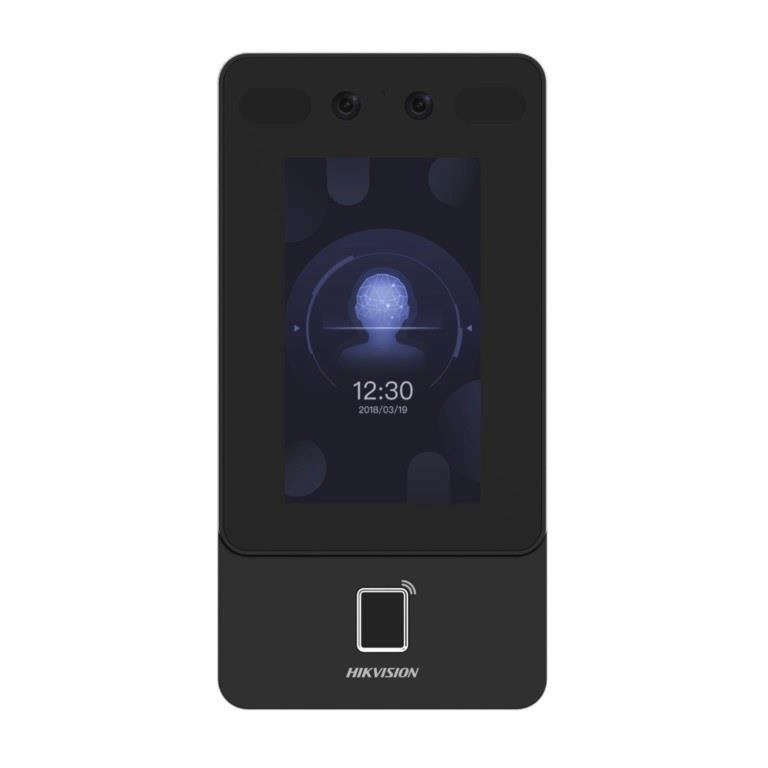

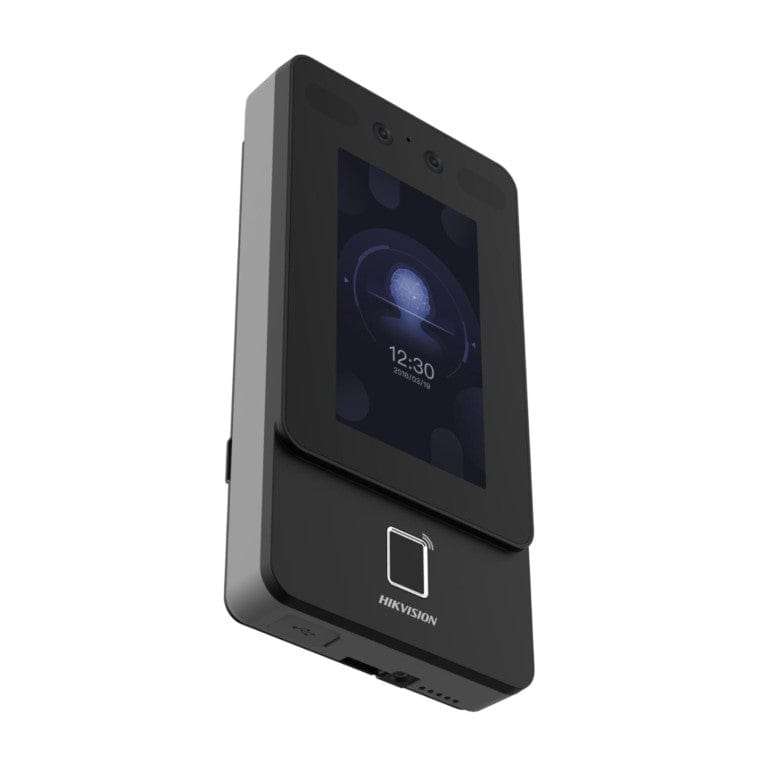

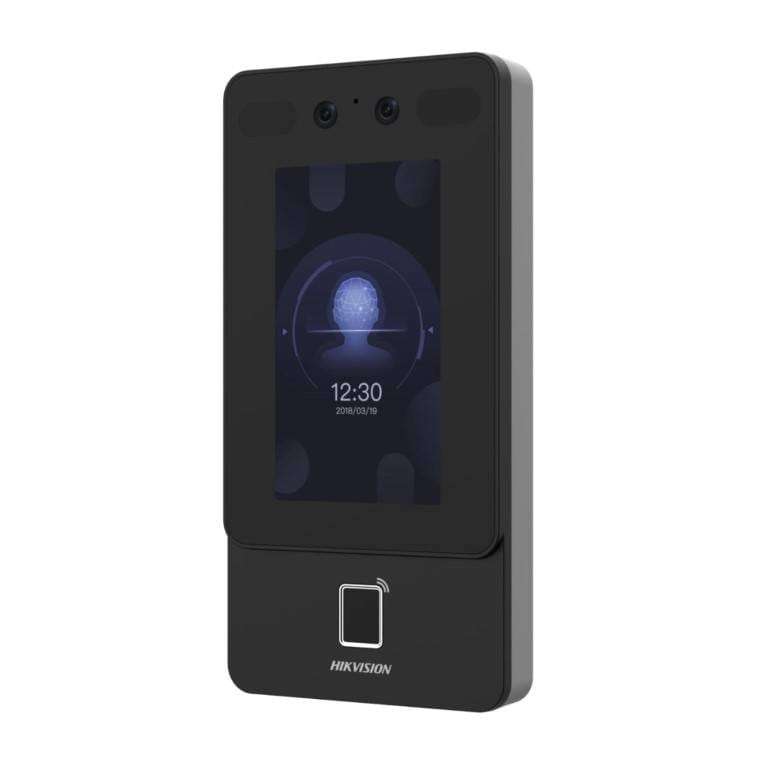

Hikvision Face Recognition Access Control Terminal with Fingerprint Reader DS-K1T342MFWX-E1
Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card/fingerprint authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.
Features
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate 99%
Supports face with mask recognition
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports platform-applied personal PIN and device-set personal PIN
Technical Specification
System
Operation System: Linux
Display
Dimensions: 4.3-inch
Resolution: 272 x 480
Type: LCD
Operation Method: Capacitive touch screen
Video
Pixel: 2MP
Lens: 2x
Video Standard: PAL (Default) and NTSC
Network
Wired Network: 10/100Mbps self-adaptive
Wi-Fi: Support
Interface
PoE: IEEE802.3at, standard PoE
Network Interface: 1
RS-485: 1
Wiegand: 1
Lock Output: 1
Exit Button: 1
Door Contact Input: 1
TAMPER: 1
USB: 1
Capacity
Card Capacity: 3,000
Face Capacity: 1,500
Fingerprint Capacity: 3,000
Event Capacity: 150,000
Authentication
Card Type: M1 card
Card Reading Frequency: 13.56 MHz
Face Recognition Duration:＜ 0.2 s
Face Recognition Accuracy Rate:�99%
Face Recognition Distance: 0.3 to 1.5 m
Fingerprint Recognition Duration:＜1 s
General
Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
Dimensions: 91.3 mm x 181.3 mm x 24.5 mm
Installation: Wall Mounting
Protective Level: IP65
Function
Face Anti-Spoofing: Support
Audio Prompt: Support
Time Synchronization: Support
