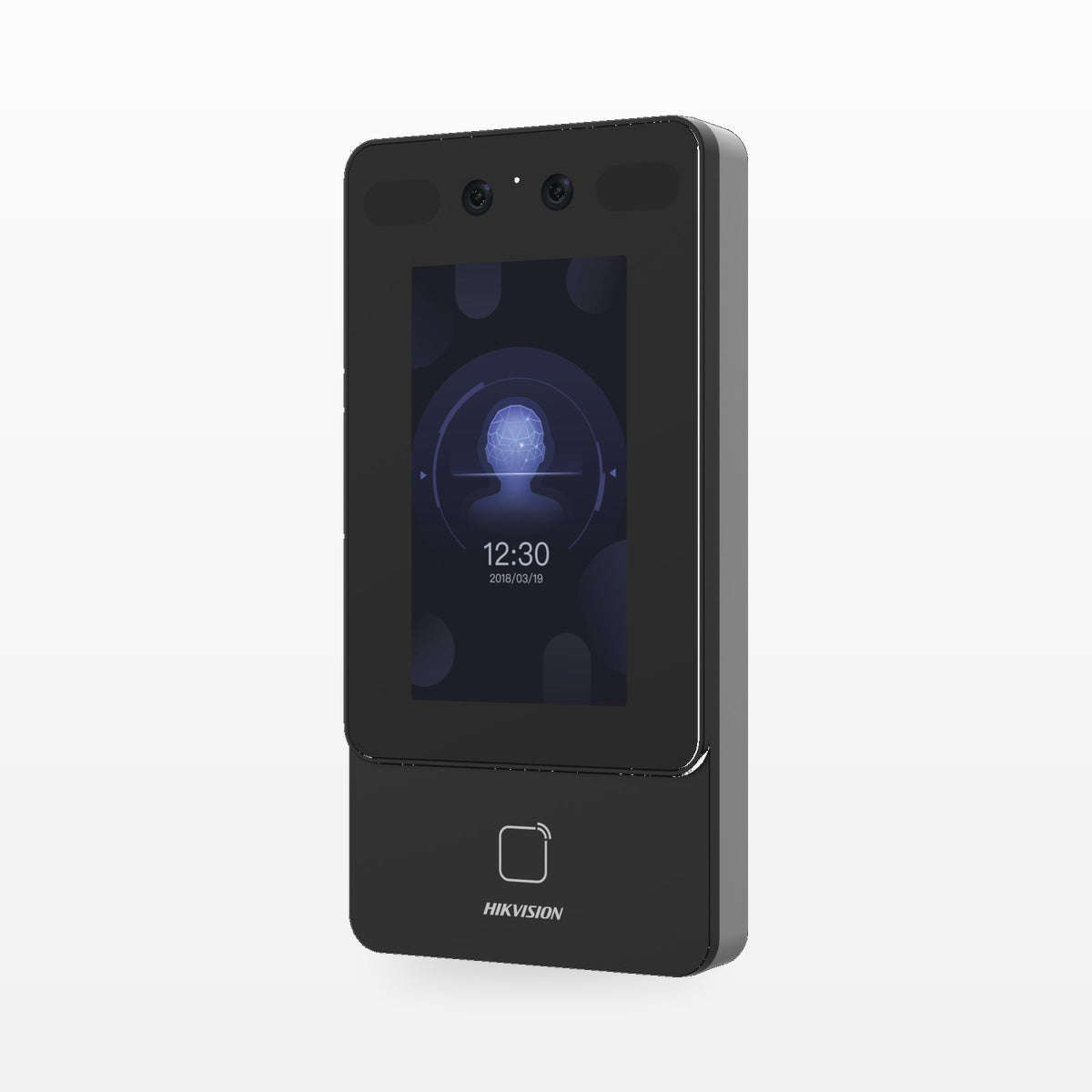

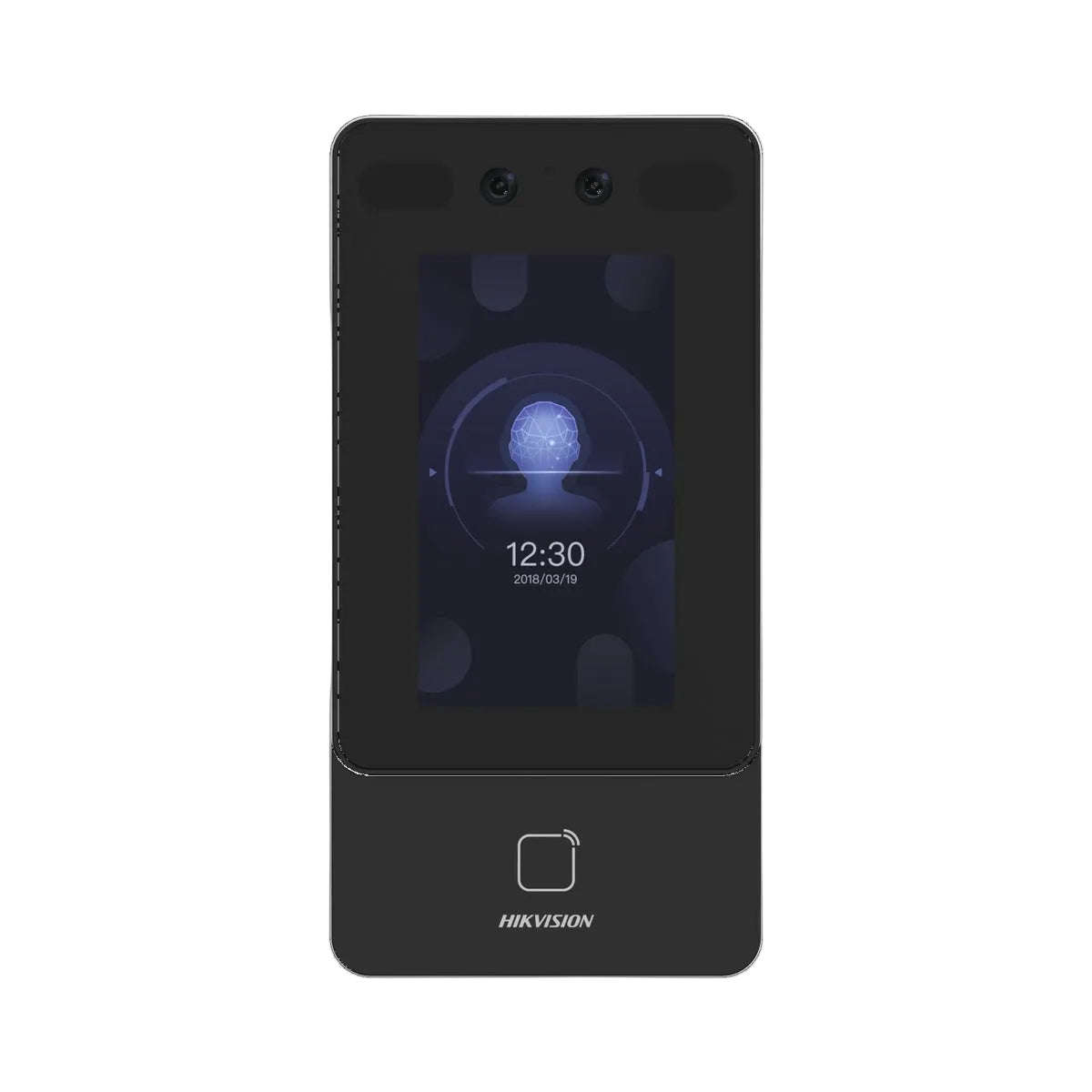

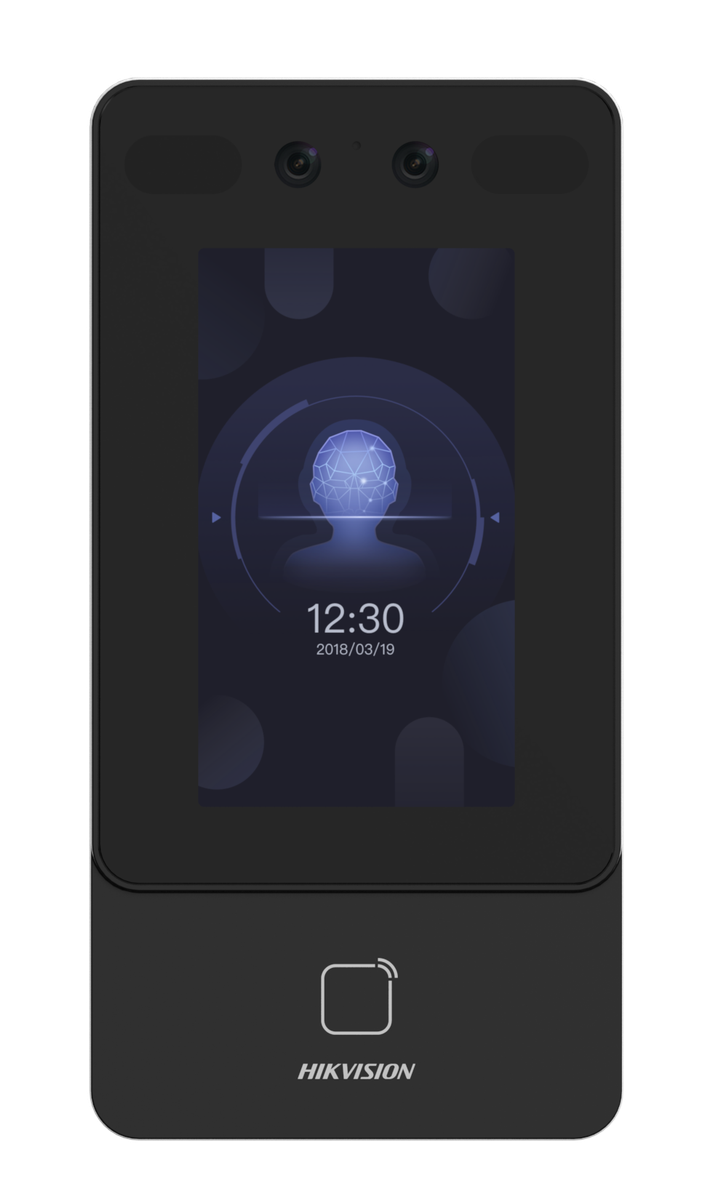

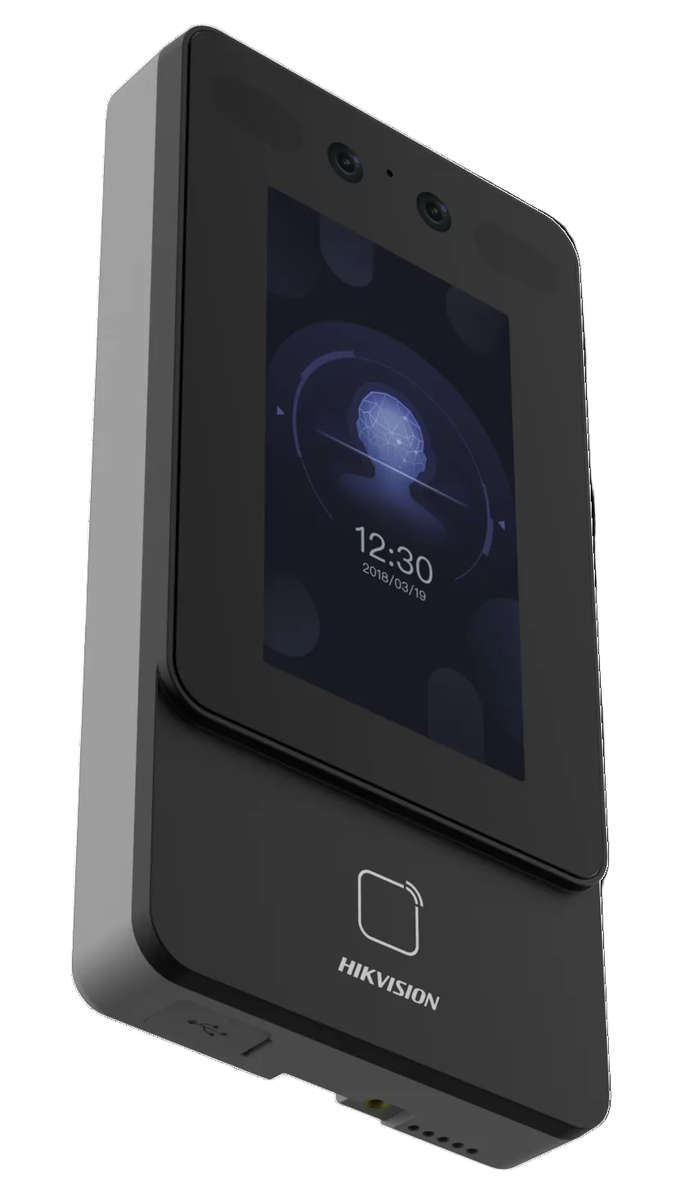

Hikvision DS-K1T342MWX-E1 Face Recognition Terminal

The Hikvision DS-K1T342MWX-E1 is a professional face recognition access control terminal designed for secure and convenient entry management in offices, residential complexes, commercial buildings, schools, warehouses, estates, financial environments, and other access-controlled areas. Built with advanced face recognition technology, a 4.3-inch touch screen, card authentication, Wi-Fi, and PoE support, this terminal offers a smart and efficient solution for modern access control installations.

With capacity for up to 1,500 faces and 3,000 M1 cards, the DS-K1T342MWX-E1 is suitable for small to medium access control systems where fast and accurate user verification is required. The device supports multiple authentication methods, including face recognition and card access, giving users flexible entry options depending on the site requirements.

The terminal features a 2MP dual-lens camera and supports face recognition from 0.3m to 1.5m, with a recognition duration of less than 0.2 seconds per user and an accuracy rate above 99%. It also supports mask recognition, helping maintain convenient access control in environments where masks may be used.

Built-in two-way audio allows communication through compatible client software, indoor stations, or main stations. The terminal also supports TCP/IP and Wi-Fi connectivity, as well as ISAPI and ISUP 5.0 protocols for system integration. With PoE support, the device can be powered through a network cable, simplifying installation and reducing cabling requirements.

The DS-K1T342MWX-E1 includes practical access control interfaces such as RS-485, Wiegand, lock output, exit button input, door contact input, tamper input, and USB. Its IP65-rated protection makes it suitable for covered indoor and outdoor access points when installed correctly.

Key Features

• Face recognition access control terminal

• 4.3-inch LCD capacitive touch screen

• 2MP dual-lens camera

• Built-in M1 card reading module

• Supports up to 1,500 face users

• Supports up to 3,000 M1 cards

• Stores up to 150,000 events

• Face recognition distance: 0.3m to 1.5m

• Face recognition duration: less than 0.2 seconds per user

• Face recognition accuracy rate above 99%

• Supports face and card authentication

• Supports mask recognition

• TCP/IP and Wi-Fi communication support

• Standard PoE power support

• Two-way audio support

• Configuration via web client

• Supports ISAPI and ISUP 5.0

• RS-485 and Wiegand interface

• Lock output, exit button input, door contact input, and tamper input

• USB interface

• IP65 protective rating

• Compatible with Hik-ProConnect and HikCentral Professional

Ideal For

• Office access control

• Residential complexes and estates

• Apartment buildings

• Commercial buildings

• Schools and campuses

• Warehouses and staff entrances

• Retail and business premises

• Financial and high-security environments

• Time and attendance applications

• Sites requiring contactless access control

Technical Specifications

• Brand: Hikvision

• Model: DS-K1T342MWX-E1

• Product Type: Face Recognition Access Control Terminal

• Operating System: Linux

• Display: 4.3-inch LCD touch screen

• Screen Resolution: 272 × 480

• Camera: 2MP dual lens

• Card Type: M1 card

• Card Frequency: 13.56MHz

• Face Capacity: 1,500

• Card Capacity: 3,000

• Event Capacity: 150,000

• Face Recognition Distance: 0.3m to 1.5m

• Face Recognition Duration: Less than 0.2 seconds

• Network: 10/100Mbps self-adaptive Ethernet, Wi-Fi

• Communication Protocol: ISAPI, ISUP 5.0

• Interfaces: RS-485, Wiegand, lock output, exit button, door contact, tamper, USB

• Power Input: 12V DC / PoE

• Protective Level: IP65

• Working Temperature: -30°C to 60°C

• Working Humidity: 0% to 90%, non-condensing

• Dimensions: 91.3mm × 181.3mm × 24.5mm

• Installation: Wall mounting

Why Choose the Hikvision DS-K1T342MWX-E1?

The Hikvision DS-K1T342MWX-E1 is a smart and practical access control terminal for users who need fast, secure, and contactless entry management. With face recognition, card authentication, Wi-Fi, PoE, two-way audio, event storage, and IP65 protection, it provides a complete access control solution for modern residential, commercial, and business environments.

Installation Note

Professional installation is recommended to ensure correct mounting height, face recognition angle, network setup, PoE or 12V power connection, lock wiring, exit button wiring, door contact setup, user enrolment, and platform configuration.
