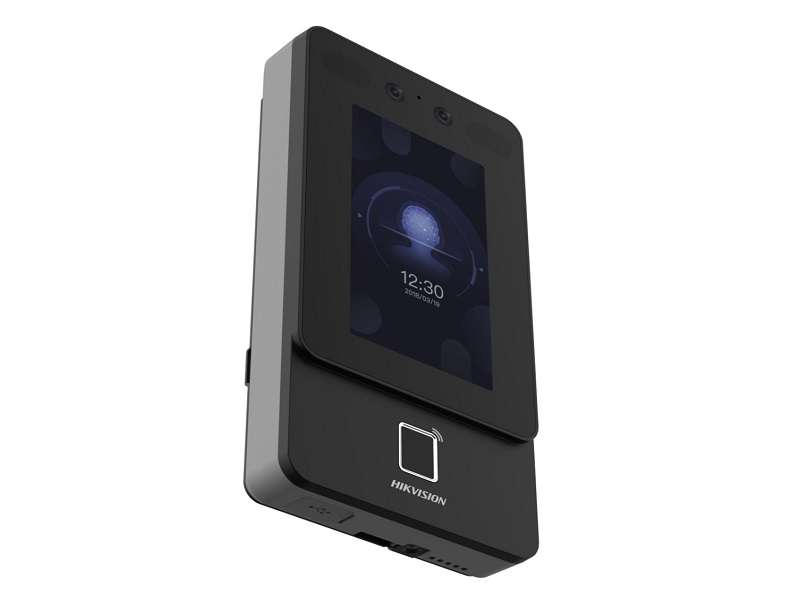

Face Recognition Terminal
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m; Duration `a3`bc 0.2 s/User; Accuracy rate 99%
Supports face with mask recognition
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports platform-applied personal PIN and device-set personal PIN
System
Operation System
Linux
Display
Dimensions
4.3-inch
Resolution
272 `d7 480
Type
LCD
Operation Method
Capacitive touch screen
Video
Pixel
2 MP
Lens
`d7 2
Video Standard
PAL (Default) and NTSC
Network
Wired Network
10 M/100 M self-adaptive
Wi-Fi
Support
Interface
PoE
IEEE802.3at, standard PoE
Network Interface
1
RS-485
1
Wiegand
1
Lock Output
1
Exit Button
1
Door Contact Input
1
TAMPER
1
USB
1
Capacity
Card Capacity
3,000
Face Capacity
1,500
Fingerprint Capacity
3,000
Event Capacity
150,000
Authentication
Card Type
M1 card
Card Reading Frequency
13.56 MHz
Face Recognition Duration
`a3`bc 0.2 s
Face Recognition Accuracy Rate
`a3`be99%
Face Recognition Distance
0.3 to 1.5 m
Fingerprint Recognition Duration
`a3`bc1 s
General
Power Supply
Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
Working Temperature
-30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
Working Humidity
0 to 90% (No condensing)
Dimensions
91.3 mm `d7 181.3 mm `d7 24.5 mm (3.59" `d7 7.14" `d7 0.96")
Installation
Wall Mounting
Protective Level
IP65
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Weight
Gross weight: 0.93 kg (2.05 lbs)
Net weight: 0.36 kg (0.79 lbs)
Function
Face Anti-Spoofing
Support
Audio Prompt
Support
Time Synchronization
Support
