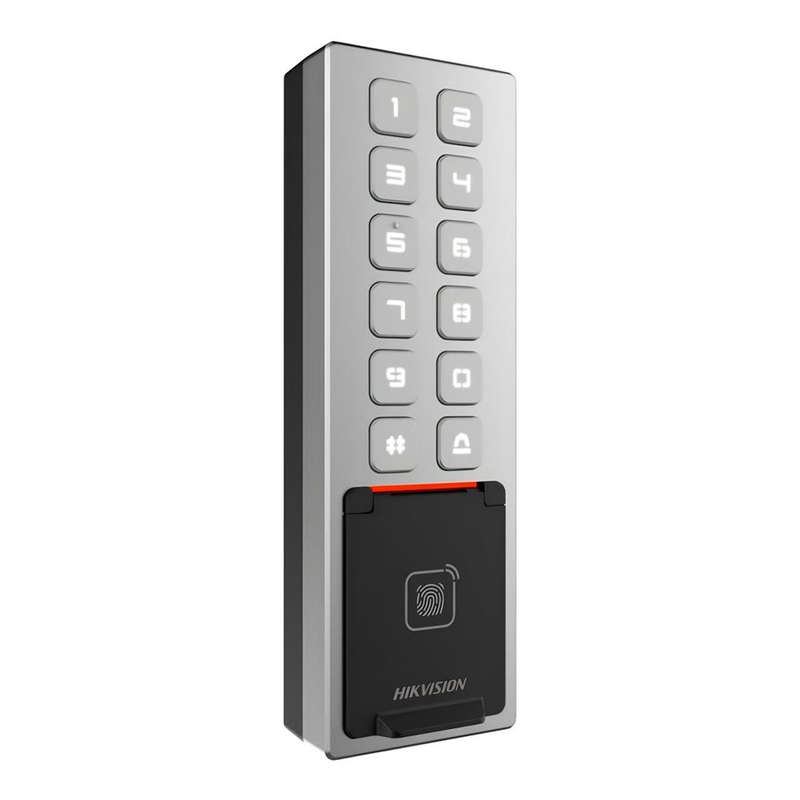

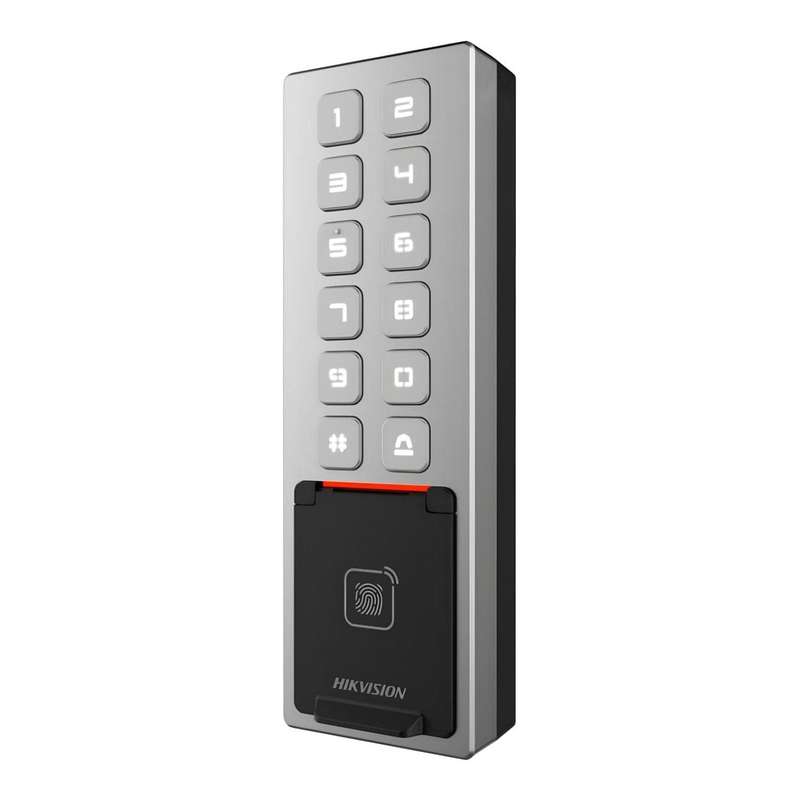

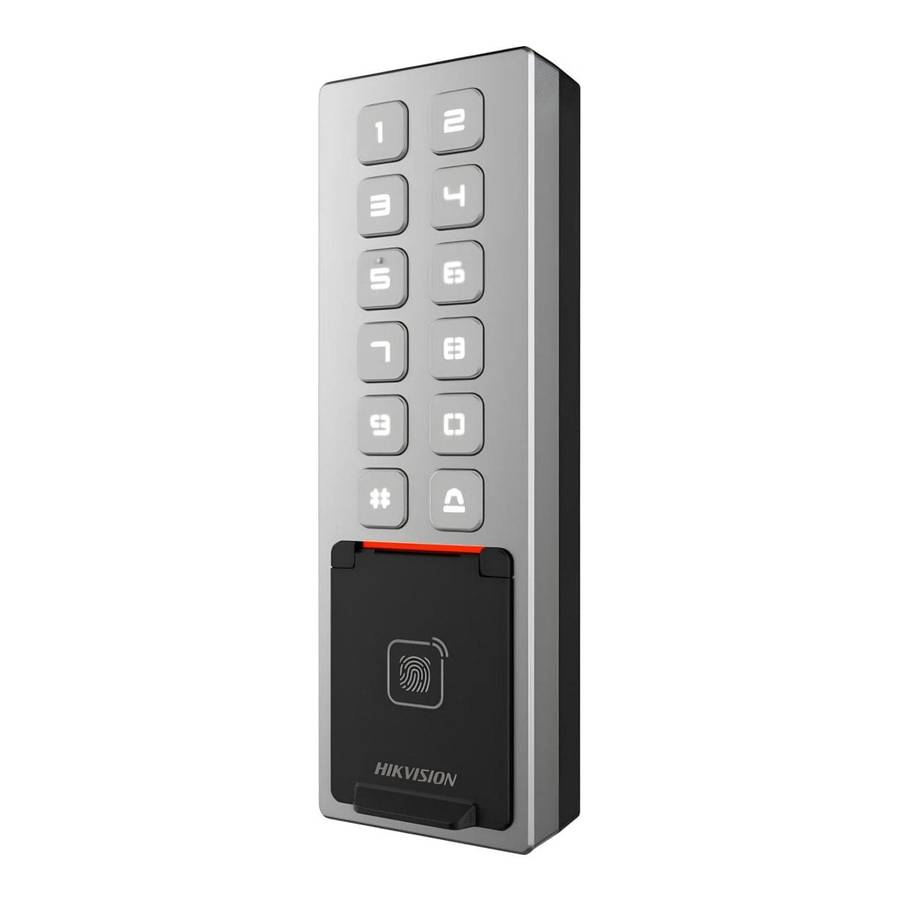

Hikvision Fingerprint Access Control Terminal with Wi-Fi DS-K1T805MBFWX

Features

• High protective level: IP65 and IK08
• Slim and flexible design with metal
• 3,000 fingerprints, 10,000 cards and 100,000 events storage
• Built-in card reader for M1 card
• Supports operation by mobile App (Hik-Connect)
• Supports AP configuration, configuration via PC web and mobile web are available
• Supports multiple authentication types: card, fingerprint, PIN, and bluetooth

Technical Specification

System

• Operating system: Linux

Audio

• Audio output: 1 built-in buzzer

Network

• Bluetooth: Support
• Wired network: 10/100 Mbps self-adaptive
• Wi-Fi: 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i

Interface

• RS-485: 1, supports OSDP
• Network interface: 1
• Wiegand: Wiegand 26/34
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• Alarm input: 2
• Alarm output: 1
• TAMPER: 1

Capacity

• Card capacity: 10,000
• Fingerprint capacity: 3,000
• Event capacity: 100,000

Authentication

• Card type: M1 card
• Card reading distance: 0 to 4 cm
• Card reading duration: <1 s
• Fingerprint module: Optical fingerprint module
• Fingerprint comparing mode: 1:1 and 1:N
• Fingerprint recognition duration: <1 s

General

• Power supply: 12 VDC/1 A
• Dimensions: 57.7 mm × 177 mm × 34.6 mm
• Power consumption: 12 W

Function

• Hik-Connect: Support
• Configuration via Web Browser: Support PC web configuration and mobile web operation
