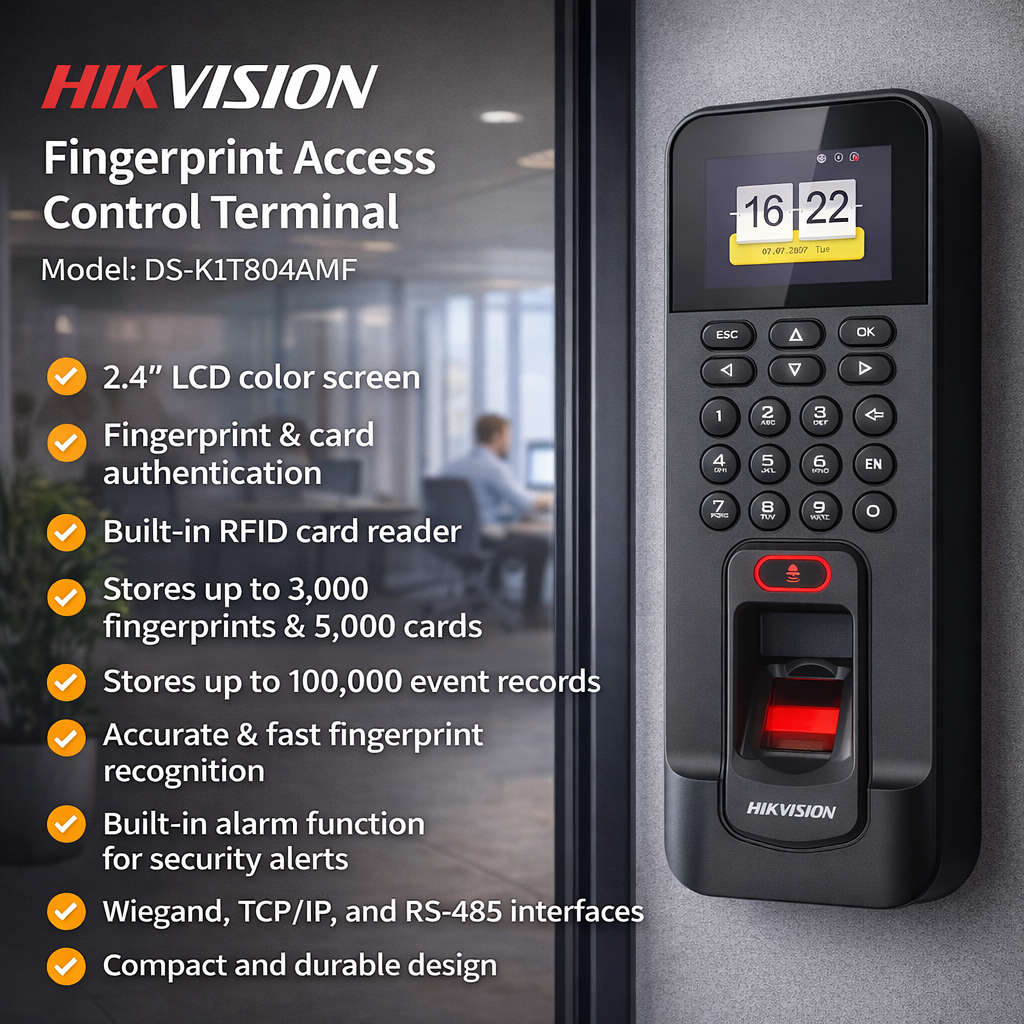

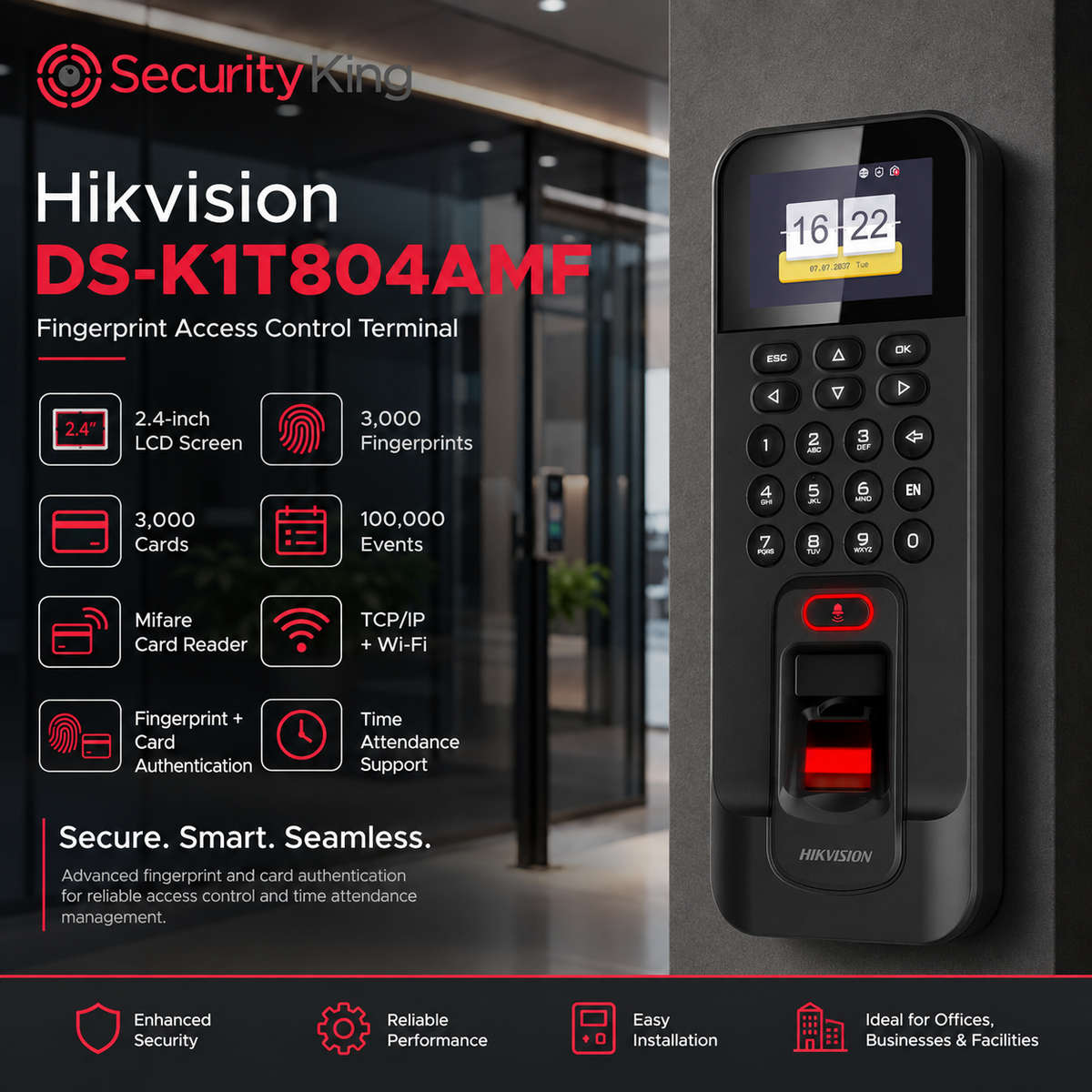

Hikvision Fingerprint Access Control Terminal

Hikvision DS-K1T804AMF Fingerprint Access Control Terminal

The Hikvision DS-K1T804AMF is a professional fingerprint access control and time attendance terminal designed for secure and efficient entry management. It is ideal for offices, staff entrances, warehouses, schools, retail stores, factories, residential complexes, and commercial buildings where reliable user authentication is required.

The terminal supports multiple verification methods, including fingerprint, Mifare card, and access control authentication through compatible system configuration. With capacity for up to 3,000 fingerprints, 3,000 cards, and 100,000 event records, it is suitable for small to medium-sized access control and attendance applications.

The built-in 2.4-inch LCD-TFT display shows time, date, and authentication results clearly, while the integrated loudspeaker and buzzer provide user feedback during operation. The optical fingerprint module supports both 1:1 and 1:N fingerprint comparison, with fingerprint recognition completed in less than 1 second.

For connectivity, the DS-K1T804AMF supports TCP/IP wired network and Wi-Fi, allowing flexible installation depending on site requirements. It also includes RS-485, Wiegand, lock control, exit button, door contact input, alarm input, alarm output, tamper input, and USB interfaces, giving installers strong integration options for access control systems.

The unit can also support attendance management functions, including shift configuration and attendance report export via USB flash drive, making it practical for businesses that require both door access control and staff attendance tracking.

Key Features

• Fingerprint access control terminal

• Built-in 2.4-inch LCD-TFT display

• 320 × 240 screen resolution

• Optical fingerprint module

• Built-in Mifare 1 card reader

• Supports up to 3,000 fingerprints

• Supports up to 3,000 cards

• Stores up to 100,000 event records

• Fingerprint recognition duration: less than 1 second

• Card reading duration: less than 1 second

• Card reading distance: 0 to 4.5cm

• TCP/IP wired network support

• Wi-Fi communication support

• RS-485 and Wiegand interface

• Lock control output

• Exit button input

• Door contact input

• Alarm input and alarm output

• Tamper input

• USB interface for data export

• Loudspeaker and buzzer feedback

• Power/status indicator

• Supports access control and time attendance functions

• Surface-mount installation

Ideal For

• Office access control

• Staff attendance systems

• Warehouses and factories

• Retail stores

• Schools and campuses

• Residential complexes

• Commercial buildings

• Secure staff entrances

• Small to medium business access control

• Sites requiring fingerprint and card verification

Technical Specifications

• Brand: Hikvision

• Model: DS-K1T804AMF

• Product Type: Fingerprint Access Control Terminal

• Display: 2.4-inch LCD-TFT screen

• Resolution: 320 × 240

• Fingerprint Module: Optical fingerprint module

• Fingerprint Capacity: 3,000

• Card Capacity: 3,000

• Event Capacity: 100,000

• Card Type: Mifare 1 card

• Card Reading Distance: 0 to 4.5cm

• Fingerprint Comparison Mode: 1:1 and 1:N

• Fingerprint Recognition Time: Less than 1 second

• Network: TCP/IP, 10/100Mbps self-adaptive

• Wi-Fi: Supported

• Interfaces: Network, RS-485, Wiegand, lock control, exit button, door contact, alarm input, alarm output, tamper, USB

• Audio Output: 1 loudspeaker, 1 buzzer

• Indicator: Power/status red and green indicator

• Power Supply: 12V DC / 1A

• Working Temperature: -10°C to 55°C

• Working Humidity: 10% to 90%, non-condensing

• Dimensions: 205 × 76.5 × 37mm

• Installation: Surface mounting

• Colour: Black as standard, with optional colours depending on availability

Why Choose the Hikvision DS-K1T804AMF?

The Hikvision DS-K1T804AMF is a strong choice for users who need a reliable biometric access control terminal with fingerprint, card, Wi-Fi, TCP/IP, attendance, and door-control functionality in one compact device. Its large user capacity, quick recognition speed, event storage, and flexible wiring interfaces make it suitable for professional access control installations.

Installation Note

Professional installation is recommended to ensure correct mounting, power connection, lock wiring, exit button setup, door contact connection, network configuration, fingerprint enrolment, card registration, attendance setup, and system integration.
